Anatomy and Protection of the Nervous System: CNS and PNS

Anatomy and Protection of the Nervous System

Overview of the Nervous System

The nervous system is divided into the Central Nervous System (CNS) and the Peripheral Nervous System (PNS). The CNS consists of the brain and spinal cord, while the PNS includes cranial nerves, spinal nerves, and sensory organs. These systems work together to process information and coordinate bodily functions.

Protection of the Brain

Bones, Meninges, Cerebrospinal Fluid, and Blood-Brain Barrier

The brain is protected by several structures: the skull bones, three connective tissue membranes called meninges, cerebrospinal fluid (CSF), and the blood-brain barrier. These layers provide mechanical protection, chemical stability, and immune defense for the CNS.

Meninges

The meninges are three connective tissue membranes that cover and protect the CNS, enclose venous sinuses, contain CSF, and form partitions within the skull. The three layers are:

• Dura mater: The strongest, outermost layer, consisting of two fused layers around the brain except where they separate to form dural sinuses.

• Arachnoid mater: The middle, web-like layer, separated from the dura by the subdural space. The subarachnoid space beneath it contains CSF and major blood vessels.

• Pia mater: The innermost, delicate layer that clings tightly to the brain and follows its contours, containing many tiny blood vessels.

The dura mater forms inward extensions called dural septa (falx cerebri, falx cerebelli, tentorium cerebelli) that partition the cranial cavity and limit brain movement.

Recent evidence suggests a possible fourth meningeal membrane, the subarachnoid lymphatic-like membrane (SLYM), which may further compartmentalize the subarachnoid space.

Meningitis is inflammation of the meninges, usually due to infection. Encephalitis is inflammation of the brain itself, often more serious and caused by viral infection or autoimmune issues.

Cerebrospinal Fluid (CSF)

CSF is a clear, colorless liquid that cushions the CNS, provides buoyancy, and serves nutritive and protective roles. It is similar to plasma but contains less protein and different concentrations of ions (more vitamin C, Na+, Cl-, Mg2+, H+; less Ca2+, K+).

• Produced by choroid plexuses in the ventricles of the brain.

• Normal volume is about 150 mL, replaced every 8 hours.

• CSF circulates through the ventricles, subarachnoid space, and central canal of the spinal cord, and is reabsorbed into the venous blood via arachnoid granulations.

Hydrocephalus is an abnormal accumulation of CSF within the brain's ventricles, leading to increased intracranial pressure and potential brain damage.

Blood-Brain Barrier

The blood-brain barrier maintains a stable environment for the brain by restricting the passage of substances from the blood into the CNS. It is composed of:

• Continuous endothelium of capillary walls with tight junctions

• Thick basal lamina with enzymes that destroy certain chemicals

• Astrocyte feet and pericytes that maintain the barrier and stimulate tight junction formation

The barrier is not uniform throughout the brain; it is more permeable in areas such as the choroid plexuses, hypothalamus, and vomiting center. Substances that can cross include glucose, essential amino acids, some electrolytes (via facilitated diffusion), and fat-soluble molecules (e.g., O2, CO2, alcohol, nicotine, anesthetics).

The Spinal Cord

Gross Anatomy and Protection

The spinal cord is enclosed within the vertebral column, extending from the foramen magnum to the level of L1 or L2. It is held in place by the filum terminale and denticulate ligaments (extensions of pia mater). The spinal cord has cervical and lumbar enlargements for limb innervation and terminates in the conus medullaris. The cauda equina is a bundle of nerve roots at the base of the spine.

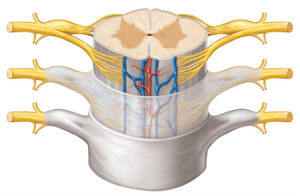

Cross-Sectional Anatomy

The spinal cord is partially divided into right and left halves by the ventral median fissure and dorsal median sulcus. The gray matter is organized into anterior (ventral) and posterior (dorsal) horns, connected by the gray commissure (enclosing the central canal). Lateral horns are present in thoracic and superior lumbar regions and contain sympathetic motor neurons.

Spinal nerves are formed by the fusion of dorsal (sensory) and ventral (motor) roots. Importantly, these roots are part of the PNS, not the CNS.

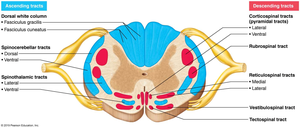

White Matter and Spinal Tracts

The white matter of the spinal cord consists of myelinated and unmyelinated fibers that allow communication between different parts of the CNS. Fibers run in three directions: ascending (sensory), descending (motor), and transverse (commissural). The white matter is divided into dorsal, lateral, and ventral columns (funiculi), each containing specific tracts.

Spinal tracts have four general properties: decussation (crossing over), relay (chains of neurons), somatotopy (spatial organization), and symmetry (paired tracts).

Peripheral Nervous System (PNS)

Components and Structure of a Nerve

The PNS includes all neural structures outside the brain and spinal cord: sensory receptors, peripheral nerves, ganglia, and efferent motor endings. A nerve is a cordlike organ composed of bundles of axons (myelinated and unmyelinated) surrounded by connective tissue coverings:

• Endoneurium: Surrounds individual axons and their myelin sheath

• Perineurium: Bundles axons into fascicles

• Epineurium: Encloses the entire nerve

Cranial Nerves

There are 12 pairs of cranial nerves, most of which are mixed nerves (sensory and motor). They are numbered I–XII and named from rostral to caudal. All except the vagus nerve serve only head and neck structures.

• Olfactory (I): Sensory for smell

• Optic (II): Sensory for vision; partial decussation at optic chiasma allows for binocular vision

• Oculomotor (III), Trochlear (IV), Abducens (VI): Motor to eye muscles

• Trigeminal (V): Sensory from face, motor for chewing

• Vestibulocochlear (VIII): Sensory for hearing and balance

• Facial (VII), Glossopharyngeal (IX), Vagus (X), Accessory (XI), Hypoglossal (XII): Mixed functions including taste, facial expression, swallowing, and parasympathetic regulation

Spinal Nerves and Plexuses

There are 31 pairs of spinal nerves, named for their region of origin: cervical (C1–C8), thoracic (T1–T12), lumbar (L1–L5), sacral (S1–S5), and coccygeal (C0). Each spinal nerve branches into a dorsal ramus (sensory) and a ventral ramus (motor), both carrying mixed fibers.

Except for T2–T12, ventral rami form nerve plexuses (cervical, brachial, lumbar, sacral) that redistribute fibers so each limb muscle receives innervation from more than one spinal nerve. This redundancy protects against complete paralysis from single nerve injury.

Dermatomes

A dermatome is an area of skin innervated by the sensory fibers of a single spinal nerve. All spinal nerves except C1 participate in dermatomes. Dermatomal maps are clinically important for diagnosing nerve or spinal cord injuries.
