Blood Vessel Structure and Function

Overview of Blood Vessels

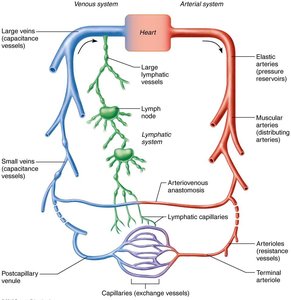

Blood vessels are dynamic structures forming a delivery system that begins and ends at the heart. They work closely with the lymphatic system to circulate fluids throughout the body. The three main types of blood vessels are arteries, capillaries, and veins.

• Arteries: Carry blood away from the heart; typically oxygenated except in pulmonary circulation and fetal umbilical vessels.

• Capillaries: Directly contact tissue cells and serve cellular needs.

• Veins: Carry blood toward the heart; typically deoxygenated except in pulmonary circulation and fetal umbilical vessels.

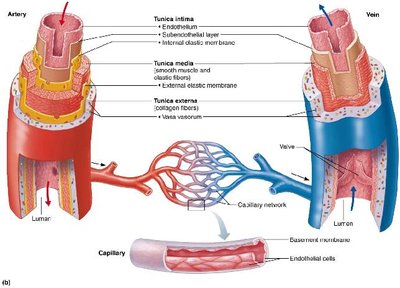

Structure of Blood Vessel Walls

All blood vessels consist of a lumen (central blood-containing space) surrounded by a wall. Except for capillaries, vessel walls have three layers, or tunics:

• Tunica intima: Innermost layer, in intimate contact with blood. Composed of endothelium (simple squamous epithelium) and, in larger vessels, a subendothelial layer of connective tissue.

• Tunica media: Middle layer, mostly smooth muscle and sheets of elastin. Responsible for vasoconstriction and vasodilation, thus regulating blood flow and pressure.

• Tunica externa (adventitia): Outermost layer, mainly loose collagen fibers that protect, reinforce, and anchor the vessel. Contains nerve fibers, lymphatic vessels, and in large veins, elastic fibers. The vasa vasorum nourishes the outer layer in larger vessels.

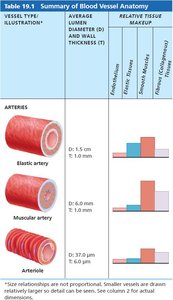

Summary of Blood Vessel Anatomy

The anatomy of blood vessels varies by type, with differences in lumen diameter, wall thickness, and tissue composition.

Vessel Type	Average Lumen Diameter	Wall Thickness	Relative Tissue Makeup
Elastic artery	1.5 cm	1.0 mm	High elastin, moderate smooth muscle
Muscular artery	6.0 mm	1.0 mm	High smooth muscle, less elastin
Arteriole	37.0 μm	1.0 μm	Mostly smooth muscle

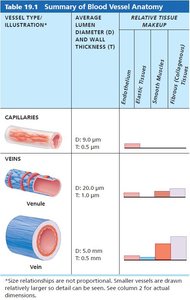

Vessel Type	Average Lumen Diameter	Wall Thickness	Relative Tissue Makeup
Capillary	9.0 μm	0.5 μm	Endothelium only
Venule	20.0 μm	1.0 μm	Endothelium, some smooth muscle
Vein	5.0 mm	0.5 mm	Moderate collagen fibers, some smooth muscle

Arteries

Types of Arteries

Arteries are classified based on size and function:

• Elastic arteries: Thick-walled, large lumen, act as pressure reservoirs. Found in the aorta and its major branches. Elastin is present in all three tunics, especially the tunica media. They expand and recoil to maintain continuous blood flow.

• Muscular arteries: Deliver blood to body organs, have the thickest tunica media with more smooth muscle and less elastic tissue. Active in vasoconstriction.

• Arterioles: Smallest arteries, control flow into capillary beds via vasodilation and vasoconstriction. Larger arterioles have all three tunics; smaller ones are mostly smooth muscle and endothelium.

Capillaries

Structure and Function of Capillaries

Capillaries are microscopic vessels with walls consisting of thin tunica intima. Their small diameter allows only a single red blood cell to pass at a time. Pericytes are stem cells that stabilize capillary walls and control permeability.

• Capillaries supply almost every cell except cartilage, epithelia, cornea, and lens.

• Primary function: Exchange of gases, nutrients, wastes, and hormones between blood and interstitial fluid.

Types of Capillaries

Capillaries are classified based on permeability and structure:

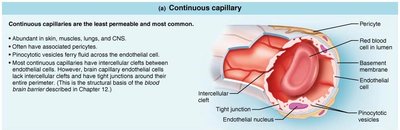

• Continuous capillaries: Most common and least permeable. Abundant in skin, muscles, lungs, and CNS. Endothelial cells are joined by tight junctions with intercellular clefts for passage of fluids and small solutes. In the brain, they form the blood-brain barrier.

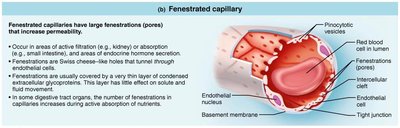

• Fenestrated capillaries: Found in areas of active filtration (kidneys), absorption (intestines), or hormone secretion. Endothelial cells contain pores (fenestrations) that increase permeability, usually covered by a thin glycoprotein diaphragm.

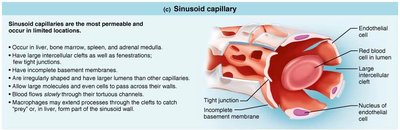

• Sinusoidal capillaries: Most permeable, found in liver, bone marrow, spleen, and adrenal medulla. Have large lumens, fewer tight junctions, and incomplete basement membranes. Blood flow is sluggish, allowing time for exchange of large molecules and cells. Macrophages are present to capture foreign invaders.

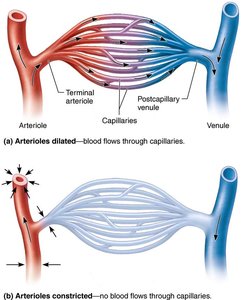

Capillary Beds

Capillary beds are interwoven networks between arterioles and venules, facilitating microcirculation. Blood flow through the bed is controlled by the diameter of terminal arterioles and upstream arterioles, regulated by local chemical conditions and vasomotor nerve fibers.

• Exchange of gases, nutrients, and wastes occurs in capillaries.

• Capillaries drain into postcapillary venules.

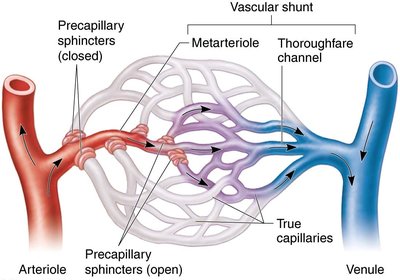

Special Features in Mesenteric Capillary Beds

• Vascular shunt: Direct channel connecting arteriole with venule, bypassing true capillaries (metarteriole and thoroughfare channel).

• Precapillary sphincter: Cuff of smooth muscle regulating blood flow into capillary bed, controlled by local chemical conditions.

Veins

Structure and Function of Veins

Veins carry blood toward the heart, beginning when capillary beds unite in postcapillary venules and merge into larger veins. Veins have thinner walls and larger lumens compared to arteries, making them good storage vessels (capacitance vessels).

• Contain up to 65% of blood supply.

• Tunica media is thin; tunica externa is thick with collagen fibers and elastic networks.

• Blood pressure is lower than in arteries.

Adaptations for Venous Return

• Large-diameter lumens: Offer little resistance.

• Venous valves: Prevent backflow, most abundant in veins of limbs.

• Venous sinuses: Flattened veins with thin walls, composed only of endothelium (e.g., coronary sinus, dural sinuses).

Blood Volume Distribution

Veins contain the largest proportion of blood volume in the cardiovascular system.

Clinical Considerations

Varicose Veins and Hemorrhoids

Varicose veins are dilated and painful veins caused by incompetent valves. Factors include heredity, prolonged standing, obesity, pregnancy, and elevated venous pressure. Hemorrhoids are varicosities in anal veins due to increased intra-abdominal pressure.

Anastomoses

Vascular Anastomoses

Anastomoses are interconnections between blood vessels, providing alternate pathways for blood flow.

• Arterial anastomoses: Ensure continuous flow even if one artery is blocked; common in joints, abdominal organs, brain, and heart.

• Arteriovenous anastomoses: Shunts in capillaries (e.g., metarteriole–thoroughfare channel).

• Venous anastomoses: So abundant that occluded veins rarely block blood flow.

Summary Table: Blood Vessel Anatomy

Vessel Type	Average Lumen Diameter	Wall Thickness	Relative Tissue Makeup
Elastic artery	1.5 cm	1.0 mm	High elastin, moderate smooth muscle
Muscular artery	6.0 mm	1.0 mm	High smooth muscle, less elastin
Arteriole	37.0 μm	1.0 μm	Mostly smooth muscle
Capillary	9.0 μm	0.5 μm	Endothelium only
Venule	20.0 μm	1.0 μm	Endothelium, some smooth muscle
Vein	5.0 mm	0.5 mm	Moderate collagen fibers, some smooth muscle

Key Terms and Concepts

• Lumen: Central space within a blood vessel.

• Tunica intima: Innermost layer of vessel wall.

• Tunica media: Middle layer, smooth muscle and elastin.

• Tunica externa: Outermost layer, collagen fibers.

• Vasa vasorum: Small vessels that nourish the outer layers of large blood vessels.

• Vascular shunt: Direct connection between arteriole and venule.

• Precapillary sphincter: Smooth muscle regulating blood flow into capillaries.

• Capacitance vessels: Veins that store blood.

• Anastomosis: Connection between blood vessels.

Equations and Formulas

Blood flow and resistance are governed by the following relationships:

• Poiseuille's Law: $Q = \frac{\pi \Delta P r^4}{8 \eta l}$ Where Q = flow, ΔP = pressure difference, r = radius, η = viscosity, l = length.

• Resistance: $R = \frac{8 \eta l}{\pi r^4}$ Where R = resistance, η = viscosity, l = length, r = radius.

Additional info: These equations are fundamental to understanding hemodynamics and the effect of vessel diameter on blood flow and resistance.
