Chapter 1B: The Human Body – An Orientation (Anatomical Terms, Body Planes, and Cavities)

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

Anatomical Position and Directional Terms

Standard Anatomical Position

The anatomical position is a universally accepted reference posture used to describe locations and directions on the human body. The body stands erect, feet slightly apart, palms facing forward, and thumbs pointing away from the body. All directional terms are based on this position, and 'right' and 'left' refer to the subject's sides, not the observer's.

Directional Terms

Directional terms are used to describe the location of one body structure relative to another. These terms are essential for clear communication in anatomy and medicine.

Superior (cranial): Toward the head or upper part of a structure or the body; above.
Inferior (caudal): Away from the head end or toward the lower part of a structure or the body; below.
Anterior (ventral): Toward or at the front of the body; in front of.
Posterior (dorsal): Toward or at the back of the body; behind.

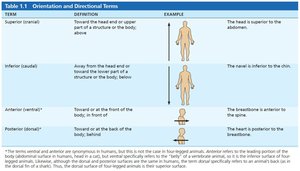

Table of orientation and directional terms: superior, inferior, anterior, posterior

Medial: Toward or at the midline of the body; on the inner side.
Lateral: Away from the midline of the body; on the outer side.
Intermediate: Between a more medial and a more lateral structure.

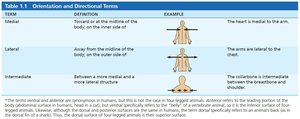

Table of orientation and directional terms: medial, lateral, intermediate

Proximal: Closer to the origin of the body part or the point of attachment of a limb to the body trunk.
Distal: Farther from the origin of a body part or the point of attachment of a limb to the body trunk.
Superficial (external): Toward or at the body surface.
Deep (internal): Away from the body surface; more internal.

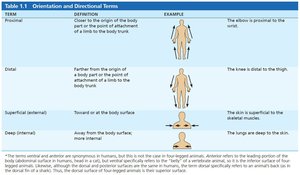

Table of orientation and directional terms: proximal, distal, superficial, deep

Regional Terms

Major Divisions of the Body

The body is divided into two major regions: axial (head, neck, trunk) and appendicular (limbs). Regional terms specify particular areas within these divisions, aiding in precise anatomical description.

Anterior regional terms of the body Posterior regional terms of the body

Body Planes and Sections

Body Planes

Body planes are imaginary lines along which the body or organs may be cut to view internal structures. The three primary planes are:

Sagittal plane: Divides the body vertically into right and left parts.
Midsagittal (median) plane: A sagittal plane that lies exactly in the midline.
Parasagittal plane: A sagittal plane offset from the midline.
Frontal (coronal) plane: Divides the body vertically into anterior and posterior parts.
Transverse (horizontal) plane: Divides the body horizontally into superior and inferior parts.
Oblique section: Cuts made at an angle other than 90° to the vertical plane.

Body planes and corresponding MRI scans Sagittal plane and MRI scan Frontal plane and MRI scan Transverse plane and MRI scan

Body Cavities and Membranes

Body Cavities

The body contains internal cavities that protect organs and allow for their movement and function. There are two main sets of cavities:

Dorsal body cavity: Protects the nervous system and has two subdivisions:
- Cranial cavity: Encases the brain.
- Vertebral cavity: Encases the spinal cord.
Ventral body cavity: Houses internal organs (viscera) and is divided by the diaphragm into:
- Thoracic cavity: Contains pleural cavities (lungs), mediastinum (pericardial cavity, heart, esophagus, trachea).
- Abdominopelvic cavity:
  - Abdominal cavity: Contains stomach, intestines, spleen, liver.
  - Pelvic cavity: Contains urinary bladder, reproductive organs, rectum.

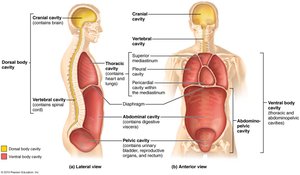

Dorsal and ventral body cavities and their subdivisions

Membranes in the Ventral Body Cavity

Serous membranes (serosa) are thin, double-layered membranes that cover surfaces in the ventral body cavity. The parietal serosa lines internal cavity walls, while the visceral serosa covers internal organs. The space between these layers is filled with serous fluid, reducing friction.

Pericardium: Associated with the heart.
Pleurae: Associated with the lungs.
Peritoneum: Associated with the abdominopelvic cavity.

Serous membrane relationships

Abdominopelvic Quadrants and Regions

Abdominopelvic Quadrants

Medical personnel often use four abdominopelvic quadrants to locate pain or abnormalities:

Right upper quadrant (RUQ)
Left upper quadrant (LUQ)
Right lower quadrant (RLQ)
Left lower quadrant (LLQ)

The four abdominopelvic quadrants

Abdominopelvic Regions

Anatomists use nine regions, arranged in a tic-tac-toe grid, for more precise localization:

Right hypochondriac region
Epigastric region
Left hypochondriac region
Right lumbar region
Umbilical region
Left lumbar region
Right iliac (inguinal) region
Hypogastric region
Left iliac (inguinal) region

The nine abdominopelvic regions

Other Body Cavities

In addition to the main body cavities, several smaller cavities exist:

Oral and digestive cavities: Mouth and digestive tract.
Nasal cavity: Within the nose.
Orbital cavities: Eyes.
Middle ear cavities: Contain tiny bones for hearing.
Synovial cavities: Joint cavities (not exposed to the environment).

Clinical Applications

Homeostatic Imbalance

Hiatal hernia: Occurs when part of the stomach protrudes through the diaphragm into the thoracic cavity, potentially causing heartburn.
Pleurisy and peritonitis: Inflammation of serous membranes can cause pain and organ dysfunction.

Summary Table: Orientation and Directional Terms

Term	Definition	Example
Superior (cranial)	Toward the head or upper part of a structure	The head is superior to the abdomen
Inferior (caudal)	Away from the head end or toward the lower part	The navel is inferior to the chin
Anterior (ventral)	Toward or at the front of the body	The breastbone is anterior to the spine
Posterior (dorsal)	Toward or at the back of the body	The heart is posterior to the breastbone
Medial	Toward or at the midline of the body	The heart is medial to the arm
Lateral	Away from the midline of the body	The arms are lateral to the chest
Intermediate	Between a more medial and a more lateral structure	The collarbone is intermediate between the breastbone and shoulder
Proximal	Closer to the origin of the body part	The elbow is proximal to the wrist
Distal	Farther from the origin of a body part	The knee is distal to the thigh
Superficial (external)	Toward or at the body surface	The skin is superficial to the skeletal muscles
Deep (internal)	Away from the body surface; more internal	The lungs are deep to the skin

Key Equations

No mathematical equations are directly relevant to this chapter, but anatomical planes and regions are often referenced in medical imaging and surgical procedures.

Additional info:

These notes expand on the brief points in the slides, providing definitions, examples, and clinical context for anatomical terms, planes, and cavities. The included images directly reinforce the explanations of anatomical position, regional terms, body planes, cavities, and membranes.
