Chapter 8: Joints (Articulations) – Structure, Function, and Clinical Relevance

Joints: An Overview

Definition and Importance

Joints, or articulations, are the sites where two or more bones meet. They are essential for providing the skeleton with mobility and for holding the skeleton together. Understanding joints is crucial for diagnosing and treating injuries such as sprains and dislocations.

Classification of Joints

Structural Classification

Joints are classified structurally based on the material binding the bones and the presence or absence of a joint cavity:

• Fibrous Joints: Bones joined by dense fibrous connective tissue; no joint cavity; mostly immovable.

• Cartilaginous Joints: Bones united by cartilage; no joint cavity; not highly movable.

• Synovial Joints: Bones separated by a fluid-filled joint cavity; all are freely movable (diarthrotic).

Functional Classification

Joints are also classified by the degree of movement they allow:

• Synarthroses: Immovable joints

• Amphiarthroses: Slightly movable joints

• Diarthroses: Freely movable joints

Fibrous Joints

General Features

Fibrous joints are connected by dense fibrous connective tissue and lack a joint cavity. Most are immovable, but the degree of movement depends on the length of the connective tissue fibers.

Types of Fibrous Joints

• Sutures: Rigid, interlocking joints found only in the skull. They allow for growth during youth and ossify in middle age to form synostoses (immovable joints).

• Syndesmoses: Bones connected by ligaments. The amount of movement depends on the length of the fibers. Example: the inferior tibiofibular joint (little movement) and the interosseous membrane between the radius and ulna (more movement).

• Gomphoses: Peg-in-socket joints, such as teeth in their alveolar sockets. The periodontal ligament holds the tooth in place.

Cartilaginous Joints

General Features

Cartilaginous joints unite bones with cartilage and lack a joint cavity. They are not highly movable.

Types of Cartilaginous Joints

• Synchondroses: Bones united by a bar or plate of hyaline cartilage. Most are immovable (synarthrotic). Examples include the epiphyseal plate in children and the joint between the first rib and the manubrium of the sternum.

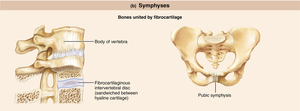

• Symphyses: Bones united by fibrocartilage. These joints are strong and slightly movable (amphiarthrotic). Examples include intervertebral joints and the pubic symphysis.

Synovial Joints

General Structure and Features

Synovial joints are characterized by a fluid-filled joint cavity and are all freely movable. They are the most common type of joint in the limbs.

• Articular cartilage: Hyaline cartilage covering bone ends, preventing crushing of bone ends.

• Joint (synovial) cavity: Small, fluid-filled space unique to synovial joints.

• Articular (joint) capsule: Two layers—an external fibrous layer (dense irregular connective tissue) and an inner synovial membrane (loose connective tissue that produces synovial fluid).

• Synovial fluid: Viscous, slippery filtrate of plasma and hyaluronic acid that lubricates and nourishes articular cartilage.

• Reinforcing ligaments: Capsular, extracapsular, and intracapsular ligaments stabilize the joint.

• Nerves and blood vessels: Nerves detect pain and monitor joint position; capillary beds supply filtrate for synovial fluid.

Other Features

• Fatty pads: Cushioning between the fibrous layer and synovial membrane or bone.

• Articular discs (menisci): Fibrocartilage that improves the fit of bone ends, stabilizes the joint, and reduces wear and tear.

Bursae and Tendon Sheaths

• Bursae: Fluid-filled sacs that reduce friction where ligaments, muscles, skin, tendons, or bones rub together.

• Tendon sheaths: Elongated bursae that wrap around tendons subjected to friction.

Factors Influencing Stability

• Shape of articular surfaces: Shallow surfaces are less stable than ball-and-socket joints.

• Ligament number and location: More ligaments generally mean a stronger joint.

• Muscle tone: The most important factor, keeping tendons taut as they cross joints.

Movements at Synovial Joints

Types of Movement

• Nonaxial: Gliding movements only.

• Uniaxial: Movement in one plane.

• Biaxial: Movement in two planes.

• Multiaxial: Movement in or around all three planes.

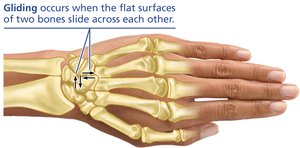

Gliding Movements

Flat bone surfaces slide or glide over each other. Examples include intercarpal and intertarsal joints.

Angular Movements

These movements increase or decrease the angle between two bones and occur along the sagittal plane.

• Flexion: Decreases the angle of the joint.

• Extension: Increases the angle of the joint.

• Hyperextension: Movement beyond the anatomical position.

• Abduction: Movement away from the midline along the frontal plane.

• Adduction: Movement toward the midline along the frontal plane.

• Circumduction: Limb describes a cone in space, combining flexion, abduction, extension, and adduction.

Rotational Movements

Rotation is the turning of a bone around its own long axis, either toward (medial) or away from (lateral) the midline. Examples include rotation of the head, humerus, and femur.

Special Movements

• Supination and Pronation: Rotation of the forearm. Supination turns the palm anteriorly (radius and ulna are parallel), while pronation turns the palm posteriorly (radius rotates over ulna).

• Opposition: Movement of the thumb to touch the tips of other fingers on the same hand.

• Dorsiflexion and Plantar Flexion: Dorsiflexion bends the foot toward the shin; plantar flexion points the toes.

• Inversion and Eversion: Inversion turns the sole of the foot medially; eversion turns it laterally.

• Elevation and Depression: Elevation lifts a body part superiorly (e.g., closing the mouth); depression lowers it (e.g., opening the mouth).

Types of Synovial Joints

Classification by Shape and Movement

Synovial joints are classified into six types based on the shape of their articular surfaces and the movements they allow:

• Plane: Gliding movements (e.g., intercarpal joints)

• Hinge: Flexion and extension (e.g., elbow joint)

• Pivot: Rotation (e.g., proximal radioulnar joint)

• Condylar (Ellipsoid): Flexion/extension and abduction/adduction (e.g., knuckle joints)

• Saddle: Similar to condylar but with greater movement (e.g., thumb joint)

• Ball-and-socket: Multiaxial movement (e.g., shoulder and hip joints)

Selected Synovial Joints

Temporomandibular Joint (TMJ)

The TMJ is a modified hinge joint between the mandibular condyle and the temporal bone. It allows both hinge (depression/elevation) and gliding (side-to-side) movements. It is the most easily dislocated joint in the body.

Shoulder (Glenohumeral) Joint

The shoulder is a ball-and-socket joint, providing the greatest range of motion but sacrificing stability. The glenoid labrum deepens the cavity, and stability is mainly provided by muscle tendons, especially the rotator cuff muscles.

Elbow Joint

The elbow is a hinge joint formed by the humerus, radius, and ulna. It allows flexion and extension only. Ligaments such as the ulnar and radial collateral ligaments provide stability.

Hip (Coxal) Joint

The hip is a deep ball-and-socket joint between the femur and acetabulum of the pelvis. It is highly stable due to the depth of the socket and strong reinforcing ligaments.

Knee Joint

The knee is the largest and most complex joint, consisting of three joints in one cavity. It is stabilized by menisci, ligaments (collateral and cruciate), and muscle tendons. It is vulnerable to injury, especially from lateral blows.

Common Joint Injuries and Disorders

Injuries

• Cartilage tears: Often require arthroscopic surgery; cartilage has limited ability to repair itself.

• Sprains: Ligaments are stretched or torn; healing is slow due to poor blood supply.

• Dislocations (luxations): Bones are forced out of alignment; often accompanied by sprains and inflammation.

Inflammatory and Degenerative Conditions

• Bursitis: Inflammation of a bursa, usually from friction or trauma.

• Tendonitis: Inflammation of tendon sheaths, typically from overuse.

• Arthritis: Over 100 types, including:

  • Osteoarthritis (OA): Degenerative, "wear-and-tear" arthritis common with aging.

  • Rheumatoid arthritis (RA): Chronic, autoimmune disorder causing joint inflammation and deformity.

  • Gouty arthritis: Uric acid crystal deposition, often in the big toe.

  • Lyme disease: Bacterial infection from tick bites, can lead to joint pain and arthritis.

Developmental Aspects of Joints

By embryonic week 8, synovial joints resemble adult joints. Joint structure and flexibility are influenced by use and activity. Aging leads to decreased flexibility, shorter ligaments and tendons, and increased risk of osteoarthritis. Regular full-range-of-motion exercise helps maintain joint health.
