Muscles and Muscle Tissue: Structure, Function, and Physiology

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

Muscle Tissue Overview

Types of Muscle Tissue

Muscle tissue is essential for movement and comprises nearly half of the body's mass. It transforms chemical energy (ATP) into mechanical energy, enabling force generation. There are three primary types of muscle tissue, each with distinct characteristics and functions:

  • Skeletal Muscle: Attached to bones and skin, responsible for voluntary movements. Fibers are long, striated, and multinucleated. Contracts rapidly but tires easily.

  • Cardiac Muscle: Found only in the heart, responsible for pumping blood. Striated, involuntary, and has a single nucleus per cell. Contracts at a steady rate due to the heart's pacemaker.

  • Smooth Muscle: Located in walls of hollow organs (e.g., stomach, bladder, airways). Not striated, involuntary, and has a single nucleus. Contracts slowly and can sustain contractions for longer periods.

Muscle Type

Location

Control

Striations

Nucleus

Skeletal

Bones, skin

Voluntary

Yes

Multinucleated

Cardiac

Heart

Involuntary

Yes

Single

Smooth

Hollow organs

Involuntary

No

Single

Skeletal muscle Cardiac muscle Smooth muscle

Characteristics of Muscle Tissue

All muscle tissues share four main properties:

  • Excitability: Ability to respond to stimuli.

  • Contractility: Ability to shorten forcibly when stimulated.

  • Extensibility: Ability to be stretched.

  • Elasticity: Ability to return to resting length after stretching.

Functions of Muscle Tissue

  • Produce movement: Locomotion and manipulation (e.g., walking, digesting, pumping blood).

  • Maintain posture: Stabilizes body position.

  • Stabilize joints: Reinforces and supports joints.

  • Generate heat: Maintains body temperature during contraction.

Skeletal Muscle Structure

Connective Tissue Sheaths

Skeletal muscle is organized into layers of connective tissue that support and reinforce the muscle:

  • Epimysium: Surrounds the entire muscle.

  • Perimysium: Surrounds groups of muscle fibers (fascicles).

  • Endomysium: Surrounds individual muscle fibers.

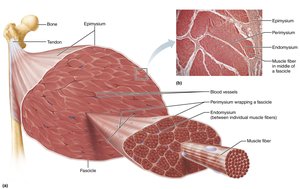

Connective tissue sheaths of skeletal muscle

Skeletal Muscle Fibers

Skeletal muscle fibers are long, cylindrical cells with multiple nuclei. Specialized structures include:

  • Sarcolemma: Plasma membrane of the muscle fiber.

  • Sarcoplasm: Cytoplasm containing glycosomes (glycogen storage) and myoglobin (oxygen storage).

  • Myofibrils: Densely packed rodlike elements responsible for contraction.

  • Sarcoplasmic Reticulum (SR): Stores and releases calcium ions.

  • T Tubules: Extensions of the sarcolemma that transmit electrical signals.

Microscopic anatomy of a skeletal muscle fiber

Myofibril Structure and Function

Striations and Sarcomeres

Striations are formed by repeating series of dark (A bands) and light (I bands) regions. The sarcomere is the smallest contractile unit, defined by the area between two Z discs.

Sarcomere structure

Myofilaments

Myofilaments are organized within the sarcomere:

  • Actin (thin filaments): Anchored to Z discs, extend across I band and partway into A band.

  • Myosin (thick filaments): Extend the length of the A band, connected at the M line.

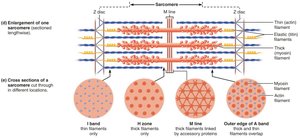

Arrangement of myofilaments in sarcomere

Molecular Composition

  • Thick filaments: Composed of myosin molecules with heads that form cross bridges during contraction.

  • Thin filaments: Composed of actin, tropomyosin, and troponin. Actin subunits provide binding sites for myosin heads.

  • Elastic filament (titin): Maintains alignment and elasticity of the sarcomere.

  • Dystrophin: Links thin filaments to sarcolemma proteins.

Thick filament composition Thin filament composition

Sarcoplasmic Reticulum and T Tubules

Calcium Regulation

The sarcoplasmic reticulum (SR) surrounds each myofibril and regulates calcium ion storage and release. T tubules transmit electrical signals deep into the muscle fiber, triggering calcium release from the SR.

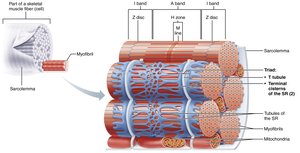

Relationship of SR and T tubules to myofibrils

Muscle Contraction Mechanisms

Sliding Filament Model

Muscle contraction occurs when thin filaments slide past thick filaments, increasing overlap. Cross bridges form and break repeatedly, pulling thin filaments toward the center of the sarcomere.

Sliding filament model of contraction Sliding filament model of contraction

Neuromuscular Junction and Action Potential

Motor neurons stimulate muscle fibers via the neuromuscular junction. Acetylcholine (ACh) is released, binds to receptors, and initiates an action potential across the sarcolemma.

  • Chemically gated ion channels: Open in response to neurotransmitters (e.g., ACh).

  • Voltage-gated ion channels: Open in response to changes in membrane potential.

Chemically gated ion channel Voltage-gated ion channel Overview of skeletal muscle contraction Overview of skeletal muscle contraction Events at the neuromuscular junction

Action Potential Generation

The action potential involves three main steps:

  • Depolarization: Sodium ions enter the cell, making the interior more positive.

  • Repolarization: Potassium ions exit the cell, restoring resting membrane potential.

  • Refractory period: The cell cannot be stimulated again until repolarization is complete.

Generation and propagation of action potential Generation and propagation of action potential Generation and propagation of action potential Action potential tracing

Excitation-Contraction Coupling

Excitation-contraction coupling links the action potential to muscle contraction. The action potential travels along the sarcolemma and T tubules, triggering calcium release from the SR, which initiates contraction.

Excitation-contraction coupling Excitation-contraction coupling

Cross Bridge Cycle

The cross bridge cycle consists of four steps:

  1. Cross bridge formation: Myosin head binds to actin.

  2. Power stroke: Myosin head pivots, pulling actin filament.

  3. Cross bridge detachment: ATP binds to myosin, causing detachment.

  4. Cocking of myosin head: ATP hydrolysis re-energizes myosin head.

Cross bridge cycle Cross bridge cycle analogy

Whole Muscle Contraction

Motor Units

A motor unit consists of a motor neuron and all the muscle fibers it innervates. Smaller motor units allow for finer control.

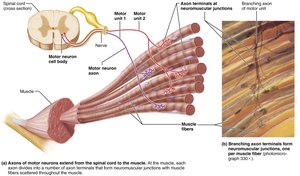

Motor unit structure

Muscle Twitch

A muscle twitch is the response of a muscle fiber to a single action potential. It consists of three phases:

  • Latent period: Excitation-contraction coupling occurs.

  • Contraction period: Cross bridges form and tension increases.

  • Relaxation period: Calcium re-enters the SR and tension decreases.

Muscle twitch phases Muscle twitch comparison

Graded Muscle Contractions

Muscle contractions are graded by changing the frequency and strength of stimulation:

  • Temporal (wave) summation: Rapid stimuli increase contraction force.

  • Tetanus: Sustained contraction due to high-frequency stimulation.

  • Recruitment: Increasing stimulus strength activates more motor units.

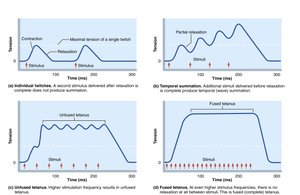

Temporal summation Temporal summation Temporal summation Temporal summation Stimulus intensity and muscle tension Size principle of recruitment

Muscle Tone

Muscle tone is a constant, slightly contracted state maintained by spinal reflexes. It keeps muscles firm and ready to respond.

Isotonic and Isometric Contractions

Muscle contractions can be:

  • Isotonic: Muscle changes length and moves a load (concentric: shortens; eccentric: lengthens).

  • Isometric: Muscle tension increases but does not change length.

Isotonic and isometric contractions Isotonic and isometric contractions Isotonic and isometric contractions Isotonic and isometric contractions

ATP and Muscle Contraction

Energy Sources

ATP is essential for muscle contraction and is regenerated by three mechanisms:

  • Direct phosphorylation: Creatine phosphate donates a phosphate to ADP.

  • Anaerobic pathway: Glycolysis and lactate formation (no oxygen required).

  • Aerobic pathway: Glycolysis and aerobic respiration in mitochondria (oxygen required).

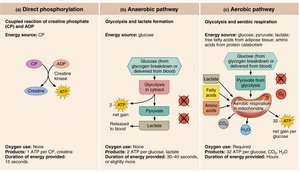

Pathways for regenerating ATP Pathways for regenerating ATP Pathways for regenerating ATP

Energy Use During Exercise

Short-duration, high-intensity exercise relies on stored ATP and creatine phosphate, while prolonged exercise uses aerobic pathways.

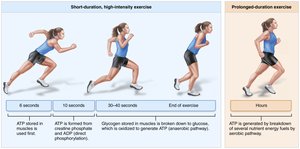

Comparison of energy sources during exercise

Factors Affecting Muscle Contraction

Force of Contraction

The force generated depends on:

  • Frequency of stimulation

  • Number of fibers stimulated (recruitment)

  • Size of muscle fibers

  • Degree of muscle stretch (length-tension relationship)

Velocity and Duration

Influenced by muscle fiber type, load, and recruitment:

  • Slow oxidative fibers: Endurance activities

  • Fast oxidative fibers: Medium-intensity activities

  • Fast glycolytic fibers: Intense, short-term activities

Muscle Response to Exercise

Aerobic and Resistance Exercise

  • Aerobic exercise: Increases capillaries, mitochondria, and myoglobin; improves endurance.

  • Resistance exercise: Causes hypertrophy, increases strength and fiber size.

Smooth Muscle Structure and Function

Organization

Smooth muscle is found in walls of hollow organs, organized into longitudinal and circular layers. Contractions mix and propel substances.

Differences from Skeletal Muscle

  • Spindle-shaped, single nucleus, no striations

  • Contains only endomysium

  • Innervated by autonomic nervous system via varicosities

  • Less elaborate SR, no T tubules; relies on extracellular calcium

  • Electrically connected by gap junctions

  • Thick filaments have myosin heads along entire length

  • No troponin; calmodulin binds calcium

  • Intermediate filaments and dense bodies anchor filaments

Types of Smooth Muscle

  • Unitary (visceral): Found in hollow organs, electrically coupled, responds to chemical stimuli.

  • Multi unit: Found in large airways, arteries, arrector pili, iris; independent fibers, graded contractions.

Developmental Aspects

Muscle Development and Regeneration

  • All muscle tissues develop from myoblasts.

  • Skeletal muscle satellite cells have limited regenerative ability.

  • Cardiac muscle is mostly replaced by connective tissue after injury.

  • Smooth muscle regenerates throughout life.
