Study Guide: Endocrine and Special Senses (Eye & Ear) for BIO163

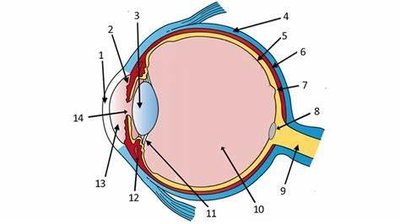

Q1. Identify and describe the parts of the eye in the diagram. For each structure, fill out the table with its physiology/function and location (chamber/layer).

Background

Topic: Anatomy and Physiology of the Eye

This question tests your knowledge of the anatomical structures of the eye, their physiological roles, and their locations within the eye's chambers or layers.

Key Terms:

• Anterior chamber, posterior chamber, sclera, cornea, retina, lens, optic nerve, vitreous body, choroid, ciliary body, iris, pupil, macula, fovea.

• Physiology: Vision, light refraction, image formation, signal transmission.

Step-by-Step Guidance

1. Examine the diagram and identify each numbered structure. Use your textbook or lecture notes to match the numbers to anatomical terms.

2. For each structure, research its main physiological function (e.g., "cornea: refracts light," "retina: detects light and sends signals to the brain").

3. Determine the location of each structure (e.g., "anterior chamber," "posterior chamber," "outer layer," "inner layer").

4. Fill out the table with the name, function, and location for each structure. Make sure to use precise anatomical terminology.

Try solving on your own before revealing the answer!

Final Answer:

Each structure is labeled as follows: 1. Cornea, 2. Anterior chamber, 3. Iris, 4. Sclera, 5. Choroid, 6. Retina, 7. Macula, 8. Optic nerve, 9. Vitreous body, 10. Lens, 11. Ciliary body, 12. Suspensory ligaments, 13. Pupil, 14. Fovea.

Functions and locations: For example, the cornea refracts light and is located in the anterior chamber; the retina detects light and is in the inner layer.

Q2. Label the external eye muscles in the diagram, describe their function, and identify their innervation.

Background

Topic: Extraocular Muscles and Eye Movement

This question assesses your understanding of the muscles responsible for moving the eye, their actions, and the cranial nerves that innervate them.

Key Terms:

• Extraocular muscles: superior rectus, inferior rectus, lateral rectus, medial rectus, superior oblique, inferior oblique.

• Innervation: Cranial nerves III (oculomotor), IV (trochlear), VI (abducens).

Step-by-Step Guidance

1. Identify each muscle in the diagram and label them using anatomical names.

2. For each muscle, describe its primary action (e.g., "superior rectus: elevates the eye").

3. Determine which cranial nerve innervates each muscle (e.g., "lateral rectus: abducens nerve (VI)").

4. Write out the function and innervation for each muscle in your notes.

Try solving on your own before revealing the answer!

Final Answer:

Muscles: Superior rectus (III), Inferior rectus (III), Lateral rectus (VI), Medial rectus (III), Superior oblique (IV), Inferior oblique (III).

Functions: Superior rectus elevates, inferior rectus depresses, lateral rectus abducts, medial rectus adducts, superior oblique depresses and rotates, inferior oblique elevates and rotates.

Q3. Label the photoreceptors in the diagram and list the function of each.

Background

Topic: Photoreceptors and Visual Processing

This question tests your knowledge of the types of photoreceptors in the retina and their roles in vision.

Key Terms:

• Photoreceptors: rods and cones.

• Function: Rods detect dim light and are responsible for night vision; cones detect color and are responsible for sharp, detailed vision.

Step-by-Step Guidance

1. Identify the rods and cones in the diagram. Note their shape and location within the retina.

2. Describe the function of rods (sensitivity to low light, peripheral vision) and cones (color vision, high acuity).

3. Explain how light is processed by these cells and transmitted to the brain.

Try solving on your own before revealing the answer!

Final Answer:

Rods: Detect dim light, provide night vision. Cones: Detect color, provide sharp vision.

Rods are more numerous and located in the peripheral retina; cones are concentrated in the fovea.

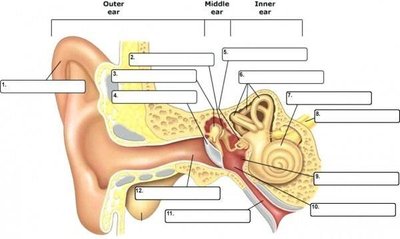

Q4. Label all structures in the ear diagram and list the function of each. Know the ossicles in order, organs for static/dynamic equilibrium, hearing sensation, and VIIIth cranial nerve divisions and function.

Background

Topic: Anatomy and Physiology of the Ear

This question tests your knowledge of the ear's anatomy, the function of each structure, the order of the ossicles, and the roles of different organs in hearing and balance.

Key Terms:

• Ossicles: malleus, incus, stapes (in order).

• Static equilibrium: vestibule; dynamic equilibrium: semicircular canals; hearing: cochlea.

• VIIIth cranial nerve: vestibulocochlear nerve (divisions: vestibular and cochlear).

Step-by-Step Guidance

1. Label each structure in the diagram (outer, middle, inner ear components).

2. List the function of each structure (e.g., "cochlea: hearing," "semicircular canals: dynamic equilibrium").

3. Write the order of the ossicles and their role in sound transmission.

4. Identify the organs responsible for static and dynamic equilibrium and hearing sensation.

5. Describe the divisions and function of the VIIIth cranial nerve.

Try solving on your own before revealing the answer!

Final Answer:

Ossicles: Malleus, Incus, Stapes. Static equilibrium: Vestibule. Dynamic equilibrium: Semicircular canals. Hearing: Cochlea. VIIIth cranial nerve: Vestibulocochlear (vestibular for balance, cochlear for hearing).

Each structure is labeled and its function described as above.
