Study Guide: Endocrine and Special Senses (Eye & Ear) Worksheet

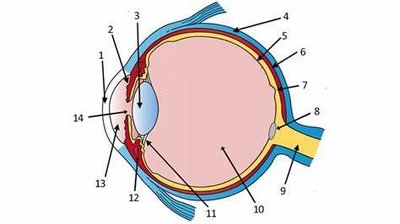

Q1. Identify and describe the parts of the eye in the diagram. For each structure, list its physiology/function and location (chamber/layer).

Background

Topic: Anatomy and Physiology of the Eye

This question tests your knowledge of the anatomical structures of the eye, their physiological roles, and their locations within the eye's chambers or layers.

Key Terms:

• Anterior chamber: Space between cornea and iris.

• Posterior chamber: Space between iris and lens.

• Retina: Layer containing photoreceptors.

• Sclera: Protective outer layer.

• Cornea: Transparent front part, refracts light.

• Lens: Focuses light onto retina.

• Optic nerve: Transmits visual information to the brain.

Step-by-Step Guidance

1. Examine the diagram and identify each numbered structure. Use your textbook or lecture notes to match the numbers to anatomical terms.

2. For each structure, research and write down its main physiological function (e.g., "cornea: refracts light").

3. Determine the location of each structure—whether it is part of the anterior chamber, posterior chamber, or which layer (e.g., sclera, retina).

4. Organize your answers in a table format as requested, with columns for structure, function, and location.

Try solving on your own before revealing the answer!

Q2. Label the external eye muscles, their function, and innervation in the diagram.

Background

Topic: Extraocular Muscles

This question assesses your understanding of the muscles responsible for eye movement, their actions, and the cranial nerves that innervate them.

Key Terms:

• Extraocular muscles: Muscles that move the eyeball.

• Innervation: Cranial nerves III (oculomotor), IV (trochlear), VI (abducens).

• Muscle actions: Elevation, depression, abduction, adduction, rotation.

Step-by-Step Guidance

1. Identify each muscle in the diagram (e.g., superior rectus, lateral rectus).

2. List the primary action of each muscle (e.g., "superior rectus: elevates eye").

3. Determine which cranial nerve innervates each muscle.

4. Label the diagram and create a table summarizing muscle, function, and innervation.

Try solving on your own before revealing the answer!

Q3. Label the photoreceptors in the diagram and list the function of each.

Background

Topic: Photoreceptors of the Retina

This question tests your knowledge of the types of photoreceptors (rods and cones), their locations, and their functions in vision.

Key Terms:

• Rods: Photoreceptors for low-light vision.

• Cones: Photoreceptors for color and high-acuity vision.

• Retina: Layer containing photoreceptors.

Step-by-Step Guidance

1. Identify the rod and cone cells in the diagram.

2. Write down the function of rods (night vision, peripheral vision) and cones (color vision, sharp vision).

3. Label the diagram with the correct photoreceptor types.

Try solving on your own before revealing the answer!

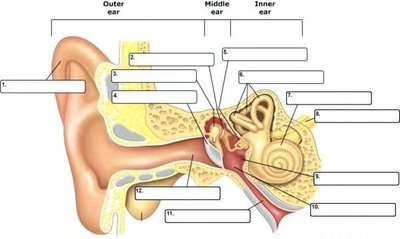

Q4. Label all structures in the ear diagram and list the function of each. Know the ossicles in order, organs for static/dynamic equilibrium, hearing sensation, and VIIIth cranial nerve divisions and function.

Background

Topic: Anatomy and Physiology of the Ear

This question covers the structures of the outer, middle, and inner ear, their functions, the order of ossicles, and the role of the vestibulocochlear nerve (VIII).

Key Terms:

• Ossicles: Malleus, incus, stapes (middle ear bones).

• Static equilibrium: Vestibule (utricle, saccule).

• Dynamic equilibrium: Semicircular canals.

• Hearing: Cochlea.

• VIIIth cranial nerve: Vestibulocochlear nerve (hearing and balance).

Step-by-Step Guidance

1. Identify and label each structure in the diagram (outer, middle, inner ear).

2. List the function of each structure (e.g., "cochlea: hearing").

3. Write the order of the ossicles (malleus, incus, stapes).

4. Identify which organs are responsible for static and dynamic equilibrium.

5. Describe the divisions and functions of the VIIIth cranial nerve.

Try solving on your own before revealing the answer!
