Understanding the Structure of the Human Heart

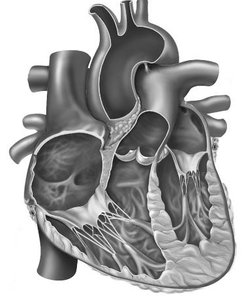

Q: Study the anatomy of the human heart as shown in the image. Identify the major chambers, valves, and vessels visible in this sectioned view.

Background

Topic: Cardiovascular System – Heart Anatomy

This question is testing your ability to recognize and name the main anatomical features of the heart, including its chambers, valves, and major blood vessels, as seen in a sectioned diagram.

Key Terms and Concepts:

• Atria: The two upper chambers of the heart (right and left atrium) that receive blood returning to the heart.

• Ventricles: The two lower chambers (right and left ventricle) that pump blood out of the heart.

• Valves: Structures that prevent backflow of blood (e.g., tricuspid, bicuspid/mitral, pulmonary, and aortic valves).

• Major Vessels: Include the aorta, pulmonary arteries, pulmonary veins, and vena cavae.

Step-by-Step Guidance

1. Observe the image and locate the four main chambers of the heart. Notice the thick muscular walls of the ventricles compared to the atria.



2. Identify the valves between the atria and ventricles (atrioventricular valves) and those at the exits of the ventricles (semilunar valves).

3. Trace the path of blood flow: from the body into the right atrium, through the right ventricle, to the lungs, back to the left atrium, and then to the left ventricle and out to the body.

4. Label the major vessels entering and leaving the heart, such as the superior and inferior vena cava, pulmonary trunk, pulmonary veins, and aorta.

Try solving on your own before revealing the answer!

Final Answer:

The image shows the right and left atria (upper chambers), right and left ventricles (lower chambers), the interventricular septum, atrioventricular valves (tricuspid and bicuspid/mitral), semilunar valves (pulmonary and aortic), and major vessels including the aorta, pulmonary trunk, and vena cavae. The thick wall of the left ventricle is notable for pumping blood to the systemic circuit.
