Photosynthesis Overview

Introduction to Photosynthesis

Photosynthesis is the process by which photoautotrophic organisms, such as plants, algae, and some bacteria, convert light energy into chemical energy. This process is essential for life on Earth, as it provides the organic molecules and oxygen required by most living organisms.

Photoautotrophs: Organisms that use light as an energy source and CO2 as a carbon source.
Photoheterotrophs: Organisms that use light for energy but require organic carbon sources.
General Equation of Photosynthesis:

The overall chemical equation for oxygenic photosynthesis is:

Photosynthesis equation diagram

Chloroplasts and Their Structure

Chloroplast Organization

Chloroplasts are the organelles where photosynthesis occurs in plants and algae. They are a type of plastid and contain their own DNA and ribosomes.

Outer membrane: Permeable to small molecules due to porins.
Inner membrane: Less permeable, encloses the stroma.
Thylakoid membrane: Internal membrane system forming stacks called grana; site of light-dependent reactions.
Stroma: Fluid-filled space containing enzymes for the Calvin cycle.

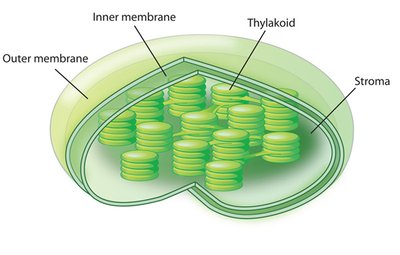

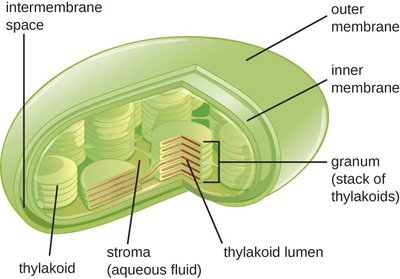

Chloroplast structure diagram Detailed chloroplast structure with thylakoids and stroma

Photosynthetic Pigments

Types and Functions of Pigments

Pigments are molecules that absorb specific wavelengths of light, initiating the process of energy capture in photosynthesis.

Chlorophylls: Main pigments (chlorophyll a, b, c, d) with porphyrin rings; absorb mainly red and blue light, reflect green.
Accessory pigments: Xanthophylls, carotenoids, phycobilins; broaden the spectrum of light absorption and provide photoprotection.

Leaf pigments: chlorophyll, anthocyanins, carotene

Absorption of Light by Pigments

When pigments absorb photons, electrons are excited from the ground state to a higher energy state. This energy can be released as heat, fluorescence, or transferred to other molecules.

Excited state: Unstable; electron returns to ground state or is transferred to an acceptor.
Absorption spectra: Each pigment absorbs light at specific wavelengths.

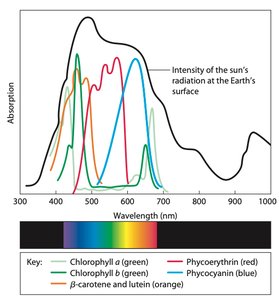

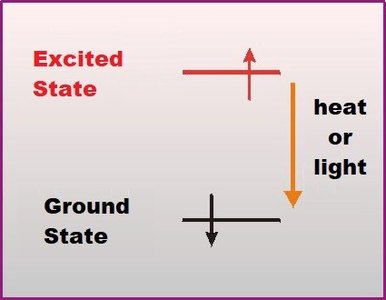

Excited state and ground state diagram Photon absorption and electron excitation Absorption spectra of photosynthetic pigments

Light-Dependent Reactions (Energy Transduction)

Photosystems and Light-Harvesting Complexes

Photosystems are large protein complexes in the thylakoid membrane that contain chlorophyll and accessory pigments. They capture light energy and convert it into chemical energy.

Photosystem II (PSII): Contains P680 chlorophyll a; initiates electron transport by splitting water.
Photosystem I (PSI): Contains P700 chlorophyll a; reduces NADP+ to NADPH.
Light-harvesting complexes (LHCs): Proteins with antenna pigments that funnel energy to the reaction center.

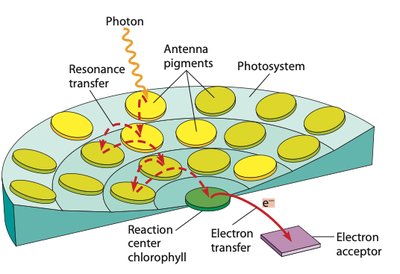

Photosystem and light-harvesting complex structure

Electron Transport and ATP/NADPH Production

Light energy excites electrons in PSII, which are transferred through an electron transport chain to PSI, generating a proton gradient and reducing NADP+ to NADPH.

Water splitting (Oxygen Evolving Complex): Provides electrons to PSII, releases O2 and H+.
Electron carriers: Plastoquinone, cytochrome b6f, plastocyanin, ferredoxin.
ATP synthase: Uses the proton gradient to synthesize ATP from ADP and Pi.

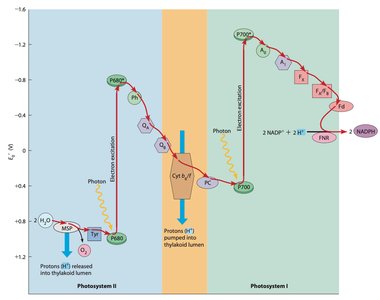

Photosynthetic electron transport chain

Photoprotection and the Xanthophyll Cycle

Reactive Oxygen Species and Photoinhibition

Excess light can lead to the formation of reactive oxygen species (ROS), which damage photosystem proteins and inhibit photosynthesis.

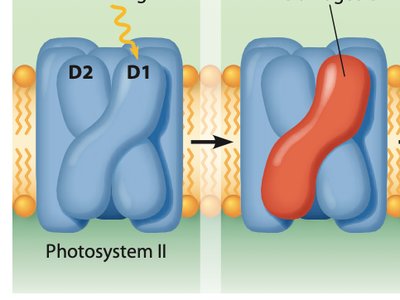

Photoinhibition: Damage to D1 protein in PSII by ROS; requires replacement of the entire photosystem.
Photoprotection: Mechanisms to dissipate excess energy and prevent ROS formation.

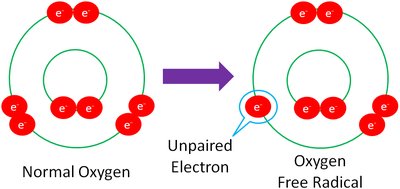

Oxygen free radical formation D1 protein damage in PSII

The Xanthophyll Cycle

The xanthophyll cycle involves the conversion of xanthophyll pigments to dissipate excess light energy as heat, protecting the photosynthetic apparatus.

Xanthophylls: Accept excess electrons and safely dissipate energy.
Cycle: Violaxanthin ↔ Antheraxanthin ↔ Zeaxanthin, depending on light intensity.

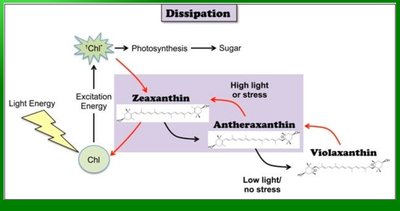

Xanthophyll cycle and energy dissipation

ATP Synthesis in Photosynthesis

Proton Gradient and ATP Synthase

The light-driven electron transport chain pumps protons into the thylakoid lumen, creating an electrochemical gradient. ATP synthase uses this gradient to produce ATP.

CF0 and CF1 domains: CF0 forms the membrane channel; CF1 synthesizes ATP in the stroma.
Regulation: ATP synthase activity is downregulated in the dark to prevent wasteful ATP hydrolysis.

Calvin-Benson Cycle (Light-Independent Reactions)

Stages of the Calvin Cycle

The Calvin cycle occurs in the stroma and uses ATP and NADPH from the light reactions to fix CO2 into carbohydrates.

1. Carbon fixation: CO2 is attached to ribulose-1,5-bisphosphate (RuBP) by the enzyme rubisco, forming 3-phosphoglycerate (3-PGA).
2. Reduction: 3-PGA is reduced to glyceraldehyde-3-phosphate (G3P) using NADPH and ATP.
3. Regeneration: Some G3P is used to regenerate RuBP, enabling the cycle to continue.

For every 3 CO2 fixed, 1 G3P is produced, requiring 9 ATP and 6 NADPH. To produce one glucose (6C), the cycle must turn six times, using 18 ATP and 12 NADPH.

Stage	Reactants	Products	Key Enzyme
Carbon Fixation	3 CO2 + 3 RuBP	6 3-PGA	Rubisco
Reduction	6 3-PGA + 6 ATP + 6 NADPH	6 G3P	G3P dehydrogenase
Regeneration	5 G3P + 3 ATP	3 RuBP	Multiple enzymes

Summary Table: Photosynthesis Inputs and Outputs

Process	Inputs	Outputs
Light Reactions	H2O, ADP, NADP+, Light	O2, ATP, NADPH
Calvin Cycle	CO2, ATP, NADPH	G3P (→ Glucose), ADP, NADP+
