The Endomembrane System: Structure, Function, and Protein Trafficking

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

The Endomembrane System

Overview of the Endomembrane System

The endomembrane system is a coordinated network of membranes and organelles within eukaryotic cells that compartmentalizes cellular functions and regulates the trafficking of proteins and lipids. This system is essential for the synthesis, processing, and transport of biomolecules, ensuring proper cellular organization and function.

Key Components: Endoplasmic reticulum (ER), Golgi complex, endosomes, lysosomes, and the vesicles that connect them.
Function: Regulates movement (trafficking) of lipids and proteins between organelles, maintaining cellular homeostasis.

Diagram of the endomembrane system in a eukaryotic cell

Components of the Endomembrane System

Endoplasmic Reticulum (ER): Site of protein and lipid synthesis, processing, and sorting.
Golgi Complex: Processes, sorts, and packages proteins and lipids for transport.
Endosomes: Carry and sort material brought into the cell.
Lysosomes: Digest ingested material and unneeded cellular components.

Electron micrograph highlighting endomembrane system organelles

The Endoplasmic Reticulum (ER)

Structure and Types of ER

The ER is a continuous network of flattened sacs, tubules, and vesicles. The membrane-bound sacs are called ER cisternae, and the internal space is the ER lumen. The ER is divided into two types based on structure and function:

Rough ER (RER): Studded with ribosomes, appears as large, flattened sheets. Involved in protein synthesis and processing.
Smooth ER (SER): Lacks ribosomes, consists of smooth, tubular structures. Involved in lipid synthesis and various metabolic processes.

Electron micrographs of rough and smooth ER

Variation in Amounts of Rough and Smooth ER

Both types are present in most eukaryotic cells, but their abundance varies with cell function.
Cells synthesizing secretory proteins have prominent rough ER.
Cells producing steroid hormones have extensive smooth ER.

Functions of the Rough ER

Protein Biosynthesis: Ribosomes on the cytosolic side synthesize proteins for the endomembrane system, plasma membrane, or export.
Cotranslational Import: Newly synthesized proteins are inserted into the ER through a pore complex as they are made.
Other Functions: Initial glycosylation of proteins, polypeptide folding, removal of misfolded proteins, and assembly of multimeric proteins.

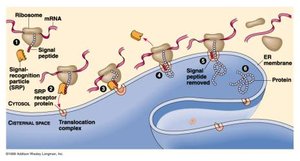

Diagram of cotranslational import into the ER

Functions of the Smooth ER

Drug Detoxification: Involves hydroxylation reactions catalyzed by cytochrome P-450 enzymes, increasing solubility of hydrophobic drugs for excretion.
Carbohydrate Metabolism: Contains glucose-6-phosphatase for glycogen breakdown in liver cells.
Calcium Storage: The sarcoplasmic reticulum (a type of smooth ER) stores calcium ions for muscle contraction.
Steroid Biosynthesis: Site of cholesterol and steroid hormone synthesis, especially in adrenal and Leydig cells.

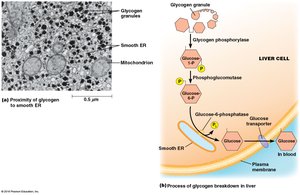

Equation for hydroxylation in drug detoxification Smooth ER and glycogen breakdown in liver cells

Membrane Biosynthesis in the ER

The ER is the primary source of membrane lipids in eukaryotic cells. Fatty acids are synthesized in the cytoplasm and incorporated into the ER membrane. Phospholipids are then transferred to the lumenal side by phospholipid translocators (flippases).

Synthesis of a phospholipid in the ER membrane Phospholipid synthesis and flipping by flippases

The Golgi Complex

Structure and Organization

The Golgi complex is a series of flattened, membrane-bounded cisternae, often organized into stacks. It is functionally and physically linked to the ER and is central to the processing, sorting, and packaging of proteins and lipids.

Cis Face (CGN): Oriented toward the ER; receives vesicles from the ER.
Trans Face (TGN): Oriented toward the plasma membrane; sorts and dispatches vesicles to various destinations.

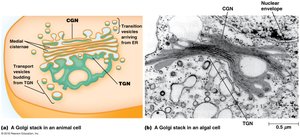

Golgi stack structure and orientation

Functions of the Golgi Complex

Further processing of glycoproteins and membrane lipids from the ER.
Sorting and packaging of molecules for transport to their final destinations.
Central role in membrane and protein trafficking.

Protein Processing in the ER and Golgi

Protein Folding and Quality Control: Occurs in the ER with the help of molecular chaperones (e.g., BiP, protein disulfide isomerase). Misfolded proteins are targeted for degradation (ERAD pathway).
Glycosylation: Addition and modification of carbohydrate side chains to proteins, starting in the ER and completed in the Golgi.

Glycosylation steps in the ER and Golgi Detailed glycosylation pathway and processing

Protein Trafficking and Sorting

Vesicular Transport: Anterograde and Retrograde

Anterograde Transport: Movement of materials from the ER toward the plasma membrane (via the Golgi).
Retrograde Transport: Return of vesicles from the Golgi to the ER, balancing membrane flow and supplying materials for new vesicles.

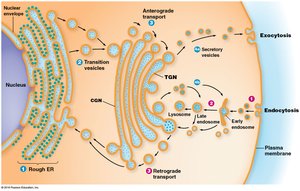

Vesicular trafficking through the endomembrane system Anterograde and retrograde transport in the Golgi

Protein Targeting and Sorting Mechanisms

Proteins contain specific tags (amino acid sequences, hydrophobic domains, or oligosaccharide chains) that direct them to their correct cellular locations.
Two main pathways for sorting:
- Posttranslational Import: For proteins destined for the cytosol, mitochondria, chloroplasts, peroxisomes, or nucleus. Synthesized by free ribosomes and imported after translation.
- Cotranslational Import: For proteins destined for the endomembrane system or secretion. Synthesized by ribosomes attached to the ER and imported during translation.

Posttranslational and cotranslational import pathways

Cotranslational Import and the Signal Hypothesis

Cotranslational import allows polypeptides to enter the ER as they are synthesized. The signal hypothesis states that proteins destined for the ER contain an N-terminal ER signal sequence, which is recognized by the signal recognition particle (SRP). The SRP directs the ribosome to the ER membrane, where the polypeptide is translocated into the ER lumen via the translocon complex.

Signal sequence: 15–30 amino acids, with a positively charged N-terminal, a central hydrophobic region, and a polar region near the cleavage site.
SRP binding pauses translation and targets the complex to the ER membrane.
Translocon facilitates entry of the polypeptide into the ER lumen; signal peptidase removes the signal sequence.

Mechanism of cotranslational import into the ER Stepwise diagram of cotranslational import

Summary Table: Major Functions of the Endomembrane System

Organelle	Main Functions
Rough ER	Protein synthesis, folding, glycosylation, quality control
Smooth ER	Lipid synthesis, drug detoxification, carbohydrate metabolism, calcium storage, steroid biosynthesis
Golgi Complex	Protein and lipid modification, sorting, and packaging
Endosomes	Sorting and transport of endocytosed material
Lysosomes	Degradation of macromolecules and cellular debris

Additional info: The endomembrane system is crucial for maintaining cellular compartmentalization, efficient trafficking, and the regulation of metabolic processes in eukaryotic cells.
