Q33. Using this diagram or a similar version of it, thoroughly explain why photosynthesis and cellular respiration form a continuous cycle. Discuss the individual molecules/components, their relationships, and in what phases of the process the conversions take place. Be sure to assign titles to missing numbers and letters.
Background
Topic: Photosynthesis and Cellular Respiration
This question tests your understanding of how photosynthesis and cellular respiration are interconnected, forming a cycle that sustains life. It requires you to identify key molecules and processes, and explain how energy and matter flow between these two processes.
Key Terms and Concepts:
Photosynthesis: The process by which plants convert light energy into chemical energy (glucose).
Cellular Respiration: The process by which cells break down glucose to release energy (ATP).
Key molecules: CO2, H2O, glucose (C6H12O6), O2, ATP.
Stages: Light reactions, Calvin cycle, glycolysis, citric acid cycle, oxidative phosphorylation.
Key Formulas:
Photosynthesis:
Cellular Respiration:
Step-by-Step Guidance

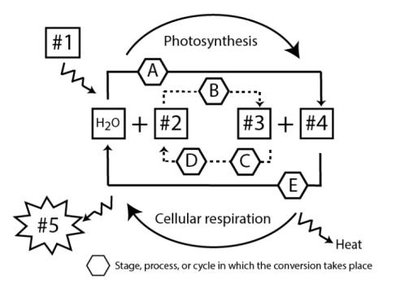

Examine the diagram and identify the main molecules involved: #1 (light), #2 (CO2), #3 (glucose), #4 (O2), and #5 (heat).
Recognize the stages labeled A, B, C, D, and E. A and B are part of photosynthesis (A: light reactions, B: Calvin cycle), while C, D, and E are part of cellular respiration (C: oxidation of pyruvate, D: citric acid cycle, E: oxidative phosphorylation).
Understand that photosynthesis uses light energy (#1) to convert CO2 (#2) and H2O into glucose (#3) and O2 (#4). This occurs in the chloroplasts of plant cells.
Cellular respiration takes glucose (#3) and O2 (#4) and breaks them down to produce CO2 (#2), H2O, and ATP (energy), releasing heat (#5). This occurs in the mitochondria of cells.
Note how the products of photosynthesis (glucose and oxygen) are the reactants for cellular respiration, and vice versa. This forms a continuous cycle, with energy flowing from the sun to living organisms and then dissipating as heat.
Assign the missing titles to the numbers and letters based on their roles in the cycle. For example, #1 is light, #2 is CO2, #3 is glucose, #4 is O2, #5 is heat; A is light reactions, B is Calvin cycle, C is oxidation of pyruvate, D is citric acid cycle, E is oxidative phosphorylation.
Try solving on your own before revealing the answer!
Final Answer:
Photosynthesis and cellular respiration form a continuous cycle because the products of one process are the reactants for the other. In photosynthesis, light energy (#1) is used in the light reactions (A) to split water and produce oxygen (#4), ATP, and NADPH. The Calvin cycle (B) uses CO2 (#2), ATP, and NADPH to produce glucose (#3). Cellular respiration uses glucose (#3) and oxygen (#4) in glycolysis, oxidation of pyruvate (C), citric acid cycle (D), and oxidative phosphorylation (E) to produce CO2 (#2), H2O, ATP, and heat (#5). This cycle ensures a constant flow of energy and matter in living systems.
Titles for missing numbers and letters: #1 = light, #2 = CO2, #3 = glucose, #4 = O2, #5 = heat; A = light reactions, B = Calvin cycle, C = oxidation of pyruvate, D = citric acid cycle, E = oxidative phosphorylation.
This interconnected cycle is essential for life, as it allows energy from the sun to be captured and used by organisms, and then released as heat.
