Molecules and Compounds

Elements to Molecules

When two or more nonmetallic elements combine, they form a molecule. Molecules can consist of the same element (e.g., O2) or different elements (e.g., H2O). The diversity of substances in nature arises from the ability of elements to form compounds, which are substances composed of two or more elements in fixed proportions.

Hydrogen, Oxygen, and Water

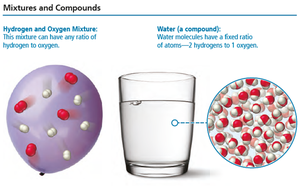

The properties of compounds are often dramatically different from the elements that compose them. For example, hydrogen and oxygen are both gases, but when combined in a 2:1 ratio, they form water, a liquid with unique properties. This transformation illustrates the fundamental difference between elements and the compounds they form.

Law of Definite Proportion

The Law of Definite Proportion states that a chemical compound always contains the same elements in the same proportion by mass. For example, water (H2O) always consists of two hydrogen atoms for every one oxygen atom, regardless of the sample size.

Chemical Bonds

Types of Chemical Bonds

Atoms in compounds are held together by chemical bonds, which lower the potential energy of the system. There are two main types of chemical bonds:

• Ionic bonds: Involve the transfer of electrons from one atom (usually a metal) to another (usually a nonmetal).

• Covalent bonds: Involve the sharing of electrons between two or more nonmetal atoms.

Ionic vs. Covalent Bonds

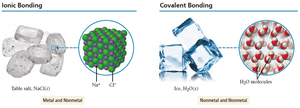

Ionic bonds form between metals and nonmetals, resulting in the formation of cations and anions that are held together by electrostatic forces. Covalent bonds form between nonmetals, where atoms share electrons to achieve stable electron configurations.

Ionic Bonds: Formation and Structure

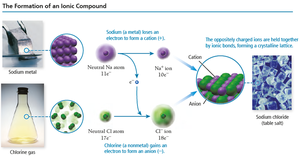

In ionic bonding, a metal atom transfers electrons to a nonmetal atom, forming a cation and an anion. These oppositely charged ions attract each other, forming a regular three-dimensional array known as a crystal lattice.

Covalent Bonds: Molecular Compounds

Covalent bonds occur between nonmetal atoms, where electrons are shared rather than transferred. The resulting compounds are called molecular compounds, and the atoms are held together in discrete molecules.

Representing Compounds

Chemical Formulas

A chemical formula indicates the type and number of each element in a compound. There are three main types of chemical formulas:

• Empirical formula: Shows the simplest whole-number ratio of atoms in a compound.

• Molecular formula: Shows the actual number of atoms of each element in a molecule.

• Structural formula: Shows how atoms are bonded together in a molecule.

Structural Formulas

A structural formula uses lines to represent covalent bonds and shows the arrangement of atoms in a molecule.

Molecular Models

Molecular models provide three-dimensional representations of molecules. The ball-and-stick model shows atoms as balls and bonds as sticks, while the space-filling model shows the relative sizes of atoms and how they fill space in the molecule.

Examples of Molecular Representations

Different compounds can be represented in various ways, including structural formulas, ball-and-stick models, and space-filling models. For example, benzene (C6H6), glucose (C6H12O6), and ammonia (NH3) can each be depicted using these models.

Lewis Structures and the Octet Rule

Lewis Structure Model

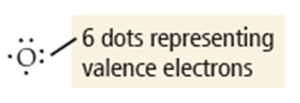

The Lewis model represents valence electrons as dots around the chemical symbol of an element. Lewis structures are used to depict the arrangement of valence electrons in molecules and ions, focusing on the transfer or sharing of electrons during bond formation.

The Octet Rule

The octet rule states that atoms tend to gain, lose, or share electrons to achieve a noble gas configuration, typically eight valence electrons (an octet). Hydrogen and helium are exceptions, aiming for two electrons (a duet). Some elements can have expanded octets, especially those in period 3 or below.

Ionic and Covalent Bonding: Models and Properties

Ionic Bonding Model

Ionic compounds are composed of cations (usually metals) and anions (usually nonmetals) arranged in a crystal lattice. The basic unit is the formula unit, which represents the simplest ratio of ions. Ionic solids are hard, brittle, and conduct electricity when molten or dissolved in water, but not in the solid state.

Covalent Bonding Model

Covalent bonds are directional, with shared electrons localized between the bonded atoms. Covalently bonded compounds exist as discrete molecules, and their properties differ from those of ionic compounds.

Naming Compounds

Naming Ionic Compounds

Ionic compounds are named based on the cation and anion present. For metals with invariant charge (e.g., alkali metals, alkaline earth metals), the metal name is followed by the nonmetal base name with the suffix -ide. For metals with variable charge (transition metals), a Roman numeral indicates the charge.

Naming Molecular Compounds

Molecular compounds (composed of nonmetals) use prefixes to indicate the number of each atom present (e.g., carbon dioxide, dinitrogen tetroxide). The element with the smaller group number is named first; if both are in the same group, the element with the higher period number is named first.

Calculations Involving Compounds

Formula Mass and Molar Mass

The formula mass (or molecular mass) is the sum of the atomic masses of all atoms in a chemical formula. The molar mass is the mass of one mole of a substance, used to convert between mass and number of particles using Avogadro's number ().

Percent Composition

The percent composition of a compound is the percentage by mass of each element in the compound. It is calculated using the formula:

Empirical and Molecular Formulas

The empirical formula gives the simplest whole-number ratio of atoms in a compound, while the molecular formula gives the actual number of atoms. The molecular formula is a whole-number multiple of the empirical formula.

where

Combustion Analysis

Combustion analysis is a technique used to determine the empirical formula of organic compounds by burning a known mass of the compound and measuring the masses of the products (CO2 and H2O).

Organic Compounds

Definition and Characteristics

Organic compounds are primarily composed of carbon and hydrogen, often with oxygen, nitrogen, phosphorus, sulfur, and other elements. Carbon forms four covalent bonds and can create chains, branches, and rings, leading to a vast diversity of organic molecules.

Common Hydrocarbons

Hydrocarbons are organic compounds consisting only of carbon and hydrogen. They are classified based on the types of bonds between carbon atoms (alkanes, alkenes, alkynes, and aromatic hydrocarbons).

Additional info: This summary covers the core concepts of molecules and compounds, types of chemical bonds, chemical formulas, Lewis structures, naming conventions, and calculations involving compounds, as well as an introduction to organic compounds. The included images reinforce key visual concepts such as molecular models, bonding types, and Lewis structures.
