Structure and Bonding

Introduction to Organic Chemistry

Organic chemistry is the study of carbon-containing compounds, which form the basis of all life on Earth. The unique bonding properties of carbon allow for a vast diversity of molecular structures and functions.

• Organic molecules are primarily composed of carbon, hydrogen, oxygen, nitrogen, and halogens.

• Understanding the structure and bonding of these molecules is essential for predicting their reactivity and properties.

Atomic Structure and Orbitals

Atoms consist of a dense, positively charged nucleus surrounded by electrons in defined regions called orbitals. The arrangement of electrons determines the chemical behavior of an atom.

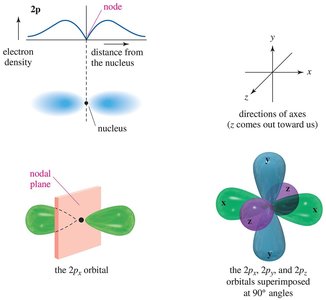

• Atomic orbitals are regions in space where electrons are likely to be found.

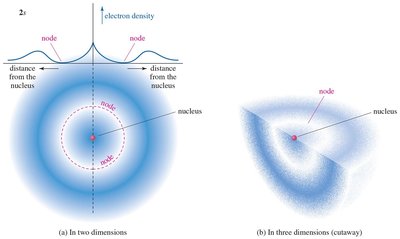

• The 2s and 2p orbitals are particularly important for organic chemistry, as they are involved in bonding for second-row elements like carbon, nitrogen, and oxygen.

• Nodes are regions where the probability of finding an electron is zero.

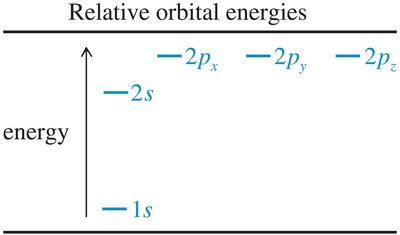

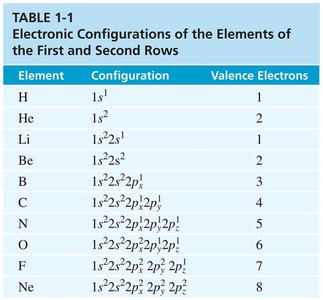

Electronic Configurations

The electronic configuration of an atom describes the distribution of electrons among the various orbitals. Valence electrons, found in the outermost shell, are responsible for chemical bonding.

• The aufbau principle states that electrons fill the lowest energy orbitals first.

• Hund’s rule states that electrons occupy degenerate orbitals singly before pairing up.

• Isotopes are atoms with the same number of protons but different numbers of neutrons.

Types of Chemical Bonds

Atoms form bonds to achieve stable electron configurations, often resembling those of noble gases. The two main types of bonds in organic chemistry are ionic and covalent bonds.

• Ionic bonds involve the transfer of electrons from one atom to another, resulting in oppositely charged ions that attract each other.

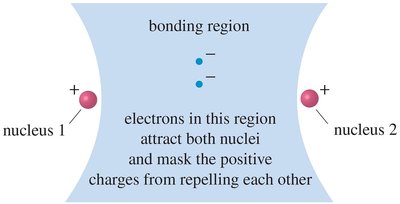

• Covalent bonds involve the sharing of electrons between atoms. If electrons are shared equally, the bond is nonpolar; if unequally, the bond is polar covalent.

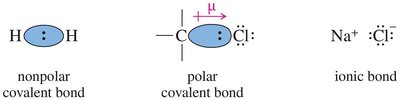

Electronegativity and Bond Polarity

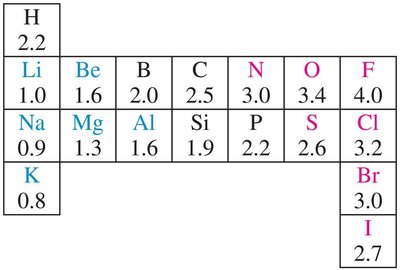

Electronegativity is a measure of an atom's ability to attract electrons in a bond. The difference in electronegativity between two atoms determines the bond's polarity.

• A nonpolar covalent bond has equal sharing of electrons.

• A polar covalent bond has unequal sharing, resulting in partial charges (δ+ and δ−).

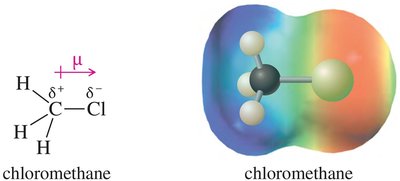

• Dipole moment (μ) quantifies the separation of charge in a molecule:

Lewis Structures and Formal Charge

Lewis structures are diagrams that show the bonding between atoms and the arrangement of valence electrons. Formal charge helps keep track of electron distribution in molecules.

• Lewis structures use dots for electrons and lines for bonds.

• Formal charge is calculated as:

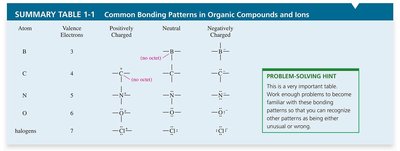

Bonding Patterns and Lone Pairs

Atoms in organic molecules follow common bonding patterns based on their valence electrons. Nonbonding electrons, or lone pairs, are valence electrons not involved in bonding.

• Carbon typically forms four bonds, nitrogen three, oxygen two, and hydrogen one.

• Lone pairs influence molecular shape and reactivity.

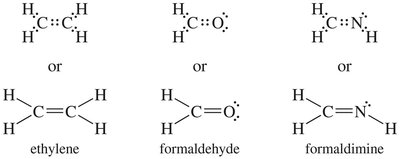

Multiple Bonds

Atoms can share more than one pair of electrons, resulting in double or triple bonds. These bonds affect the geometry and reactivity of molecules.

• A double bond consists of one sigma (σ) and one pi (π) bond.

• A triple bond consists of one sigma and two pi bonds.

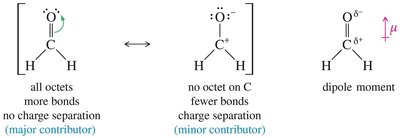

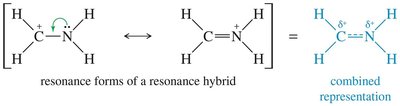

Resonance Structures

Some molecules cannot be adequately represented by a single Lewis structure. Resonance forms are alternative structures that differ only in the arrangement of electrons, not atoms.

• The true structure is a resonance hybrid, which is a weighted average of all valid resonance forms.

• Major contributors have complete octets, more bonds, negative charges on electronegative atoms, and minimal charge separation.

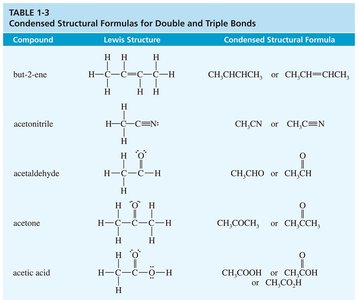

Condensed and Line-Angle Structural Formulas

Organic molecules can be represented in several ways to simplify complex structures:

• Condensed structural formulas omit some or all bonds, grouping atoms together (e.g., CH3CH2OH).

• Line-angle (skeletal) formulas use lines to represent bonds and vertices for carbon atoms; hydrogens attached to carbons are usually omitted.

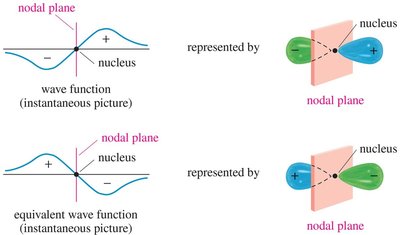

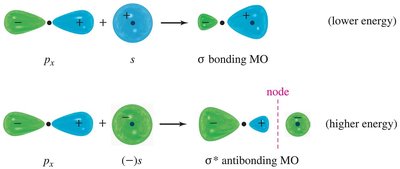

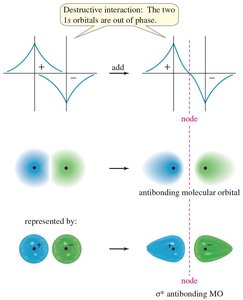

Wave Properties of Electrons and Molecular Orbitals

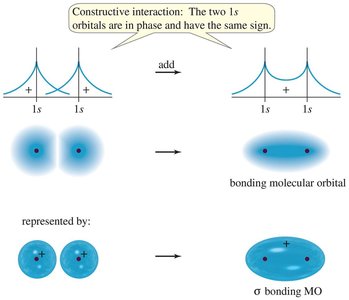

Electrons exhibit both particle and wave properties. The combination of atomic orbitals leads to the formation of molecular orbitals, which can be bonding or antibonding.

• Sigma (σ) bonds are formed by head-on overlap of orbitals, with electron density along the axis connecting nuclei.

• Pi (π) bonds are formed by side-to-side overlap of p orbitals, with electron density above and below the bonding axis.

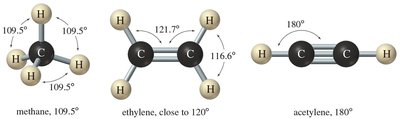

Hybridization and Molecular Geometry

Hybridization explains the observed shapes of molecules by combining atomic orbitals into new hybrid orbitals. The geometry depends on the number and type of hybrid orbitals formed.

• sp hybridization: Linear geometry, 180° bond angles.

• sp2 hybridization: Trigonal planar geometry, 120° bond angles.

• sp3 hybridization: Tetrahedral geometry, 109.5° bond angles.

Summary Table: Hybridization and Geometry

Additional info:

• Understanding these foundational concepts is essential for all subsequent topics in organic chemistry, including reactivity, mechanisms, and spectroscopy.
