The Cytoskeleton

Overview of the Cytoskeleton

The cytoskeleton is a dynamic network of protein filaments that provides structural support, organization, and motility to cells. It is essential for maintaining cell shape, enabling intracellular transport, and facilitating cell division.

Cytoskeleton Structure: The cytoskeleton consists of three main types of filaments: microtubules, microfilaments, and intermediate filaments.
Dynamic Nature: The cytoskeleton is constantly remodeled, allowing cells to adapt to changing conditions.
Attachment: Most cellular components are anchored to the cytoskeleton.

Detailed illustration of cell interior showing cytoskeleton and organelles

Types of Cytoskeletal Filaments

Each filament type has distinct structural and functional properties.

Microtubules: Hollow tubes composed of tubulin dimers. They serve as tracks for motor proteins and are crucial for cell division.
Microfilaments (Actin Filaments): Thin, flexible filaments made of actin. They are involved in cell movement, muscle contraction, and structural support.
Intermediate Filaments: Rope-like filaments that provide mechanical stability and resistance to stress.

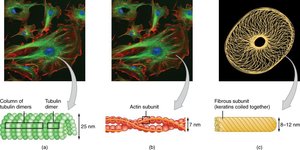

Fluorescent image of cells showing cytoskeletal filaments Diagram comparing microtubules, actin filaments, and intermediate filaments

Intermediate Filaments

Intermediate filaments are the most stable cytoskeletal elements, providing structural integrity and protection against mechanical stress.

Stability: Generally remain intact but can be disassembled and repurposed.
Function: Prevent mechanical damage and maintain cell shape.

Fluorescent image highlighting intermediate filaments in a cell Diagram of intermediate filament structure from monomer to filament bundle

Microfilaments (Actin and Myosin)

Microfilaments are involved in cell motility, muscle contraction, and structural support. Actin and myosin interact to produce movement.

Actin: Forms the core of microfilaments, enabling cell movement and shape changes.
Myosin: Motor protein that interacts with actin for muscle contraction and other motile processes.
Applications: Found in muscles, flagella, and other motile structures.

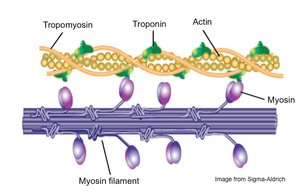

Diagram of actin and myosin filaments in muscle contraction

Microtubules

Microtubules are highly dynamic structures that are constantly assembled and disassembled. They are essential for intracellular transport and cell division.

Dynamic Instability: Microtubules undergo rapid polymerization and depolymerization.
Function: Serve as tracks for motor proteins and play a key role in mitosis.

Diagram of microtubule polymerization and depolymerization

Microscopy

Introduction to Microscopy

Microscopy is the technique used to visualize cells and their internal structures. It has evolved from simple light microscopes to advanced electron and fluorescence microscopes.

Resolution: Limited by the wavelength of light or electrons used.
Contrast: Enhanced by staining or specialized optics.
Living Cells: Some techniques allow observation of living cells.

Types of Light Microscopy

Light microscopy uses visible light to illuminate specimens. Different methods provide varying levels of contrast and detail.

Brightfield Microscopy: Standard method; specimens can be unstained (living) or stained (dead).
Phase-Contrast Microscopy: Enhances contrast in living cells without staining.

Brightfield image of unstained specimen Brightfield image of stained specimen Phase-contrast image of living cells

Staining Techniques

Staining is used to increase contrast and highlight specific cellular components.

Basic Stains: Bind to negatively charged molecules (e.g., nucleic acids).
Acidic Stains: Bind to positively charged molecules (e.g., proteins).
Negative Stains: Stain the background, leaving cells unstained.

Stain Type	Specific Dyes	Purpose	Outcome	Sample Images
Basic stains	Methylene blue, crystal violet, malachite green, basic fuchsin, carbolfuchsin, safranin	Stain negatively charged molecules and structures, such as nucleic acids and proteins	Positive stain	Cell structures highlighted
Acidic stains	Eosin, acid fuchsin, rose bengal, Congo red	Stain positively charged molecules and structures, such as proteins	Can be either a positive or negative stain, depending on the cell's chemistry	Cell structures highlighted
Negative stains	India ink, nigrosin	Stains background, not specimen	Dark background with light specimen	Cell outline visible

Table of simple stains and their purposes

Confocal and Fluorescence Microscopy

Confocal microscopy uses lasers and pinholes to produce high-resolution images of fluorescently labeled specimens. Fluorescence microscopy allows visualization of specific proteins and structures using fluorescent dyes or proteins.

Fluorescent Proteins: Green Fluorescent Protein (GFP) is used to tag proteins for visualization.
Applications: Enables study of living cells and dynamic processes.

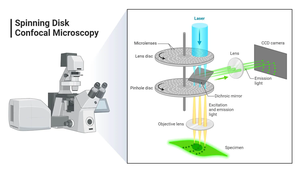

Diagram of spinning disk confocal microscopy

Green Fluorescent Protein (GFP)

Tracking Proteins with GFP

GFP is a protein originally found in jellyfish that fluoresces green under specific light. It is used as a molecular tag to visualize proteins and cellular structures in living and preserved cells.

Visualization: Requires a microscope with fluorescent filters.
Applications: Used to track protein movement and localization.

Diagram showing GFP structure, cell labeled with GFP, and various fluorescent protein colors

Electron Microscopy

Principles of Electron Microscopy

Electron microscopy uses electron beams instead of light to achieve much higher resolution. It is used to study cell surfaces and internal structures in great detail.

Scanning Electron Microscopy (SEM): Visualizes cell surfaces.
Transmission Electron Microscopy (TEM): Reveals internal cell structures.
Specimen Preparation: Requires preserved (dead) specimens.

Modern electron microscope setup Comparison of SEM and TEM images of pollen grains

Historical Microscopy and Cell Discovery

Robert Hooke and Early Microscopy

Robert Hooke was a pioneer in microscopy, using simple microscopes to observe and describe cells. He coined the term "cell" after observing cork tissue.

Micrographia: Hooke's book documenting his observations.
Cell Discovery: Cork cells appeared as "little rooms" under the microscope.

Illustration of Hooke's microscope Portrait of Robert Hooke Hooke's drawing of cork cells Hooke's drawing of a flea from Micrographia

Summary Table: Cytoskeletal Filaments

Filament Type	Structure	Function	Examples
Microtubules	Hollow tubes of tubulin	Cell division, transport, structure	Mitotic spindle, cilia, flagella
Microfilaments	Thin filaments of actin	Motility, shape, contraction	Muscle fibers, cell cortex
Intermediate Filaments	Rope-like, stable	Mechanical stability	Keratin, nuclear lamina

Diagram comparing cytoskeletal filaments

Additional info: Expanded explanations and context were added to clarify cytoskeletal functions, microscopy techniques, and historical discoveries for exam preparation.
