A Preview of Cell Biology

Introduction to Cell Biology

Cell biology is the study of cells, the fundamental units of life. Cells are dynamic entities capable of growth, reproduction, and specialization. The field has evolved through the convergence of cytology, genetics, and biochemistry, making it one of the most dynamic disciplines in biology.

• Cell: The basic structural and functional unit of all living organisms.

• Specialization: Cells can differentiate to perform specific functions.

• Modern Cell Biology: Integrates structural, functional, and genetic perspectives.

The Cell Theory: A Brief History

Early Observations and the Birth of Cell Theory

The development of cell theory was driven by advances in microscopy and careful observation. Robert Hooke first described cells in cork, while Antonie van Leeuwenhoek improved lens technology and observed living cells, which he called "animalcules." The cell theory was later formalized by Schleiden, Schwann, and Virchow.

• Robert Hooke (1665): Observed compartments in cork and coined the term "cell."

• Antonie van Leeuwenhoek (1673): Developed single-lens microscopes (up to 300X) and observed bacteria, sperm, and protozoa.

• Cell Theory (1839, Schwann):

  1. All organisms consist of one or more cells.

  2. The cell is the basic unit of structure for all organisms.

  3. (Virchow, 1855) All cells arise only from preexisting cells.

Technological Advances in Microscopy

Microscopy was essential for the development of cell biology. Early microscopes had limited magnification and resolution, but improvements allowed for the discovery of subcellular structures and the formulation of cell theory.

• Magnification: The process of enlarging the appearance of an object.

• Resolution: The ability to distinguish two points as separate; higher resolution reveals finer details.

• Compound Microscope: Uses two lenses for greater magnification and resolution; enabled the discovery of the nucleus and other organelles.

The Emergence of Modern Cell Biology

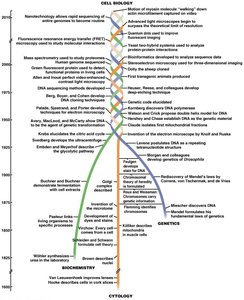

Three Strands of Inquiry

Modern cell biology integrates three major strands: cytology, biochemistry, and genetics. Each contributes unique perspectives and techniques to the study of cells.

• Cytology: Focuses on cellular structure using optical techniques.

• Biochemistry: Examines cellular structure and function at the molecular level.

• Genetics: Studies information flow, heredity, and genome sequencing.

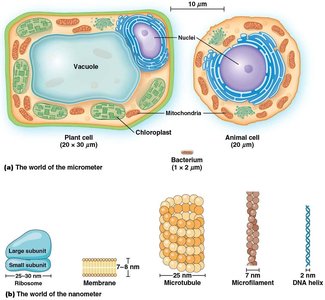

Cellular Dimensions and Measurement Units

Understanding cell size and the scale of cellular components is crucial in cell biology. Different units are used to measure cells, organelles, and molecules.

• Micrometer (μm): 1 μm = m; used for cells and organelles.

• Nanometer (nm): 1 nm = m; used for molecules and subcellular structures.

• Angstrom (Å): 1 Å = 0.1 nm; used for atomic-scale measurements.

Microscopy: Tools and Techniques

Light Microscopy

The light microscope was the first tool for cytologists, allowing the visualization of nuclei, mitochondria, and chloroplasts. Brightfield microscopy uses white light and typically requires staining, which can distort living cells.

• Brightfield Microscopy: White light passes through a specimen; best for stained, fixed samples.

• Staining: Enhances contrast but may introduce artifacts.

Improvements in Microscopy

Technological advances such as the microtome and new dyes improved the preparation and visualization of cellular structures. The microtome allows for thin tissue sections, and differential staining highlights specific cell components.

• Microtome: Device for slicing thin sections of tissue (4–10 μm thick).

• Staining: Hematoxylin and eosin (H&E) staining differentiates acidic (blue) and basic (pink) molecules.

• Immunostaining: Uses labeled antibodies to detect specific molecules.

Optical Resolution and Types of Light Microscopes

Resolution is as important as magnification for visualizing fine details. The quality of lenses determines optical resolution. Various types of light microscopes are used for different applications.

• Dissecting Microscope: Low magnification, used for larger specimens.

• Compound Microscope: High magnification, used for thin sections.

• Inverted Compound Microscope: Used for observing living cultures.

Specialized Light Microscopy Techniques

Specialized optical techniques allow for the observation of living cells and specific cellular components without staining.

• Phase-Contrast Microscopy: Enhances contrast in transparent specimens by exploiting differences in refractive index.

• Differential Interference Contrast (DIC) Microscopy: Uses polarized light to produce high-contrast images of unstained cells.

• Fluorescence Microscopy: Detects fluorescent dyes or labels to localize specific molecules within cells.

• Confocal Microscopy: Uses lasers to obtain sharp, 3D images of fluorescently labeled specimens.

Fluorescence and Confocal Microscopy

Fluorescence microscopy uses fluorescent dyes or proteins (e.g., GFP) to visualize specific proteins, DNA, or other molecules. Antibodies can be labeled with fluorescent tags to detect target antigens. Confocal microscopy combines images from multiple layers to create 3D reconstructions.

• Antibody: Protein that binds specifically to an antigen.

• Green Fluorescent Protein (GFP): Used to study protein localization in living cells.

• Confocal Microscopy: Provides high-resolution, 3D images of cells and tissues.

Limits of Resolution

The limit of resolution is the minimum distance at which two points can be distinguished as separate. For light microscopes, this is about 200–350 nm, while electron microscopes achieve much higher resolution.

• Resolving Power: Increases as the limit of resolution decreases.

• Light Microscope Limit: 200–350 nm.

• Electron Microscope Limit: 0.1–0.2 nm.

Electron Microscopy

Electron microscopes use beams of electrons instead of light, allowing for much higher magnification and resolution. Transmission electron microscopy (TEM) and scanning electron microscopy (SEM) are the two main types.

• Transmission Electron Microscopy (TEM): Electrons pass through thin specimens to reveal internal structures.

• Scanning Electron Microscopy (SEM): Electrons scan the specimen surface, producing detailed 3D images.

• Resolution: Up to 0.1–0.2 nm; magnification up to 100,000x.

Summary Table: Comparison of Microscopy Techniques

Additional info: The integration of cytology, biochemistry, and genetics continues to drive discoveries in cell biology, including advanced imaging, genome sequencing, and molecular analysis techniques.
