Biotechnology & DNA Technology

Introduction to DNA-Based Technology

DNA-based technology encompasses a range of techniques used to manipulate DNA and study gene expression. These methods are foundational in modern microbiology, genetics, and biotechnology, enabling advancements such as vaccine development, genetically modified organisms, and the analysis of inheritance patterns.

• Definition: DNA-based technology refers to laboratory techniques for analyzing, modifying, and utilizing DNA for research and practical applications.

• Applications: Includes developing vaccines (e.g., COVID-19 vaccines), genetically modifying plants for agriculture, and tracking inheritance patterns in families.

• Example: Researchers use DNA-based technologies to study gene expression, develop disease-resistant crops, and diagnose genetic disorders.

Overview of DNA-Based Technologies

DNA-based technologies can be organized into several major categories, each with specific techniques and applications. These include DNA cloning, polymerase chain reaction (PCR), gel electrophoresis, Southern blotting, DNA fingerprinting, and DNA sequencing.

• DNA Cloning: Creating recombinant DNA and transforming it into host cells for replication and expression.

• PCR: Amplifying specific DNA sequences rapidly in vitro.

• Analysis of DNA Samples: Techniques such as gel electrophoresis, Southern blotting, and DNA fingerprinting for separating, identifying, and comparing DNA fragments.

• DNA Sequencing: Determining the exact nucleotide sequence of DNA molecules.

DNA Cloning and Recombinant DNA Technology

Introduction to DNA Cloning

DNA cloning is the process of creating multiple identical copies of a DNA fragment, such as a gene, within a host cell. This is achieved through a series of biochemical reactions that produce recombinant DNA, which is then introduced into a host organism for replication.

• Cloning: The process of making identical copies of a DNA sequence.

• Recombinant DNA: DNA molecules formed by combining DNA from two different sources, often from different species.

• Cloning Vectors: DNA molecules (commonly plasmids) used to carry foreign DNA into a host cell for replication.

• Example: Creating recombinant DNA plasmids to be used as cloning vectors in bacteria.

Steps to DNA Cloning

The process of DNA cloning involves two main steps: creating recombinant DNA and transforming it into a host cell. Restriction enzymes and DNA ligase are essential for cutting and joining DNA fragments, respectively.

• Step 1: Create Recombinant DNA

  • Restriction enzymes cut DNA at specific sequences (restriction sites), producing sticky ends.

  • DNA ligase joins the sticky ends, forming recombinant DNA.

• Step 2: Transform Recombinant DNA

  • The recombinant DNA is introduced into a host cell (e.g., E. coli) via transformation.

  • Transformed cells are selected using phenotypic markers, such as antibiotic resistance.

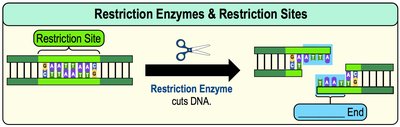

Restriction Enzymes and Ligation

Restriction enzymes recognize and cut specific DNA sequences, generating fragments with sticky or blunt ends. DNA ligase is then used to join these fragments, enabling the construction of recombinant DNA molecules.

• Restriction Enzymes: Enzymes that cleave DNA at specific nucleotide sequences (restriction sites).

• Sticky Ends: Single-stranded overhangs produced by restriction enzyme digestion, facilitating the joining of DNA fragments.

• DNA Ligase: Enzyme that forms phosphodiester bonds between adjacent nucleotides, sealing the DNA backbone.

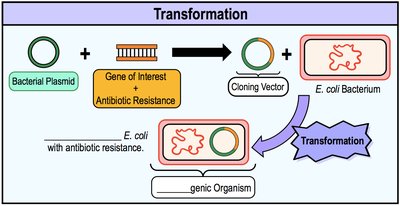

Transformation and Selection

Transformation is the process by which foreign DNA is introduced into a host cell. The resulting organism, known as a transgenic organism, expresses the introduced gene. Selection markers, such as antibiotic resistance, are used to identify successfully transformed cells.

• Transformation: Uptake of foreign DNA by a cell, leading to genetic modification.

• Transgenic Organism: An organism that contains and expresses recombinant DNA from another species.

• Selection Markers: Genes (e.g., antibiotic resistance) used to identify cells that have incorporated the recombinant DNA.

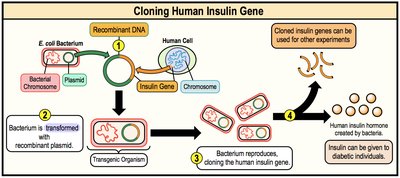

Application: Cloning the Human Insulin Gene

One of the most significant applications of DNA cloning is the production of human insulin in bacteria. By inserting the human insulin gene into a bacterial plasmid and transforming E. coli, large quantities of insulin can be produced for medical use.

• Process: The human insulin gene is inserted into a plasmid, which is then introduced into E. coli. The bacteria express the gene and produce insulin, which is harvested and purified for therapeutic use.

Polymerase Chain Reaction (PCR)

Introduction to PCR

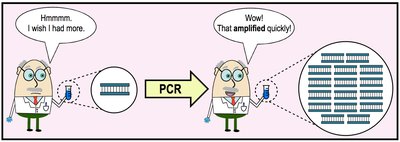

The polymerase chain reaction (PCR) is a technique used to rapidly amplify a specific DNA sequence in vitro. PCR is highly efficient and can generate millions of copies of a target DNA sequence from a small initial sample.

• Amplification: The process of making multiple copies of a DNA segment.

• In Vitro: PCR occurs in a test tube, outside of living cells.

• Applications: Used in forensic science, medical diagnostics, and research.

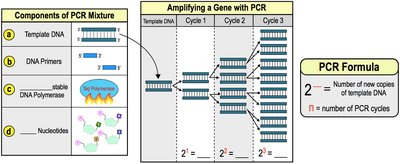

Components of PCR

PCR requires several key components: template DNA, primers, a thermostable DNA polymerase, and deoxyribonucleotides (dNTPs).

• Template DNA: The DNA sequence to be amplified.

• Primers: Short DNA sequences that are complementary to the target region and provide a starting point for DNA synthesis.

• Thermostable DNA Polymerase: An enzyme (e.g., Taq polymerase) that synthesizes new DNA strands and withstands high temperatures.

• dNTPs: The building blocks for new DNA strand synthesis.

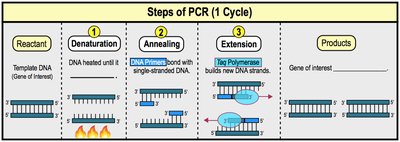

Steps of PCR

PCR consists of three main steps that are repeated for multiple cycles, resulting in exponential amplification of the target DNA.

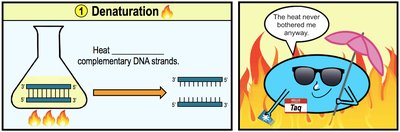

• 1. Denaturation: The reaction mixture is heated to 95°C to separate the double-stranded DNA into single strands.

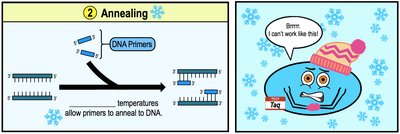

• 2. Annealing: The temperature is lowered to ~55°C to allow primers to bind (anneal) to their complementary sequences on the single-stranded DNA.

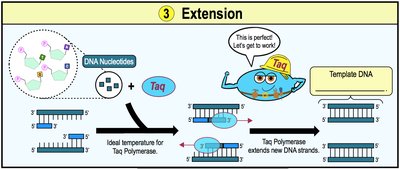

• 3. Extension: The temperature is raised to 72°C, the optimal temperature for Taq polymerase to synthesize new DNA strands by extending from the primers.

Analysis of DNA Samples

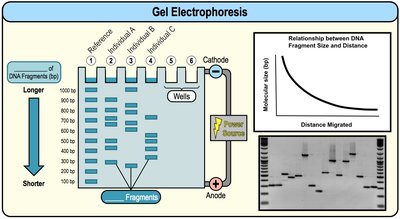

Gel Electrophoresis

Gel electrophoresis is a technique used to separate and visualize DNA fragments based on size. DNA samples are loaded into a gel matrix and subjected to an electric current, causing negatively charged DNA to migrate toward the positive electrode. Smaller fragments move faster and farther than larger ones.

• Cathode: The negative end where DNA samples are loaded.

• Anode: The positive end toward which DNA migrates.

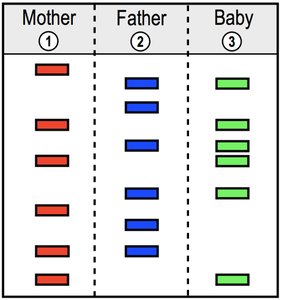

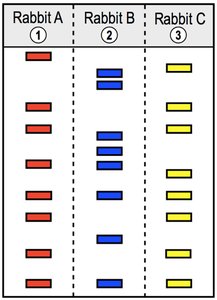

• Interpretation: Band patterns can be used to compare genetic similarity, identify individuals, or analyze genetic markers.

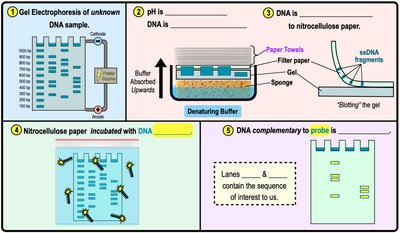

Southern Blotting

Southern blotting is a method for detecting specific DNA sequences within a complex mixture. After gel electrophoresis, DNA fragments are transferred to a membrane and hybridized with a labeled probe that binds to the sequence of interest.

• Probe: A single-stranded, labeled DNA molecule complementary to the target sequence.

• Steps:

  1. Separate DNA fragments by gel electrophoresis.

  2. Denature DNA to single strands.

  3. Transfer DNA to a nitrocellulose membrane.

  4. Hybridize with a labeled probe.

  5. Detect probe binding to identify the presence of the target sequence.

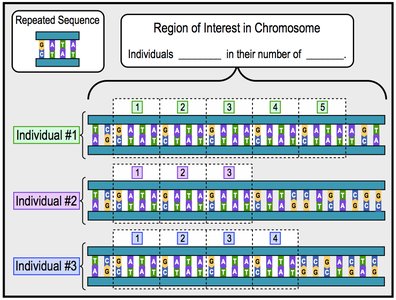

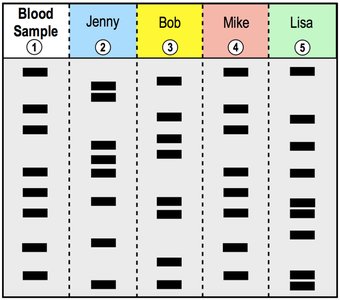

DNA Fingerprinting

DNA fingerprinting uses genetic markers, such as short tandem repeats (STRs), to identify individuals. STRs are short, repeated DNA sequences that vary in number among individuals, making them useful for forensic analysis and paternity testing.

• Genetic Markers: DNA sequences with known locations that are highly variable among individuals.

• STRs: Short tandem repeats, typically 2-5 nucleotides long, used for identification.

• Application: Comparing STR patterns from different samples to determine identity or relatedness.

DNA Sequencing

Introduction to DNA Sequencing

DNA sequencing determines the precise order of nucleotides in a DNA molecule. The Sanger (dideoxy) method is a classic technique that uses chain-terminating nucleotides (ddNTPs) to generate DNA fragments of varying lengths, which are then separated by gel electrophoresis to deduce the sequence.

• Dideoxy Nucleotides (ddNTPs): Modified nucleotides lacking a 3' OH group, causing chain termination during DNA synthesis.

• Chain-Termination PCR: Four separate reactions, each with a different ddNTP, produce fragments ending at each nucleotide position.

• Gel Analysis: Fragments are separated by size, and the sequence is read from the gel.
