What Is Organic Chemistry?

Definition and Historical Context

Organic chemistry is the study of organic compounds, which are primarily based on carbon. Historically, organic compounds were thought to be derived only from living organisms and required a 'vital force,' while inorganic compounds came from minerals. The modern definition classifies organic compounds as those containing carbon, regardless of their origin.

• Early definition: Organic compounds from living organisms; inorganic from minerals.

• Current definition: Organic compounds are carbon-based.

• Example: The synthesis of urea from ammonium cyanate demonstrated that organic compounds can be synthesized from inorganic sources, disproving the vital force theory.

What Makes Carbon So Special?

Position in the Periodic Table and Bonding Behavior

Carbon is unique because it shares electrons rather than giving up or accepting them, allowing it to form stable covalent bonds with many elements, including itself. This property is fundamental to the diversity of organic molecules.

• Atoms to the left of carbon: Tend to lose electrons.

• Atoms to the right of carbon: Tend to gain electrons.

• Carbon: Shares electrons, forming covalent bonds.

The Structure of an Atom

Subatomic Particles and Atomic Number

An atom consists of a nucleus containing protons and neutrons, surrounded by an electron cloud. The atomic number equals the number of protons and defines the element. For carbon, the atomic number is 6, so a neutral carbon atom has 6 protons and 6 electrons.

• Protons: Positively charged

• Neutrons: No charge

• Electrons: Negatively charged

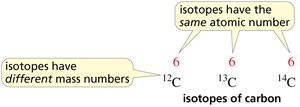

Isotopes

Definition and Examples

Isotopes are atoms of the same element with the same atomic number but different mass numbers due to varying numbers of neutrons. Carbon has three naturally occurring isotopes: 12C, 13C, and 14C.

• Isotopes: Same atomic number, different mass numbers.

• Example: 12C, 13C, 14C all have 6 protons but different numbers of neutrons.

The Distribution of Electrons in an Atom

Electron Shells and Orbitals

Electrons occupy shells around the nucleus, with the first shell being closest and lowest in energy. Within each shell, electrons fill atomic orbitals according to specific principles:

• Aufbau principle: Electrons fill the lowest energy orbitals first.

• Pauli exclusion principle: Each orbital holds a maximum of two electrons with opposite spins.

• Hund’s rule: Electrons occupy empty degenerate orbitals singly before pairing up.

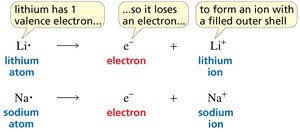

Electron Loss and Gain: Ions

Formation of Cations and Anions

Atoms achieve stable electron configurations by losing or gaining electrons. Atoms in the first column of the periodic table (e.g., lithium, sodium) lose electrons to form cations, while atoms on the right (e.g., fluorine, chlorine) gain electrons to form anions.

• Cations: Formed by loss of electrons (e.g., Li+, Na+).

• Anions: Formed by gain of electrons (e.g., F-, Cl-).

Hydrogen: Special Case

Hydrogen Ion Formation

Hydrogen can either lose its single electron to form a proton (H+) or gain an electron to form a hydride ion (H-), achieving a stable electron configuration in both cases.

• H+ (proton): Outer shell is empty.

• H- (hydride): Outer shell is filled.

Achieving a Filled Outer Shell by Sharing Electrons

Covalent Bond Formation

Atoms can achieve filled outer shells by sharing electrons, forming covalent bonds. This is the primary bonding mechanism in organic molecules.

• Covalent bond: Formed by sharing electrons between atoms.

• Example: Two fluorine atoms share electrons to form F2; two hydrogen atoms share electrons to form H2.

How Many Bonds Does an Atom Form?

Octet Rule and Bonding Patterns

The number of bonds an atom forms is generally determined by the octet rule (or duet rule for hydrogen). Carbon forms four bonds, nitrogen three, oxygen two, and halogens one. Phosphorus and sulfur can expand their octet due to available d orbitals.

• Carbon: 4 bonds

• Nitrogen: 3 bonds

• Oxygen: 2 bonds

• Halogens: 1 bond

• Phosphorus/Sulfur: Can form more than 4 bonds

Nonpolar and Polar Covalent Bonds

Electronegativity and Bond Polarity

The polarity of a covalent bond depends on the difference in electronegativity between the bonded atoms. Nonpolar covalent bonds occur between atoms with similar electronegativities, while polar covalent bonds occur between atoms with different electronegativities, resulting in partial charges.

• Nonpolar covalent bond: Electrons shared equally (e.g., H–H, C–H).

• Polar covalent bond: Electrons shared unequally (e.g., H–Cl, H–O).

• Bond polarity: Indicated by an arrow pointing toward the more electronegative atom.

Electronegativity Difference and Bond Type

Classification of Bonds

The greater the difference in electronegativity, the more polar the bond. If the difference is large enough, the bond becomes ionic.

• Nonpolar covalent: Small or zero electronegativity difference.

• Polar covalent: Moderate electronegativity difference.

• Ionic: Large electronegativity difference.

Dipole Moment of a Bond

Definition and Significance

The dipole moment is a measure of bond polarity, depending on both the magnitude of the charge separation and the distance between charges. The greater the electronegativity difference, the larger the dipole moment.

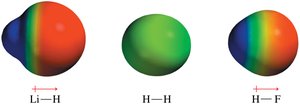

Electrostatic Potential Maps

Visualizing Electron Density

Electrostatic potential maps use color gradients to show regions of electron richness (negative) and electron deficiency (positive) in molecules, helping visualize bond polarity and reactivity.

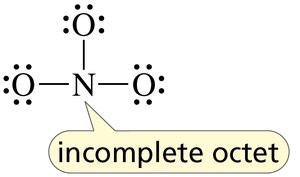

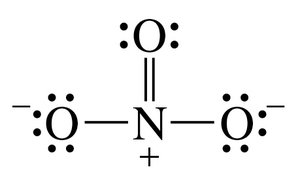

Lewis Structures

Drawing and Interpreting Lewis Structures

Lewis structures depict the arrangement of atoms, bonds, lone pairs, and formal charges in a molecule. They are essential for understanding molecular structure and reactivity.

• Lone pairs: Non-bonding electrons shown as dots.

• Formal charge: Calculated to determine electron distribution.

Bonding Patterns and Formal Charges

Common Bonding Patterns for Main Group Elements

Each main group element has a typical bonding pattern. Deviations from these patterns result in formal charges.

• Carbon: 4 bonds (neutral)

• Nitrogen: 3 bonds, 1 lone pair (neutral)

• Oxygen: 2 bonds, 2 lone pairs (neutral)

• Halogens: 1 bond, 3 lone pairs (neutral)

• Hydrogen: 1 bond (neutral)

Drawing Lewis Structures

Steps for Drawing Lewis Structures

To draw a Lewis structure:

1. Count total valence electrons (add/subtract for ions).

2. Arrange atoms and connect with single bonds.

3. Complete octets (or duets for H) with lone pairs.

4. Form multiple bonds if necessary to satisfy octets.

5. Check for formal charges and minimize them.

Other Structural Representations

Kekulé, Condensed, and Skeletal Structures

Organic molecules can be represented in several ways:

• Kekulé structures: Show all atoms and bonds, omit lone pairs.

• Condensed structures: Omit some or all bonds, group atoms together.

• Skeletal structures: Show only carbon skeleton and heteroatoms; hydrogens on carbons are implied.

Atomic Orbitals and Hybridization

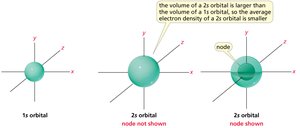

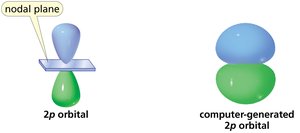

s and p Atomic Orbitals

Atomic orbitals are regions in space where electrons are likely to be found. The s orbital is spherical, while p orbitals are dumbbell-shaped and have different phases. Hybridization is the mixing of atomic orbitals to form new hybrid orbitals for bonding.

• s orbital: Spherical shape

• p orbital: Dumbbell shape, three orientations (x, y, z)

• Hybridization: sp3, sp2, sp depending on bonding environment

Bond Formation: Sigma and Pi Bonds

Sigma (σ) and Pi (π) Bonds

Sigma bonds are formed by end-to-end overlap of orbitals, while pi bonds are formed by side-to-side overlap of p orbitals. Single bonds are always sigma bonds; double and triple bonds contain one sigma and one or two pi bonds, respectively.

• Sigma bond (σ): End-to-end overlap

• Pi bond (π): Side-to-side overlap of p orbitals

Hybridization and Molecular Geometry

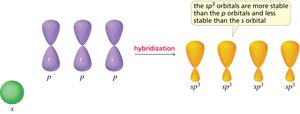

sp3, sp2, and sp Hybridization

The type of hybridization determines the geometry of the molecule:

• sp3: Tetrahedral geometry, 109.5° bond angles (e.g., methane, CH4).

• sp2: Trigonal planar geometry, 120° bond angles (e.g., ethene, C2H4).

• sp: Linear geometry, 180° bond angles (e.g., ethyne, C2H2).

Bond Strength, Bond Length, and s Character

Relationship Between Bond Order, Length, and Strength

The more bonds between two atoms, the shorter and stronger the bond. The more s character in a hybrid orbital, the shorter and stronger the bond, and the larger the bond angle.

• Single bond: Longest and weakest

• Double bond: Intermediate length and strength

• Triple bond: Shortest and strongest

Dipole Moments of Molecules

Overall Molecular Polarity

The dipole moment of a molecule depends on the vector sum of individual bond dipoles. Symmetrical molecules may have polar bonds but no overall dipole moment due to cancellation.

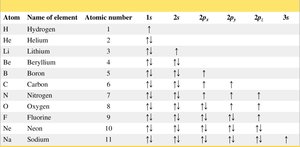

Summary Table: Electronic Configurations of the First 11 Elements

Learning Objectives

• Write ground-state electronic configurations for elements H through Ca.

• Describe bond polarity and determine dipole directions.

• Represent organic compounds using Lewis, Kekulé, condensed, and skeletal structures.

• Assign lone pairs and calculate formal charges.

• Determine hybridization of C, N, or O from molecular formula.

• Describe how hybridization determines molecular geometry.

• Explain how hybridization affects sigma bond strength and length.

• Describe how bond order affects bond length and strength.
