Q1. Provide IUPAC names for the following compounds:

• a) (CH3)2CHCH2CH2C(CH3)2CH2CH3

• b) [Cyclohexane ring structure]

• c) [Chlorinated bicyclic structure]

• d) [Branched alkane structure]

Background

Topic: IUPAC Nomenclature

This question tests your ability to systematically name organic compounds using the International Union of Pure and Applied Chemistry (IUPAC) rules. You must identify the parent chain, number the carbons, and name substituents correctly.

Key Terms and Concepts:

• Parent chain: The longest continuous carbon chain.

• Substituents: Groups attached to the parent chain.

• Numbering: Assign numbers to the chain to give substituents the lowest possible numbers.

• Prefixes: Indicate the number and type of substituents (e.g., methyl, ethyl).

Step-by-Step Guidance

1. For each compound, identify the longest carbon chain (parent chain).

2. Number the chain so that substituents get the lowest possible numbers.

3. Identify and name each substituent attached to the parent chain.

4. Combine the substituent names and numbers with the parent chain name, using proper IUPAC conventions.

5. For cyclic and bicyclic compounds, use the appropriate nomenclature rules for rings and bridges.

Try solving on your own before revealing the answer!

Q2. Provide structures for the following common names:

• a) cyclopropyl iodide

• b) sec-butyl bromide

• c) chloroform

• d) isobutyl fluoride

Background

Topic: Common Names and Structure Drawing

This question tests your ability to translate common (trivial) names of organic compounds into their structural formulas.

Key Terms:

• Cyclopropyl: Three-membered ring.

• Sec-butyl: Four-carbon group with the functional group on the second carbon.

• Chloroform: Trivial name for trichloromethane.

• Isobutyl: Four-carbon group with branching at the second carbon.

Step-by-Step Guidance

1. For each name, identify the root structure (e.g., cyclopropyl, butyl, isobutyl).

2. Determine the position and type of halogen or functional group (e.g., iodide, bromide, fluoride).

3. Draw the carbon skeleton and attach the halogen or functional group at the correct position.

4. Check for correct valency and ensure all atoms have appropriate bonds.

Try solving on your own before revealing the answer!

Q3. Draw proper Lewis structures for the molecular formula given such that all second row atoms have octets:

• a) C2H5N

• b) [CH5O]+

Background

Topic: Lewis Structures and Octet Rule

This question tests your ability to draw Lewis structures, ensuring that all second-row elements (C, N, O) have complete octets.

Key Terms and Concepts:

• Lewis structure: Shows all valence electrons and bonds.

• Octet rule: Second-row elements should have eight electrons in their valence shell.

• Formal charge: Calculate to ensure stability.

Step-by-Step Guidance

1. Count the total number of valence electrons for each formula.

2. Arrange the atoms to maximize bonding and minimize formal charge.

3. Draw bonds and lone pairs to satisfy the octet rule for C, N, and O.

4. Check for correct formal charges, especially for ions.

Try solving on your own before revealing the answer!

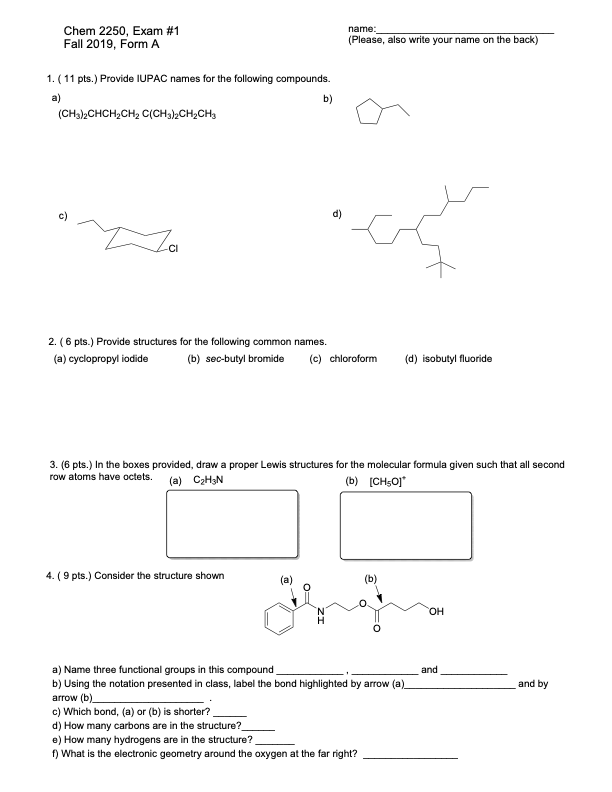

Q4. Consider the structure shown:

Background

Topic: Functional Groups, Bond Types, and Molecular Geometry

This question tests your ability to identify functional groups, label bonds, compare bond lengths, and determine molecular geometry.

Key Terms and Concepts:

• Functional group: Specific group of atoms responsible for characteristic reactions.

• Bond notation: Use class notation to label bonds.

• Bond length: Compare single, double, and triple bonds.

• Electronic geometry: Shape determined by electron pairs around an atom.

Step-by-Step Guidance

1. Identify three distinct functional groups in the molecule (e.g., amide, ester, alcohol).

2. Use class notation to label the bonds indicated by arrows (a) and (b).

3. Recall that bond length decreases with increasing bond order (single > double > triple).

4. Count the number of carbon atoms in the structure.

5. Count the number of hydrogen atoms in the structure.

6. Determine the electronic geometry around the oxygen atom at the far right (consider lone pairs and bonding pairs).

Try solving on your own before revealing the answer!
