Motion in One Dimension

Introduction to Linear Motion

Understanding motion in one dimension is fundamental to physics. This topic covers how objects move along a straight line, introducing key concepts such as position, velocity, acceleration, and the mathematical relationships that describe their motion.

Describing Motion

Position and Coordinate Systems

Position describes the location of an object relative to a chosen origin. In one-dimensional motion, we use an x-axis for horizontal motion and a y-axis for vertical motion. The sign of the position indicates direction relative to the origin.

• Position (x or y): The location of an object along a straight line.

• Origin: The reference point (x = 0 or y = 0).

• Positive/Negative Values: Indicate direction from the origin.

Motion Diagrams

Motion diagrams represent an object's position at successive times, helping visualize how it moves. Each dot marks the object's position at a specific time interval.

Position vs. Time Graphs

Graphs of position versus time provide a visual representation of motion. The slope of the graph at any point gives the object's velocity.

• Slope: Indicates velocity (steeper slope = higher speed).

• Straight Line: Constant velocity (uniform motion).

• Curved Line: Changing velocity (acceleration).

Velocity

Velocity is the rate of change of position with respect to time. It is a vector quantity, meaning it has both magnitude and direction.

• Average Velocity:

• Instantaneous Velocity: The velocity at a specific instant, given by the slope of the tangent to the position-time graph at that point.

Velocity vs. Time Graphs

Velocity-time graphs show how velocity changes over time. The area under the curve represents displacement.

• Horizontal Line: Constant velocity.

• Sloped Line: Constant acceleration.

Uniform Motion

Definition and Representation

Uniform motion occurs when an object moves in a straight line with constant velocity. The position-time graph is a straight line, and the velocity-time graph is a horizontal line.

• Equation:

• Displacement:

Proportional Relationships

In uniform motion, displacement is proportional to time. If you double the time, the displacement doubles.

• General Form:

• Graph: Straight line through the origin.

Instantaneous Velocity

Definition and Calculation

Instantaneous velocity is the velocity of an object at a specific moment. It is found by calculating the slope of the tangent to the position-time curve at that point.

• Graphical Method: Draw a tangent line at the point of interest and calculate its slope.

Acceleration

Definition and Units

Acceleration is the rate of change of velocity with respect to time. It is a vector quantity and can be positive or negative depending on the direction of velocity change.

• Equation:

• Units: meters per second squared (m/s2)

Sign of Acceleration

The sign of acceleration depends on the direction of motion and whether the object is speeding up or slowing down.

• Speeding Up: Velocity and acceleration have the same sign.

• Slowing Down: Velocity and acceleration have opposite signs.

Motion with Constant Acceleration

Kinematic Equations

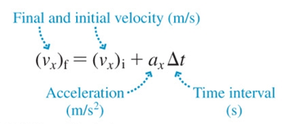

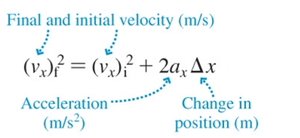

When acceleration is constant, the following equations describe the motion:

Quadratic Relationships

Position as a function of time under constant acceleration is a quadratic relationship, resulting in a parabolic position-time graph.

• General Form:

• Scaling: Doubling x increases y by a factor of 4.

Free Fall

Definition and Properties

Free fall describes the motion of objects under the influence of gravity alone. All objects in free fall near Earth's surface experience the same acceleration, regardless of mass.

• Acceleration due to Gravity: (downward)

• Equations: Use kinematic equations with for upward motion and for downward motion.

Problem-Solving Strategies

Four-Step Approach

Solving motion problems systematically improves accuracy and understanding. The recommended approach is:

1. Strategize: Identify the type of problem and relevant principles.

2. Prepare: Draw diagrams, define variables, and list knowns/unknowns.

3. Solve: Apply appropriate equations and perform calculations.

4. Assess: Check units, reasonableness, and completeness of the answer.

Pictorial and Graphical Representations

Drawing motion diagrams, pictorial representations, and graphs helps visualize and organize information for problem-solving.

Summary Table: Key Equations for One-Dimensional Motion

Applications and Examples

• Uniform Motion: A train moving at constant speed covers equal distances in equal time intervals.

• Constant Acceleration: A car braking to a stop or a rocket launch can be analyzed using kinematic equations.

• Free Fall: Objects dropped from rest accelerate downward at , regardless of mass (ignoring air resistance).

Visual Overview

Combining motion diagrams, pictorial representations, and graphs provides a comprehensive understanding of motion problems.
