Measures of Central Tendency

Definition and Overview

Measures of central tendency are statistical values that describe the center point or typical value of a dataset. The three primary measures are the mean, median, and mode. These measures help summarize a large set of data with a single representative value.

• Mean: The arithmetic average, calculated by summing all values and dividing by the number of observations.

• Median: The middle value when data are arranged in order. If the number of observations is even, the median is the average of the two middle values.

• Mode: The value that appears most frequently in the dataset. There can be more than one mode or no mode at all.

Calculating the Mean

• Sample Mean Formula:

• Population Mean Formula:

• Weighted Mean Formula:

Example: Calculating the sample mean for the data set: 87.2, 118.9, 76.2, 107.7, 61.5 (in thousands of dollars):

Calculating the Weighted Mean

The weighted mean is used when different values in a dataset contribute unequally to the average.

Example: Exam (94, 50%), Project (92, 35%), Homework (100, 15%)

Median and Mode

• Median: Arrange data in order and use the formula to find the position.

• Mode: The value(s) with the highest frequency in the dataset.

Example: For the dataset 70, 74, 81, 83, 86, 88, 91, 92, 95, the median is the fifth value (86).

Choosing the Appropriate Measure

• Mean: Best for symmetric distributions without outliers.

• Median: Preferred when data are skewed or contain outliers.

• Mode: Useful for categorical data or to identify the most frequent value.

Measures of Variation

Definition and Overview

Measures of variation describe the spread or dispersion of data values. Common measures include the range, variance, standard deviation, and coefficient of variation.

• Range: Difference between the highest and lowest values.

• Variance: Average of the squared differences from the mean.

• Standard Deviation: Square root of the variance; measures average distance from the mean.

• Coefficient of Variation (CV): Standard deviation expressed as a percentage of the mean, useful for comparing variability between datasets with different units or means.

Formulas

• Sample Variance:

• Population Variance:

• Sample Standard Deviation:

• Population Standard Deviation:

• Coefficient of Variation (Sample):

• Coefficient of Variation (Population):

Example: Calculating Variance and Standard Deviation

Given the data: 10, 10, 4, 8, 13, 6, 11

Sample variance:

Sample standard deviation:

Coefficient of Variation Example

Comparing Nike and Google stock prices:

Google's stock price is more consistent because its CV is lower, despite a higher standard deviation.

Using the Mean and Standard Deviation Together

z-Score

The z-score indicates how many standard deviations a value is from the mean. It is used to standardize values and identify outliers.

• Population z-score:

• Sample z-score:

Example: For a value of 60, mean 50, and standard deviation 20:

The Empirical Rule

For bell-shaped (normal) distributions:

• Approximately 68% of values fall within ±1 standard deviation from the mean.

• Approximately 95% within ±2 standard deviations.

• Approximately 99.7% within ±3 standard deviations.

Chebyshev’s Theorem

For any distribution (not necessarily normal), at least of values fall within z standard deviations from the mean, for .

• At least 75% within ±2 standard deviations

• At least 89% within ±3 standard deviations

• At least 94% within ±4 standard deviations

Measures of Relative Position

Percentiles and Quartiles

Measures of relative position compare the position of one value in relation to others in the dataset.

• Percentiles: Divide data into 100 equal parts. The pth percentile is the value below which p% of the data fall.

• Quartiles: Divide data into four equal parts: Q1 (25th percentile), Q2 (50th percentile/median), Q3 (75th percentile).

Percentile Index Formula:

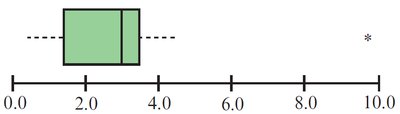

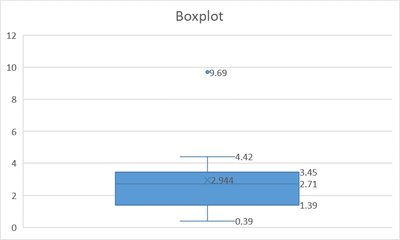

Box-and-Whisker Plot

A boxplot visually displays the five-number summary: minimum, Q1, median (Q2), Q3, and maximum. It also identifies outliers using the interquartile range (IQR).

• IQR:

• Upper Limit:

• Lower Limit:

Values outside these limits are considered outliers.

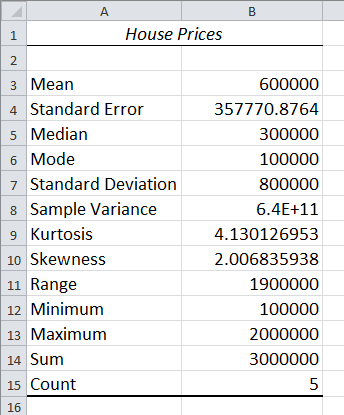

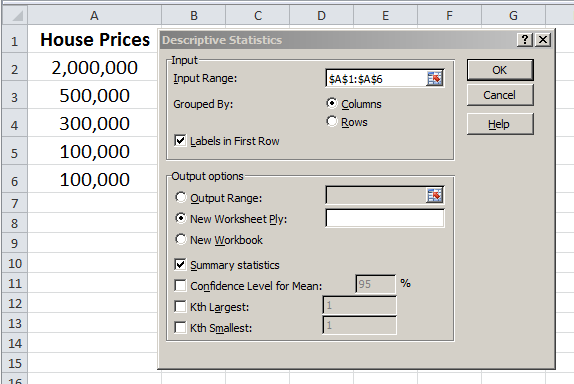

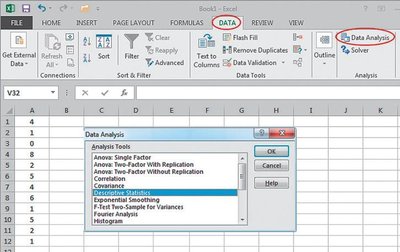

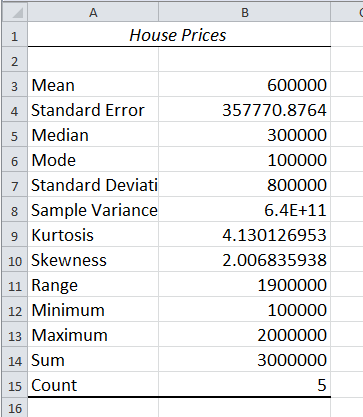

Descriptive Statistics in Excel

Using Excel for Descriptive Statistics

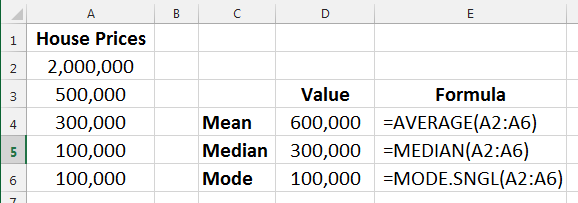

Excel provides built-in functions and tools for calculating descriptive statistics:

• Mean: =AVERAGE(data)

• Median: =MEDIAN(data)

• Mode: =MODE.SNGL(data) or =MODE.MULT(data)

• Sample Variance: =VAR.S(data)

• Population Variance: =VAR.P(data)

• Sample Standard Deviation: =STDEV.S(data)

• Population Standard Deviation: =STDEV.P(data)

• Coefficient of Variation: =STDEV.S(data)/AVERAGE(data)*100

• Percentiles: =PERCENTILE.EXC(array, k)

• Quartiles: =QUARTILE.EXC(array, quart)

Interpreting Histograms and Boxplots

Histogram Analysis

Histograms display the distribution of data, showing frequency of values in intervals (bins). They help identify the shape (symmetric, skewed), modality (unimodal, bimodal), and outliers.

Boxplot Analysis

Boxplots are preferred for detecting outliers and comparing groups. The position of the median and the length of the whiskers indicate skewness and spread.

Practice Problems and Applications

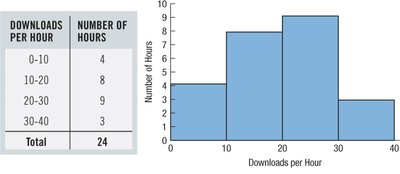

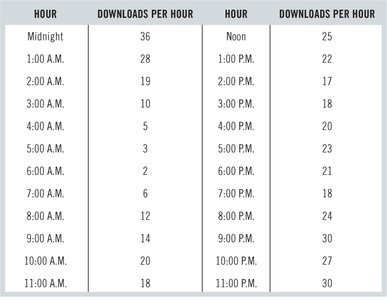

Example: Music Downloads

Given hourly download data, you can construct a histogram, calculate mean, median, range, IQR, and standard deviation, and summarize the distribution's shape and spread.

Example: Food Store Sales

For a right-skewed distribution, the median is a better measure of central tendency than the mean, and the IQR is preferred over the standard deviation for measuring spread.

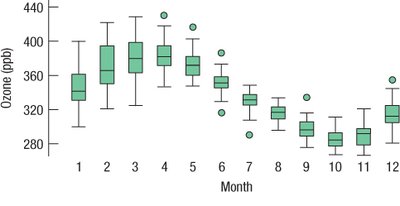

Example: Ozone Levels

Boxplots can be used to compare monthly ozone levels, identify months with the highest values, largest IQR, and smallest range, and observe annual patterns.
