Vectors and Motion in Two Dimensions

Introduction

This chapter explores the concept of vectors and their application to analyzing motion in two dimensions. Understanding vectors is essential for describing quantities that have both magnitude and direction, such as displacement, velocity, and acceleration.

Vectors: Definitions and Properties

What is a Vector?

• Vector: A quantity with both magnitude (size) and direction.

• Scalar: A quantity with only magnitude (e.g., speed, mass).

• Vectors are represented graphically by arrows; the length indicates magnitude, and the arrow points in the direction.

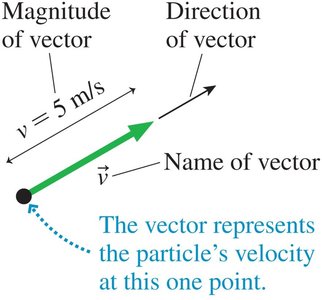

Magnitude and Direction

• The magnitude of a vector is always a non-negative number.

• The direction is specified relative to a coordinate system or reference direction.

• Example: A velocity vector of 5 m/s east has a magnitude of 5 m/s and points east.

Equality of Vectors

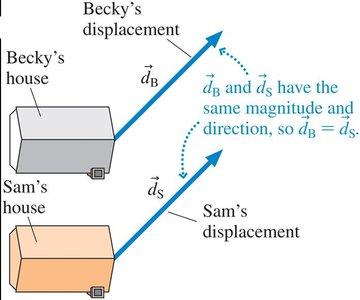

• Two vectors are equal if they have the same magnitude and direction, regardless of their initial points.

Vector Addition and Subtraction

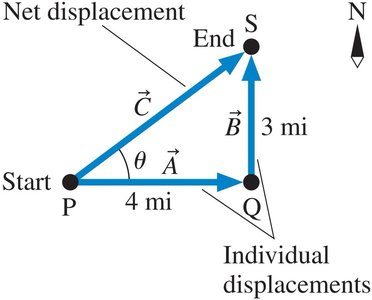

Adding Vectors

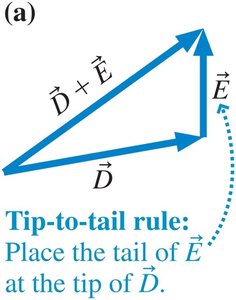

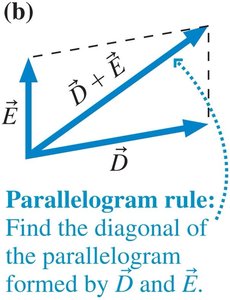

• Vectors are added using the tip-to-tail rule or the parallelogram rule.

• The sum of two vectors is called the resultant vector.

• Vector addition is commutative: \( \vec{A} + \vec{B} = \vec{B} + \vec{A} \).

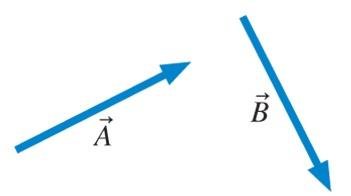

Subtracting Vectors

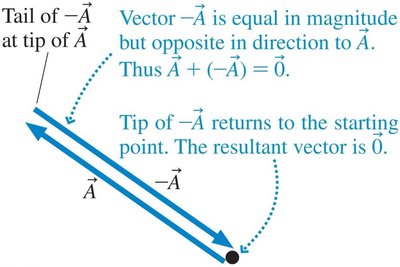

• To subtract \( \vec{B} \) from \( \vec{A} \), add \( -\vec{B} \) to \( \vec{A} \).

• \( -\vec{B} \) has the same magnitude as \( \vec{B} \) but points in the opposite direction.

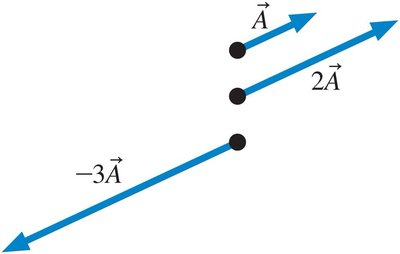

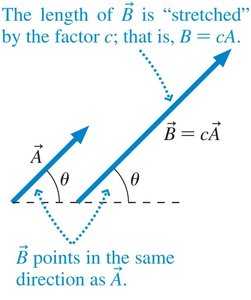

Multiplying Vectors by Scalars

• Multiplying a vector by a positive scalar changes its magnitude but not its direction.

• Multiplying by a negative scalar reverses the direction.

• Multiplying by zero gives the zero vector (no magnitude or direction).

Coordinate Systems and Vector Components

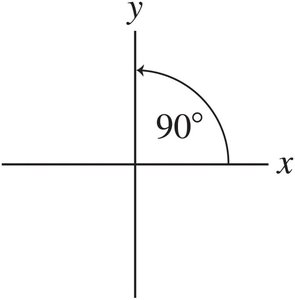

Coordinate Systems

• A coordinate system is a grid used to define positions and directions, typically using x- and y-axes (Cartesian coordinates).

• The origin is where the axes intersect (x = 0, y = 0).

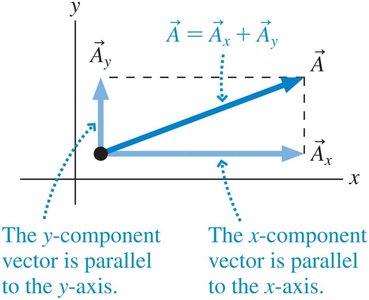

Vector Components

• Any vector \( \vec{A} \) can be decomposed into two perpendicular components: \( A_x \) (along x-axis) and \( A_y \) (along y-axis).

• \( \vec{A} = \vec{A}_x + \vec{A}_y \)

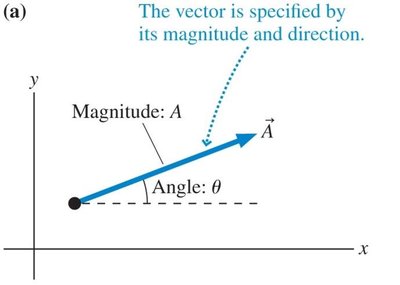

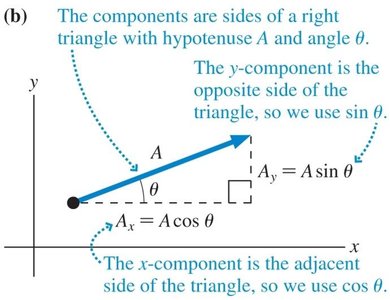

Finding Components Using Trigonometry

• Given a vector \( \vec{A} \) at an angle \( \theta \) from the x-axis:

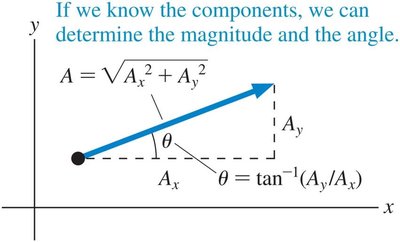

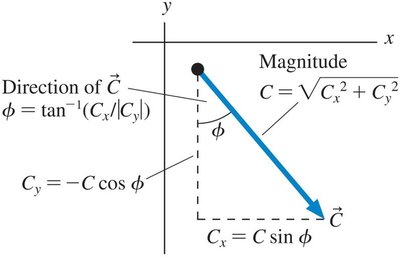

Magnitude and Direction from Components

• Given components \( A_x \) and \( A_y \):

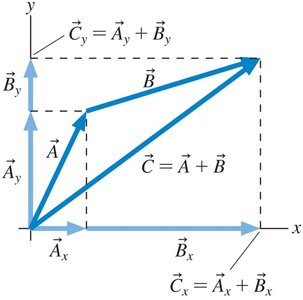

Working with Components

• Vectors can be added or subtracted by adding or subtracting their components:

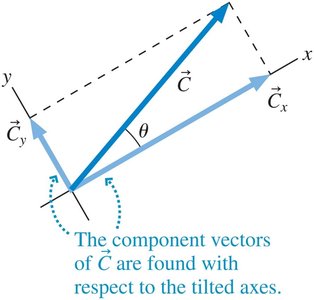

Tilted Axes

• For motion on a slope, it is often useful to align the x-axis with the slope.

• Components are found using the same trigonometric relationships, but with respect to the tilted axes.

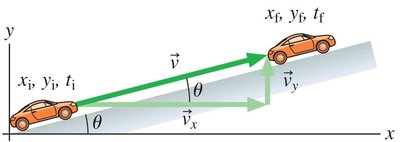

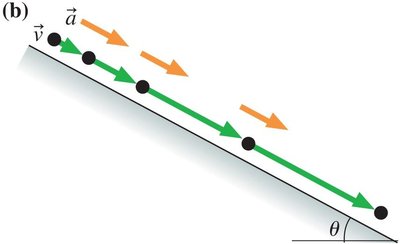

Motion on a Ramp

Constant-Velocity and Accelerated Motion

• When an object moves up or down a ramp, its motion can be analyzed using vector components parallel and perpendicular to the ramp.

• The acceleration parallel to the ramp is a component of gravity:

Motion in Two Dimensions

General Two-Dimensional Motion

• In two dimensions, displacement, velocity, and acceleration are all vectors that may change in both magnitude and direction.

• Motion diagrams help visualize these changes.

Projectile Motion

• A projectile is an object moving under the influence of gravity alone.

• Projectile motion consists of independent horizontal and vertical motions:

  • Horizontal: constant velocity (no acceleration)

  • Vertical: constant acceleration (gravity)

• Key equations for projectile motion:

• The time of flight is determined by the vertical motion.

• The range (horizontal distance) depends on the initial speed and launch angle.

Circular Motion

Uniform Circular Motion

• When an object moves in a circle at constant speed, its velocity changes direction continuously.

• The acceleration is called centripetal acceleration and always points toward the center of the circle.

Relative Motion

Relative Velocity

• The velocity of an object depends on the observer's frame of reference.

• Relative velocities are added as vectors:

• Example: The velocity of a runner relative to the ground is the sum of the runner's velocity relative to a conveyor belt and the belt's velocity relative to the ground.

Summary Table: Key Equations and Concepts

Conclusion

Understanding vectors and their operations is fundamental to analyzing motion in two dimensions. Mastery of vector addition, components, and the application to projectile and circular motion provides a strong foundation for further studies in physics.
