Vectors in Physics

Introduction to Vectors and Relative Motion

Vectors are quantities that have both magnitude and direction, and they are fundamental in describing motion in physics. Relative motion refers to the observation of an object's motion from different reference frames, which is crucial for understanding how velocities combine in various scenarios.

Relative Motion

Understanding Relative Velocity

Relative velocity describes how the velocity of one object appears from the reference frame of another object. The velocity of an object can differ depending on the observer's frame of reference.

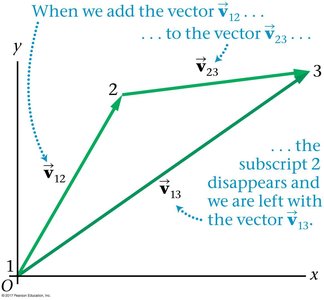

• Key Equation: The velocity of object 1 relative to object 3 is the sum of the velocity of object 1 relative to object 2 and the velocity of object 2 relative to object 3.

• Subscript Convention: The 'inside' subscripts must match for the addition to be valid.

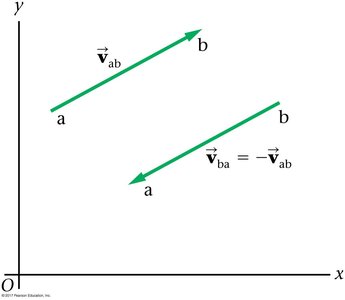

• Negative Relationship: The velocity of object b relative to object a is the negative of the velocity of object a relative to object b:

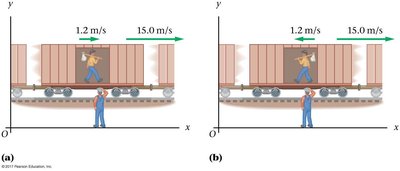

Example: Person Walking on a Moving Train

Consider a person walking inside a train. The observer on the ground sees the combined effect of the person's velocity relative to the train and the train's velocity relative to the ground.

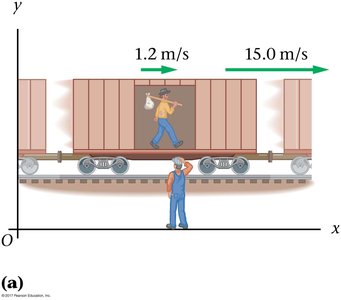

• Case 1: Person walks in the same direction as the train's motion.

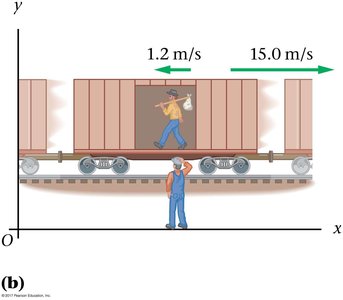

• Case 2: Person walks in the opposite direction to the train's motion.

Calculation:

• Let be the velocity of the person relative to the train, and the velocity of the train relative to the ground.

• The velocity of the person relative to the ground is:

• For the same direction:

• For the opposite direction:

Generalization of Relative Motion

The pattern of subscripts in relative velocity equations is consistent for any set of objects. This allows for systematic analysis of motion in different frames.

• General Equation:

• Negative Relationship:

Solving Relative Motion Problems

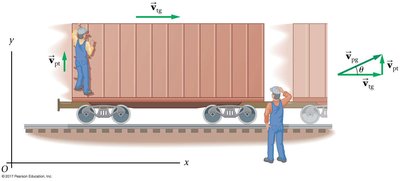

Example: Person Climbing a Ladder on a Moving Train

Suppose a person climbs a vertical ladder at on a train moving at horizontally. To find the person's velocity relative to the ground, use vector addition in unit vector notation:

Magnitude:

Direction:

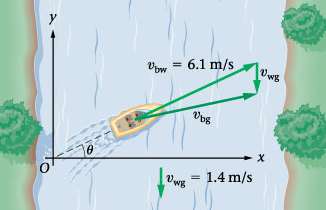

Example: Boat Crossing a River

A boat moves with a speed of relative to the water, pointing upstream, while the river flows at . To find the boat's velocity relative to the ground:

Finding the Required Angle for Perpendicular Crossing

To move straight across the river (perpendicular to the shore), the boat must compensate for the river's current. The required angle is found by:

Reverse Problem: Required Boat Speed and Direction

If the boat must move directly across the river at , the required velocity relative to the water is:

Magnitude:

Direction:

Summary Table: Relative Velocity Equations

Additional info: These examples and equations are foundational for understanding more advanced topics in kinematics and dynamics, especially when analyzing motion in multiple reference frames.
