Chemical Bonding

The Nature of Chemical Bonds

Chemical bonds are the forces that hold atoms together in compounds. The three most common types of bonds are ionic, covalent, and metallic bonds. Each type of bond involves different mechanisms of electron interaction between atoms.

• Covalent bonds: Electrons are shared between atoms.

• Ionic bonds: Electrons are transferred from one atom to another, resulting in the formation of cations and anions.

• Metallic bonds: Involve the sharing of electrons among a lattice of metal atoms.

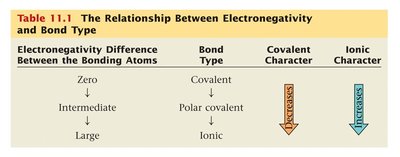

Bond Types and Electronegativity

The type of bond formed between two atoms depends on the difference in their electronegativities. Electronegativity is a measure of an atom's ability to attract electrons in a chemical bond.

• Nonpolar covalent bond: Electrons are shared equally (electronegativity difference, DEN = 0 to 0.49).

• Polar covalent bond: Electrons are shared unequally (DEN = 0.5 to 1.7).

• Ionic bond: Electrons are transferred (DEN > 2.0).

• If DEN is between 1.7 and 2.0, the bond type depends on whether a metal is present.

Example: The bond between sodium (Na) and chlorine (Cl) is ionic, while the bond between carbon (C) and hydrogen (H) is nonpolar covalent.

The Nature of Covalent Bonding

Polar and Nonpolar Covalent Bonds

Covalent bonds can be classified as polar or nonpolar based on the distribution of electron density.

• Polar covalent bond: Electrons are not shared equally; the more electronegative atom attracts the shared electrons more strongly, resulting in partial charges.

• Nonpolar covalent bond: Electrons are shared equally between atoms of similar electronegativity.

Bond Polarity and Dipole Moments

Bond polarity arises from unequal sharing of electrons, leading to partial positive and negative charges. A molecule with a center of positive charge and a center of negative charge has a dipole moment.

• Dipole moments affect the physical properties and intermolecular forces of substances.

• Multiple polar bonds in a molecule can add or cancel out dipole moments.

Dipole Moment in Water

Water is a classic example of a molecule with a strong dipole moment due to its polar covalent bonds.

• The oxygen atom is more electronegative, attracting shared electrons and creating partial charges.

• The molecule behaves as if it has a positive end and a negative end.

Electron Configuration in Ionic Bonding

Formation of Ions

Metals tend to lose valence electrons to achieve a stable octet, forming cations. Nonmetals tend to gain electrons to complete their octet, forming anions.

• Sodium:

• Calcium:

• Oxygen:

Properties of Ionic Compounds

Ionic compounds are formed by electrostatic attraction between cations and anions. They are typically crystalline solids with high melting points due to strong ionic forces.

Valence Electrons and Lewis Structures

Valence Electrons

Valence electrons are the electrons in the outermost shell of an atom and are involved in bonding. The number of valence electrons is determined by the group number in the periodic table.

• Group 1: 1 valence electron

• Group 2: 2 valence electrons

• Group 13: 3 valence electrons

• Group 14: 4 valence electrons

• Group 15: 5 valence electrons

• Group 16: 6 valence electrons

• Group 17: 7 valence electrons

• Group 18: 8 valence electrons

Lewis Symbols and Structures

Lewis symbols (electron dot symbols) represent valence electrons as dots around the element symbol. Lewis structures show the arrangement of atoms and electrons in molecules.

• Bonding pairs: Shared between two atoms

• Lone pairs: Not shared, belong to one atom

Steps for Drawing Lewis Structures

1. Determine the number of valence electrons.

2. Choose the central atom (usually the least electronegative).

3. Use pairs of electrons to bond terminal atoms to the central atom.

4. Make terminal atoms stable (octet rule).

5. Place remaining electrons as lone pairs on the central atom.

6. Determine formal charges if necessary.

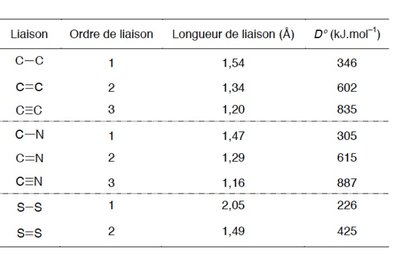

Bond Order, Length, and Strength

Single, Double, and Triple Bonds

Bonds can be classified by the number of shared electron pairs:

• Single bond: One pair of electrons shared

• Double bond: Two pairs of electrons shared

• Triple bond: Three pairs of electrons shared

Bond order affects bond length and strength. Higher bond order means shorter and stronger bonds.

Resonance Structures

Resonance

Some molecules or ions can be represented by two or more valid Lewis structures, called resonance structures. Resonance occurs when there is a double bond that can be placed in different positions.

• Resonance structures are hybrids; the actual structure is a blend of all possible forms.

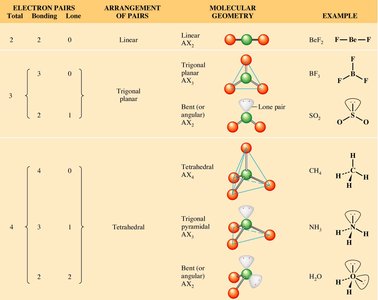

Molecular Geometry and VSEPR Theory

Valence-Shell Electron Pair Repulsion (VSEPR) Model

The VSEPR model predicts the shapes of molecules by assuming that electron pairs around a central atom arrange themselves as far apart as possible.

1. Draw the Lewis structure.

2. Count bonding pairs and lone pairs around the central atom.

3. Determine the arrangement and geometry.

Polarity of Molecules

Polar and Nonpolar Molecules

The polarity of a molecule depends on the distribution of charge and the arrangement of atoms.

• If centers of partial positive and negative charge coincide, the molecule is nonpolar.

• If they are separated, the molecule is polar.

• Lone pairs on the central atom usually make the molecule polar.

• If all atoms around the central atom are identical and there are no lone pairs, the molecule is nonpolar.

Intermolecular Forces

Types of Intermolecular Forces

Intermolecular forces are attractions between molecules, weaker than ionic or covalent bonds. They determine the physical state (solid, liquid, gas) of molecular compounds.

• Dispersion forces: Weakest, caused by electron motion; increase with molar mass and number of electrons.

• Dipole interactions: Occur between polar molecules; partial positive and negative charges attract.

• Hydrogen bonds: Strongest intermolecular force; occur when H is bonded to F, O, or N and interacts with lone pairs on nearby molecules.

Example: Hydrogen bonding in water leads to high boiling points and strong attraction between molecules.

Additional info: The notes above include expanded explanations, definitions, and examples to ensure completeness and academic quality for exam preparation.
