Cardiovascular System: The Heart, Blood Vessels, and Regulation

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

The Heart: Structure and Function

Anatomy of the Heart

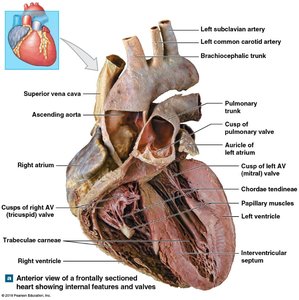

The heart is a muscular organ responsible for pumping blood throughout the body via the circulatory system. It consists of four chambers: two atria and two ventricles, separated by valves that ensure unidirectional blood flow. - Right Atrium: Receives deoxygenated blood from the body via the superior and inferior vena cava. - Right Ventricle: Pumps blood to the lungs through the pulmonary trunk for oxygenation. - Left Atrium: Receives oxygenated blood from the lungs via pulmonary veins. - Left Ventricle: Pumps oxygenated blood to the body through the aorta. - Valves: Tricuspid (right AV), bicuspid/mitral (left AV), pulmonary semilunar, and aortic semilunar valves prevent backflow. Anterior view of a frontally sectioned heart showing internal features and valves

Heart Valves and Blood Flow

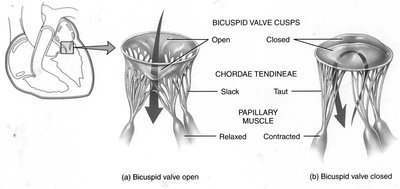

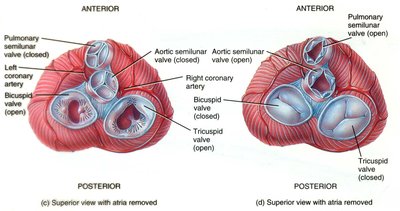

Heart valves are critical for maintaining proper blood flow direction. The AV valves (tricuspid and bicuspid) separate atria from ventricles, while semilunar valves (pulmonary and aortic) separate ventricles from major arteries. - Valve Function: Open to allow blood flow; close to prevent backflow. - Chordae Tendineae and Papillary Muscles: Anchor AV valves, preventing prolapse during ventricular contraction. Bicuspid valve open and closed, showing chordae tendineae and papillary muscle function Superior view of heart valves with atria removed

Blood Flow Through the Heart

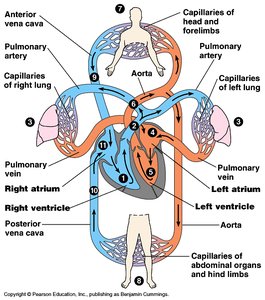

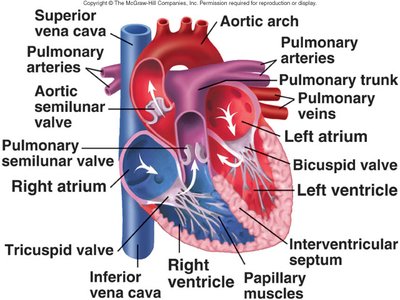

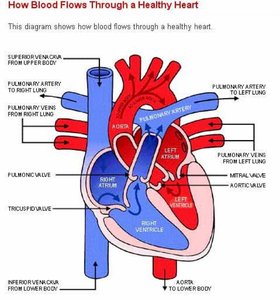

Blood flows through the heart in a specific sequence, ensuring oxygenation and distribution. - Pulmonary Circulation: Right ventricle → pulmonary arteries → lungs → pulmonary veins → left atrium. - Systemic Circulation: Left ventricle → aorta → body → vena cavae → right atrium. Diagram of blood flow through a healthy heart Overview of blood flow through the heart and body Heart anatomy with labeled chambers and valves

Cardiac Cycle and Electrical Activity

Phases of the Cardiac Cycle

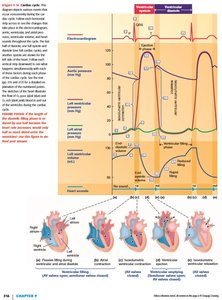

The cardiac cycle consists of alternating periods of contraction (systole) and relaxation (diastole) in the heart chambers. - Ventricular Filling: Blood flows passively into ventricles during diastole. - Isovolumetric Contraction: Ventricles contract with all valves closed, building pressure. - Ventricular Ejection: Semilunar valves open, blood is ejected into arteries. - Isovolumetric Relaxation: Ventricles relax, all valves closed, pressure drops. Cardiac cycle graph showing electrical, pressure, and volume changes

Electrical Activity and ECG/EKG

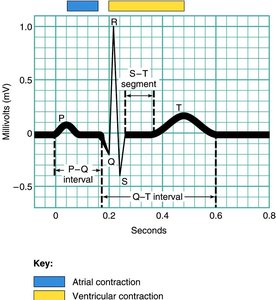

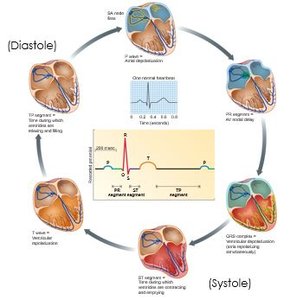

The heart's electrical activity is recorded as an electrocardiogram (ECG/EKG), which reflects depolarization and repolarization events. - P wave: Atrial depolarization. - QRS complex: Ventricular depolarization. - T wave: Ventricular repolarization. - Conduction Pathway: SA node → AV node → bundle of His → Purkinje fibers. ECG tracing with labeled waves and intervals Cardiac cycle with ECG and chamber activity

Cardiac Muscle Physiology

Action Potentials in Cardiac Muscle

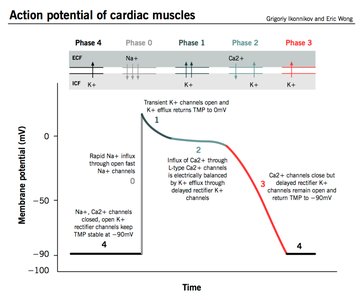

Cardiac muscle cells exhibit unique action potentials characterized by a plateau phase, which prevents tetanus and ensures proper contraction. - Depolarization: Rapid influx of Na+ through voltage-gated channels. - Plateau Phase: Slow influx of Ca2+ maintains depolarization. - Repolarization: Efflux of K+ restores resting potential. Action potential and membrane permeability changes in cardiac muscle Action potential of cardiac muscles

Excitation-Contraction Coupling

The process by which electrical signals trigger muscle contraction involves Ca2+ influx and release from the sarcoplasmic reticulum, leading to cross-bridge cycling. Excitation-contraction coupling in cardiac contractile cells

Autorhythmic Cells and Pacemaker Potentials

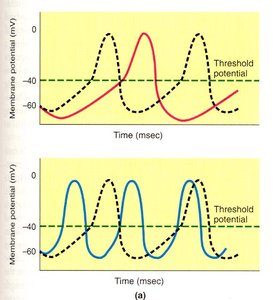

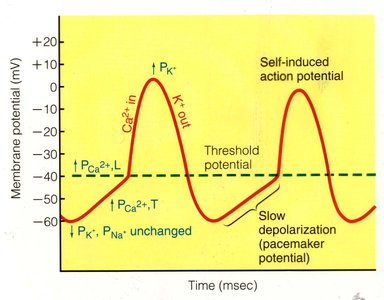

Autorhythmic cells (e.g., SA node) generate spontaneous action potentials due to unstable resting membrane potentials, leading to rhythmic heartbeats. Pacemaker potential and self-induced action potential Comparison of pacemaker potentials

Cardiac Output and Regulation

Cardiac Output

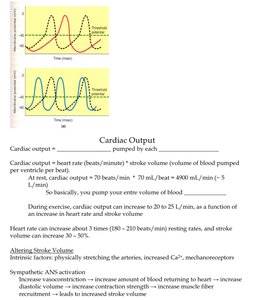

Cardiac output (CO) is the volume of blood pumped by each ventricle per minute. It is determined by heart rate (HR) and stroke volume (SV): - Normal Values: At rest, CO ≈ 5 L/min; during exercise, CO can increase to 20–25 L/min. - Factors Affecting SV: Preload, contractility, afterload, and autonomic nervous system activity. Cardiac output and factors affecting stroke volume

Blood Pressure and Vascular Tone

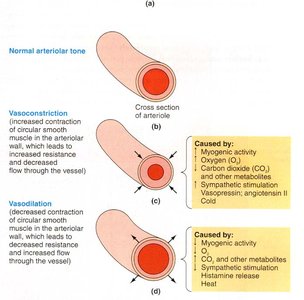

Blood pressure is regulated by vessel diameter, blood volume, and cardiac output. Arteriolar tone is maintained by myogenic activity and sympathetic stimulation. - Vasoconstriction: Increases resistance, decreases flow. - Vasodilation: Decreases resistance, increases flow. Normal arteriolar tone, vasoconstriction, and vasodilation

Local and Extrinsic Control of Blood Flow

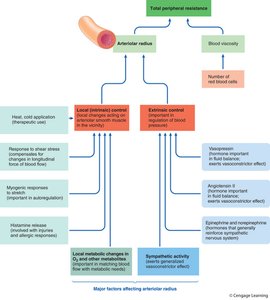

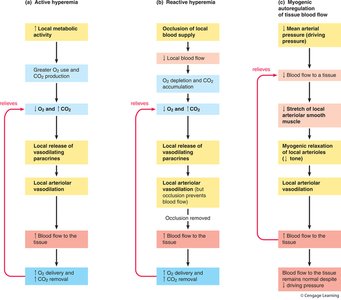

Blood flow is matched to tissue needs by local metabolic factors (active hyperemia) and extrinsic factors (ANS, hormones). Active and reactive hyperemia, and flow autoregulation Major factors affecting arteriolar radius and total peripheral resistance

Baroreceptor Reflex and Blood Pressure Regulation

Baroreceptor Reflex

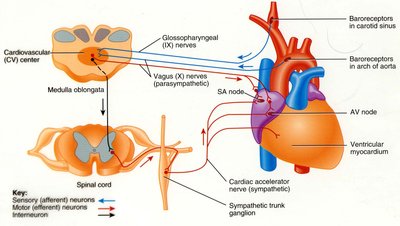

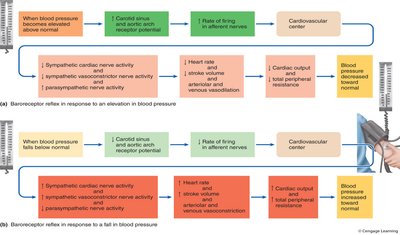

The baroreceptor reflex maintains blood pressure homeostasis by adjusting heart rate, stroke volume, and vessel tone in response to changes in arterial pressure. - Baroreceptors: Located in carotid sinus and aortic arch; detect stretch and pressure. - Neural Pathways: Signals sent to cardiovascular center in medulla oblongata; efferent signals via sympathetic and parasympathetic nerves. Baroreceptor reflex neural pathways Baroreceptor reflex responses to blood pressure changes

Autonomic Nervous System Effects

The ANS regulates heart activity and blood pressure via parasympathetic (vagus nerve, ACh) and sympathetic (norepinephrine, epinephrine) stimulation.

Area Affected

Parasympathetic Stimulation

Sympathetic Stimulation

SA node

Decreases depolarization rate, decreases HR

Increases depolarization rate, increases HR

AV node

Increases nodal delay

Decreases nodal delay

Ventricular conduction pathway

No effect

Increases conduction

Atrial muscle

Weakens contraction

Increases contraction

Ventricular muscle

No effect

Increases contraction

Adrenal medulla

No effect

Promotes secretion of epinephrine

Veins

No effect

Increases venous return

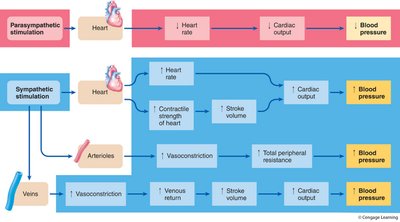

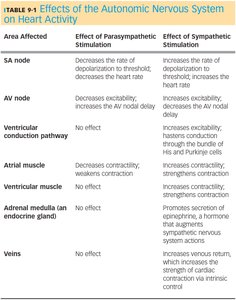

Effects of the autonomic nervous system on heart activity ANS effects on heart activity and blood pressure

Summary Table: Circulatory Pathways

Pathway

Chamber

Valve

Destination

Pulmonary

Right ventricle

Pulmonary semilunar

Lungs

Systemic

Left ventricle

Aortic semilunar

Body

Coronary

Left ventricle

Aortic semilunar

Heart tissue

Additional info: Academic context was added to clarify the physiological mechanisms, regulatory pathways, and the significance of each structure and process. The notes are structured to provide a comprehensive overview suitable for exam preparation in an anatomy and physiology college course.
