Neurons, Synapses, and Signaling

Overview: Lines of Communication

Neurons are specialized cells responsible for transmitting information throughout the body. They utilize both electrical signals (for long-distance communication) and chemical signals (for short-distance communication) to coordinate complex physiological processes. The nervous system interprets these signals through intricate networks, with information processing occurring in clusters of neurons called ganglia or in more complex structures such as the brain.

Diagram of neurons showing axons, dendrites, and a synapse with neurotransmitter vesicles and receptors Diversity of nervous system organization in different animal phyla

Neuron Structure and Function

Basic Structure of a Neuron

Neurons exhibit a structure that reflects their function in information transfer. Most organelles are located in the cell body. Dendrites are highly branched extensions that receive incoming signals, while a single long axon transmits signals to other cells. The axon hillock, a cone-shaped region at the base of the axon, is where action potentials are typically initiated.

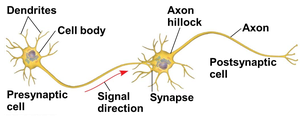

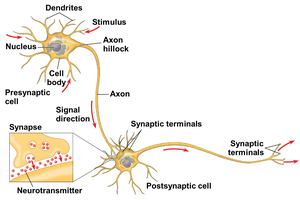

Diagram of a neuron showing dendrites, cell body, axon hillock, axon, synapse, and postsynaptic cell Detailed neuron structure with synaptic terminals and neurotransmitter release

Synapse: The junction where the axon terminal of one neuron communicates with another cell. Chemical messengers called neurotransmitters are released here to transmit signals.
Glial Cells: Supporting cells that outnumber neurons in the mammalian brain by 10- to 50-fold. They provide structural support, insulation, and nutrients to neurons.

Microscopic image showing glia and neuron cell bodies Histological image of glial cells among neurons

Introduction to Information Processing

Stages of Nervous System Processing

The nervous system processes information in three main stages:

Sensory Input: Sensory neurons detect external or internal stimuli and transmit information to processing centers.
Integration: Interneurons analyze and interpret sensory input, often within the brain or ganglia.
Motor Output: Motor neurons send signals to effector cells (muscles or glands) to elicit a response.

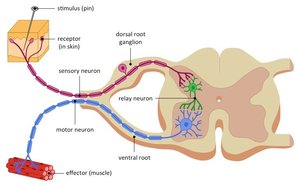

Diagram showing sensory input, integration, and motor output in a simple reflex arc Neural circuit showing sensory neuron, interneuron, and motor neuron Diagram of sensory, interneuron, and motor neuron structures

Central and Peripheral Nervous Systems

The nervous system is divided into:

Central Nervous System (CNS): Composed of the brain and spinal cord; responsible for integration and processing.
Peripheral Nervous System (PNS): Composed of nerves outside the CNS; transmits sensory and motor signals between the CNS and the rest of the body.

Diagram comparing central and peripheral nervous systems

Ion Pumps, Ion Channels, and the Resting Potential

Membrane Potential and Resting Potential

The membrane potential is the voltage difference across a cell's plasma membrane, with the inside typically negative relative to the outside. The resting potential is the membrane potential of a neuron not actively sending signals, usually between –60 and –80 mV. This potential is a source of potential energy for signal transmission.

Formation of the Resting Potential

Key Ions: Potassium (K+) is more concentrated inside the cell, while sodium (Na+) is more concentrated outside.
Sodium-Potassium Pump: Uses ATP to maintain these gradients by pumping 3 Na+ out and 2 K+ in per cycle.

Diagram showing separation of charge across a membrane and measurement of membrane potential Sodium-potassium pump maintaining ion gradients across the membrane

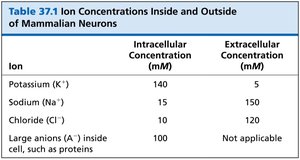

Ion	Intracellular Concentration (mM)	Extracellular Concentration (mM)
Potassium (K+)	140	5
Sodium (Na+)	15	150
Chloride (Cl–)	10	120
Large anions (A–)	100	Not applicable

Table of ion concentrations inside and outside mammalian neurons

Ion Channels: Selectively permeable channels allow specific ions to move across the membrane, converting chemical gradients into electrical potential energy.
Resting Neuron: Has many open potassium channels, allowing K+ to flow out, contributing to the negative resting potential.

Diagram showing sodium-potassium pump, potassium channel, and sodium channel in a neuron membrane

Modeling the Resting Potential

The resting potential can be modeled using an artificial membrane separating two chambers with different KCl concentrations. K+ diffuses down its gradient, and a negative charge builds up inside. At equilibrium, the electrical and chemical gradients are balanced.

The equilibrium potential for an ion (Eion) can be calculated using the Nernst equation:

For K+, EK ≈ –90 mV; the actual resting potential is slightly less negative due to some Na+ influx.

Summary

Neurons are specialized for rapid communication via electrical and chemical signals.
Information processing involves sensory input, integration, and motor output.
Resting potential is established by ion gradients and selective permeability of the membrane, maintained by the sodium-potassium pump and ion channels.
