Circulation and Gas Exchange: Structure and Function of Animal Circulatory Systems

Circulatory Systems in Animals

Gastrovascular Cavities

Simple animals, such as cnidarians and flatworms, rely on gastrovascular cavities for both digestion and distribution of substances throughout the body. Their body walls are only two cells thick, which allows for efficient exchange of materials.

• Gastrovascular cavity: A central cavity that serves both digestive and circulatory functions.

• Surface area to volume ratio: Flatworms maximize exchange by having a large surface area relative to their volume.

• Example: Aurelia (moon jelly, a cnidarian) and Dugesia (planarian, a flatworm) illustrate these systems.

Open and Closed Circulatory Systems

More complex animals possess either open or closed circulatory systems, each with three basic components: circulatory fluid, vessels, and a muscular pump (heart).

• Open circulatory system: Hemolymph bathes organs directly; no distinction between blood and interstitial fluid. Found in insects, other arthropods, and most molluscs.

• Closed circulatory system: Blood is confined to vessels and is distinct from interstitial fluid. Found in vertebrates and some invertebrates (e.g., earthworms).

• Efficiency: Closed systems are more efficient at transporting fluids to tissues and cells.

Organization of Vertebrate Circulatory Systems

Capillary Beds and Blood Flow Regulation

Capillary beds are networks of capillaries where exchange between blood and interstitial fluid occurs. Blood flow through capillary beds is regulated by arterioles and precapillary sphincters.

• Arteriole: Small vessel leading into capillary bed.

• Precapillary sphincter: Muscle ring that controls blood flow into capillaries.

• Venule: Small vessel collecting blood from capillary bed.

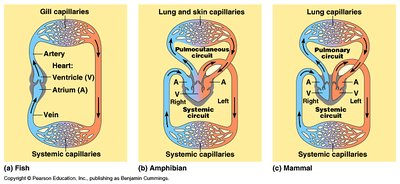

Single vs. Double Circulation

Vertebrates exhibit either single or double circulation, depending on their evolutionary lineage.

• Single circulation: Blood passes through the heart once per cycle (e.g., fish).

• Double circulation: Blood passes through the heart twice per cycle, separating pulmonary and systemic circuits (e.g., amphibians, reptiles, mammals, birds).

• Pulmonary circuit: Carries blood to lungs (or lungs and skin in amphibians) for gas exchange.

• Systemic circuit: Delivers oxygen-rich blood to body tissues.

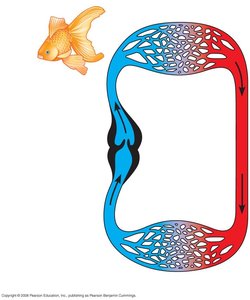

Fish Circulatory System

Fish have a single circulatory system, where blood flows from the heart to the gills for oxygenation and then to the rest of the body.

• Heart chambers: One atrium and one ventricle.

• Gill capillaries: Site of gas exchange.

• Systemic capillaries: Site of nutrient and waste exchange with tissues.

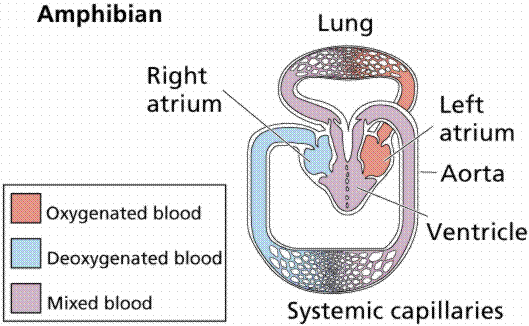

Amphibian Circulatory System

Amphibians possess a three-chambered heart (two atria, one ventricle) and double circulation. Blood is split between the pulmocutaneous circuit (lungs and skin) and the systemic circuit.

• Mixed blood: Some mixing of oxygenated and deoxygenated blood occurs in the ventricle.

• Adaptation: Underwater, blood flow to lungs is reduced.

Reptile Circulatory System (Except Birds)

Reptiles (except birds) have a three-chambered heart, with partial separation of oxygenated and deoxygenated blood. Some reptiles (e.g., crocodilians) have a four-chambered heart.

• Double circulation: Pulmonary circuit (lungs) and systemic circuit.

• Partial septum: Reduces mixing of blood.

Mammal and Bird Circulatory System

Mammals and birds have a four-chambered heart, completely separating oxygen-rich and oxygen-poor blood. This allows for efficient delivery of oxygen to tissues, supporting high metabolic rates.

• Heart chambers: Two atria and two ventricles.

• Endothermy: High oxygen demand due to warm-blooded metabolism.

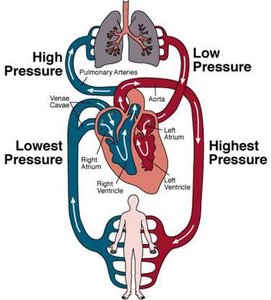

Human Circulatory System: Pressure and Flow

In humans, the circulatory system maintains different pressures in the pulmonary and systemic circuits, ensuring efficient gas exchange and nutrient delivery.

• High pressure: Systemic circuit (left ventricle to body).

• Low pressure: Pulmonary circuit (right ventricle to lungs).

• Lowest pressure: Venous return to the heart.

Summary Table: Circulatory System Types

Animal Group	Heart Chambers	Circulation Type	Blood Mixing
Fish	2 (1 atrium, 1 ventricle)	Single	No
Amphibians	3 (2 atria, 1 ventricle)	Double	Yes (partial)
Reptiles (except birds)	3 or 4	Double	Reduced
Mammals/Birds	4 (2 atria, 2 ventricles)	Double	No

Key Concepts and Applications

• Open vs. Closed Circulatory Systems: Open systems are less efficient but suitable for smaller or less active animals; closed systems allow for higher metabolic rates and larger body sizes.

• Single vs. Double Circulation: Double circulation maintains higher blood pressure in organs, supporting more active lifestyles.

• Capillary Function: Exchange of gases, nutrients, and wastes occurs in capillary beds, regulated by sphincters and arterioles.

• Heart Structure: The number and arrangement of heart chambers reflect evolutionary adaptations to oxygen demand and metabolic rate.

Example: Path of a Red Blood Cell in Human Circulation

1. Enters right atrium from vena cava (oxygen-poor).

2. Moves to right ventricle, then pumped to lungs via pulmonary artery.

3. In lungs, picks up oxygen and releases carbon dioxide.

4. Returns to left atrium via pulmonary vein (oxygen-rich).

5. Moves to left ventricle, then pumped to body via aorta.

6. Delivers oxygen to tissues, returns to right atrium via veins.

Additional info:

• Capillary beds are essential for material exchange; their structure and regulation are critical for homeostasis.

• Evolution of circulatory systems reflects increasing complexity and metabolic demands in animal lineages.
