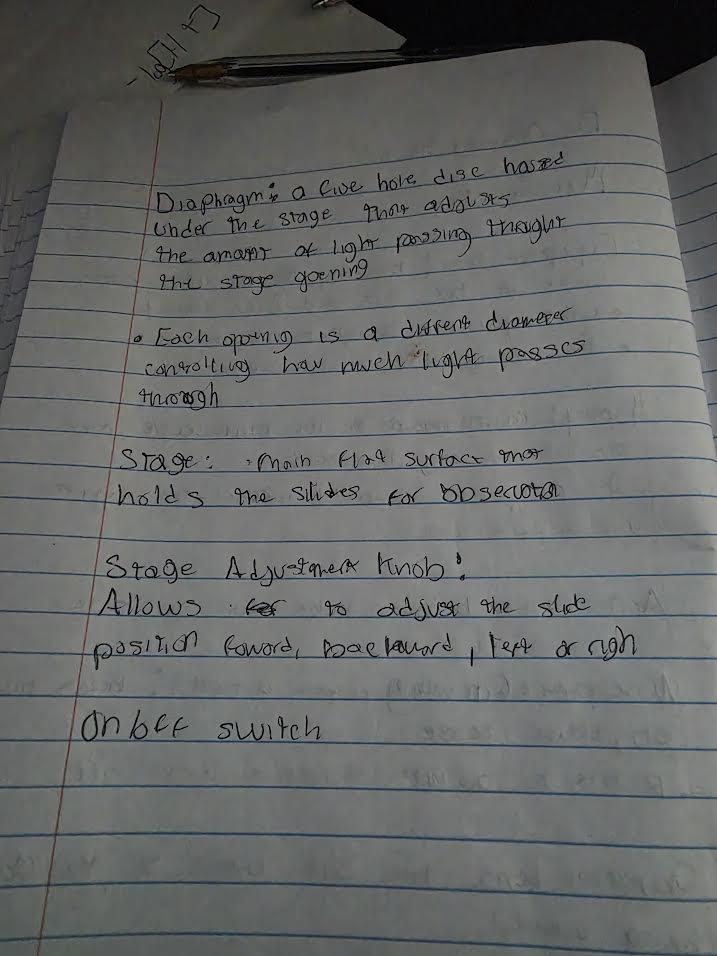

Microscope Structure and Function
Diaphragm
The diaphragm is a component of the microscope located under the stage. It is typically a disc with multiple holes of varying diameters. The diaphragm regulates the amount of light that passes through the stage opening and onto the specimen.
Function: Adjusts the intensity and size of the light beam that reaches the specimen.
Design: Each opening in the diaphragm is a different diameter, allowing for control over how much light passes through.
Importance: Proper adjustment enhances contrast and resolution when viewing specimens.
Stage
The stage is the main flat surface of the microscope where slides are placed for observation.
Function: Holds the microscope slides securely in position during examination.
Design: Often equipped with clips or a mechanical stage to keep slides steady.
Stage Adjustment Knob
The stage adjustment knob allows the user to move the stage (and thus the slide) in different directions for precise positioning.
Function: Adjusts the slide position forward, backward, left, or right.
Importance: Enables accurate alignment of the specimen under the objective lens for detailed observation.
On/Off Switch
The on/off switch controls the power supply to the microscope's light source.
Function: Turns the illumination system on or off as needed.
Importance: Essential for conserving energy and prolonging the life of the microscope's light bulb.
