Introduction to Organic Chemistry: Alkanes, Alkenes, and Alkynes – Structure, Nomenclature, and Properties

Introduction to Organic Chemistry

Organic chemistry is the study of compounds primarily composed of carbon and hydrogen, often containing other elements such as oxygen, nitrogen, and halogens. This section focuses on the structure, nomenclature, and properties of hydrocarbons, including alkanes, alkenes, and alkynes.

Alkanes

Structure and Classification

Alkanes are saturated hydrocarbons containing only single bonds between carbon atoms. Their general formula is $C_nH_{2n+2}$, where n is the number of carbon atoms. Alkanes can be straight-chain (normal) or branched.

• Straight-chain alkanes: All carbon atoms are connected in a single continuous chain.

• Branched alkanes: One or more carbon atoms are attached as branches (substituents) to the main chain.

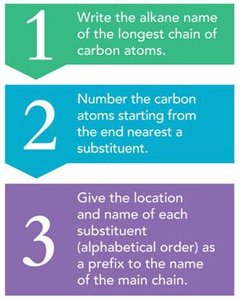

Naming Alkanes (IUPAC System)

The International Union of Pure and Applied Chemistry (IUPAC) system provides a standardized method for naming alkanes. The process involves three main steps:

• Step 1: Identify the longest continuous chain of carbon atoms (parent hydrocarbon) and name it using the appropriate alkane name (e.g., methane, ethane, propane, etc.).

• Step 2: Number the carbon atoms in the main chain starting from the end nearest a substituent (branch).

• Step 3: Name and locate each substituent, listing them in alphabetical order as prefixes to the parent name. Use prefixes such as di-, tri-, tetra- for multiple identical substituents, and separate numbers with commas.

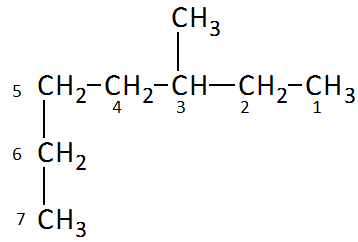

Example: Naming a Branched Alkane

• Longest chain: 7 carbons (heptane)

• Substituent: 1-carbon methyl group at position 3

• Name: 3-methylheptane

Common Substituents

• Methyl: –CH3

• Ethyl: –CH2CH3

• Propyl: –CH2CH2CH3

Haloalkanes

Halogen atoms (F, Cl, Br, I) can replace hydrogen atoms in alkanes, forming haloalkanes. These are named by treating the halogen as a substituent, using prefixes such as fluoro-, chloro-, bromo-, and iodo-.

• Halogen substituents are listed in alphabetical order with other substituents.

• Example: 3-chloro-2-methylpentane

Alkenes and Alkynes

Structure and Classification

Alkenes are unsaturated hydrocarbons containing at least one carbon-carbon double bond (C=C), with the general formula $C_nH_{2n}$. Alkynes contain at least one carbon-carbon triple bond (C≡C), with the general formula $C_nH_{2n-2}$.

• Each carbon atom forms four bonds.

• Alkenes and alkynes are classified as unsaturated hydrocarbons due to the presence of multiple bonds.

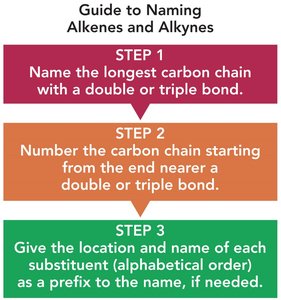

Naming Alkenes and Alkynes (IUPAC System)

The nomenclature for alkenes and alkynes follows similar principles as for alkanes, with additional rules for multiple bonds:

• Step 1: Identify the longest chain containing the double or triple bond.

• Step 2: Number the chain from the end nearest the multiple bond.

• Step 3: Indicate the position of the double/triple bond and any substituents, listing substituents in alphabetical order.

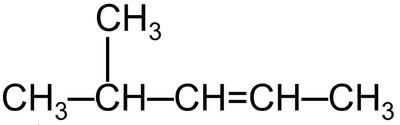

Example: Naming an Alkene

• Longest chain: 5 carbons (pentene)

• Double bond at position 2

• Methyl group at position 4

• Name: 4-methyl-2-pentene

Example: Naming an Alkyne

• Longest chain: 4 carbons (butyne)

• Triple bond at position 1

• Methyl group at position 3

• Name: 3-methyl-1-butyne

Physical Properties of Alkanes, Alkenes, and Alkynes

• All are non-polar and insoluble in water.

• They are soluble in non-polar solvents.

• Boiling and melting points increase with molecular weight.

Summary Table: Hydrocarbon Types and Formulas

Type	General Formula	Example Structure	Molecular Formula
Alkane	$C_nH_{2n+2}$	Ethane: CH3CH3	C2H6
Alkene	$C_nH_{2n}$	Ethene: CH2=CH2	C2H4
Alkyne	$C_nH_{2n-2}$	Ethyne: HC≡CH	C2H2

Practice: Naming Hydrocarbons

• Apply the IUPAC rules to name complex branched and substituted hydrocarbons.

• Remember to identify the longest chain, number the carbons, and list substituents alphabetically.

Summary

• Alkanes, alkenes, and alkynes are the fundamental classes of hydrocarbons.

• IUPAC nomenclature provides a systematic way to name these compounds based on structure and substituents.

• Physical properties are influenced by molecular weight and structure.
