Naming Alkanes, Alkenes, and Alkynes: IUPAC Nomenclature and Structural Formulas

Introduction to Organic Chemistry: Hydrocarbons

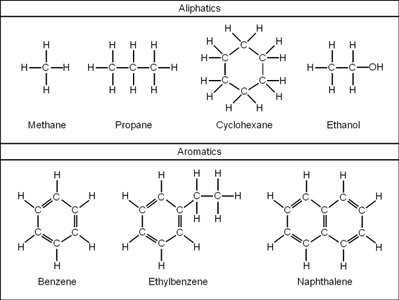

Overview of Hydrocarbons

Hydrocarbons are organic compounds composed entirely of carbon and hydrogen. They are classified based on the types of bonds between carbon atoms and the presence of rings or branches. The main classes include alkanes (single bonds), alkenes (double bonds), alkynes (triple bonds), and aromatic compounds (ring structures with delocalized electrons).

• Alkanes: Saturated hydrocarbons with only single C–C and C–H bonds.

• Alkenes: Unsaturated hydrocarbons containing at least one C=C double bond.

• Alkynes: Unsaturated hydrocarbons containing at least one C≡C triple bond.

• Aromatics: Compounds with conjugated ring systems, such as benzene.

Alkanes: Structure and Nomenclature

Structural Formulas of Alkanes

Alkanes can be represented using structural formulas that show the arrangement of carbon and hydrogen atoms. The general formula for alkanes is $C_nH_{2n+2}$.

• Condensed structural formulas are often used for simplicity.

• Branched alkanes have substituents (alkyl groups) attached to the main chain.

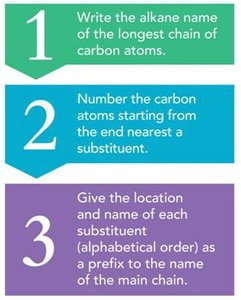

IUPAC Rules for Naming Alkanes

The International Union of Pure and Applied Chemistry (IUPAC) provides systematic rules for naming alkanes:

1. Identify the longest continuous chain of carbon atoms (parent hydrocarbon).

2. Number the carbon atoms in the chain starting from the end nearest a substituent.

3. Name and locate each substituent (alkyl group) as a prefix, listing them in alphabetical order. Use prefixes (di-, tri-, tetra-) for multiple identical substituents.

Example: Naming a Branched Alkane

Consider the following structure:

• Longest chain: 7 carbons (heptane).

• Substituents: Methyl group at carbon 3, ethyl group at carbon 5.

• Name: 5-ethyl-3-methylheptane (substituents listed alphabetically).

Summary Table: Steps for Naming Alkanes

Step	Description
1	Find the longest carbon chain (parent name)
2	Number the chain from the end nearest a substituent
3	Name and locate each substituent; list alphabetically

Alkenes and Alkynes: Structure and Nomenclature

Structural Formulas and General Properties

Alkenes and alkynes are unsaturated hydrocarbons. Their general formulas are:

• Alkenes: $C_nH_{2n}$

• Alkynes: $C_nH_{2n-2}$

Physical Properties

• Non-polar molecules

• Insoluble in water, soluble in non-polar solvents

• Boiling and melting points increase with molecular weight

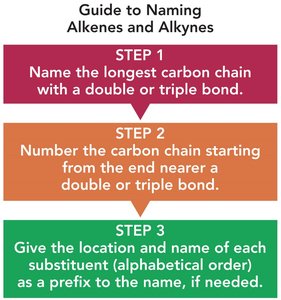

IUPAC Rules for Naming Alkenes and Alkynes

The nomenclature for alkenes and alkynes is similar to that for alkanes, with additional rules for double and triple bonds:

1. Name the longest carbon chain containing the double or triple bond.

2. Number the chain from the end nearest the multiple bond.

3. Indicate the position of the double/triple bond and any substituents.

Example: Naming an Alkene

Consider the following structure:

• Longest chain: 5 carbons (pentene)

• Double bond at carbon 2

• Methyl group at carbon 4

• Name: 4-methyl-2-pentene

Example: Naming an Alkyne

Consider the following structure:

• Longest chain: 4 carbons (butyne)

• Triple bond at carbon 1

• Methyl group at carbon 3

• Name: 3-methyl-1-butyne

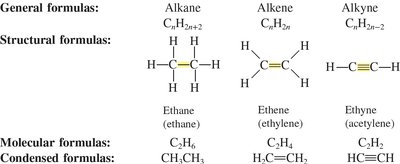

Comparison of Alkanes, Alkenes, and Alkynes

Type	General Formula	Bond Type	Example
Alkane	$C_nH_{2n+2}$	Single bonds	Ethane: CH3CH3
Alkene	$C_nH_{2n}$	Double bond	Ethene: CH2=CH2
Alkyne	$C_nH_{2n-2}$	Triple bond	Ethyne: HC≡CH

Summary

• Identify the longest chain and functional group (alkane, alkene, alkyne).

• Number the chain to give the lowest possible numbers to substituents and multiple bonds.

• Name and locate each substituent, listing them alphabetically.

• Use prefixes for multiple identical substituents (di-, tri-, tetra-).
