Liquids, Solids, and Intermolecular Forces: Study Notes

Liquids, Solids, and Intermolecular Forces

Introduction

This chapter explores the properties of liquids and solids, the nature of intermolecular forces, and how these forces influence the physical behavior of substances. Understanding these concepts is essential for explaining phenomena such as surface tension, viscosity, phase changes, and the unique properties of water.

States of Matter and Their Properties

Classification of Matter

Matter exists in three primary states: solid, liquid, and gas. The state of a substance depends on the balance between intermolecular forces and thermal energy.

• Solids: Definite shape and volume; strong intermolecular forces; particles vibrate about fixed positions.

• Liquids: Indefinite shape, definite volume; moderate intermolecular forces; particles are close but can move past each other.

• Gases: Indefinite shape and volume; weak intermolecular forces; particles are far apart and move freely.

Phase	Density	Shape	Volume	Strength of Intermolecular Forces	Example
Gas	Low	Indefinite	Indefinite	Weak	CO2
Liquid	High	Indefinite	Definite	Moderate	H2O
Solid	High	Definite	Definite	Strong	NaCl

Shape and Movement in Liquids and Solids

Liquids flow and take the shape of their container due to the mobility of their molecules, while solids retain a fixed shape because their particles are locked in place, only vibrating about fixed points.

Intermolecular Forces

Definition and Importance

Intermolecular forces are attractive forces between molecules or atoms. They are responsible for the existence of liquids and solids and influence many physical properties, such as boiling and melting points.

Types of Intermolecular Forces

• Dispersion Forces (London Forces): Present in all molecules and atoms; arise from temporary fluctuations in electron distribution, creating instantaneous dipoles.

• Dipole–Dipole Forces: Occur in polar molecules; permanent dipoles attract each other.

• Hydrogen Bonds: A special, strong type of dipole–dipole force; occurs when hydrogen is bonded to F, O, or N.

• Ion–Dipole Forces: Occur between ionic compounds and polar molecules, especially in solutions.

Manifestations of Intermolecular Forces in Liquids

Surface Tension

Surface tension is the tendency of a liquid to minimize its surface area, creating a "skin" that resists external force. It results from molecules at the surface experiencing fewer attractive interactions than those in the interior.

Viscosity

Viscosity is a liquid's resistance to flow. It increases with stronger intermolecular forces and with longer, entangled molecules. For example, maple syrup is more viscous than water due to stronger molecular interactions.

Phase Changes: Evaporation, Condensation, Melting, Freezing, and Sublimation

Evaporation and Condensation

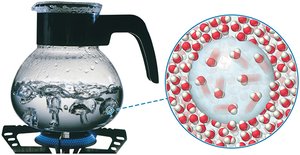

Evaporation is the process by which molecules at the surface of a liquid gain enough energy to enter the gas phase. Condensation is the reverse process, where gas molecules lose energy and return to the liquid state.

• Evaporation increases with higher temperature, larger surface area, and weaker intermolecular forces.

• Volatile liquids evaporate easily; nonvolatile liquids do not.

Dynamic Equilibrium and Vapor Pressure

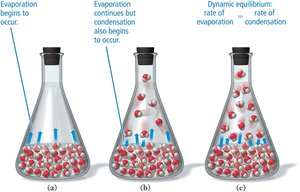

In a closed system, evaporation and condensation reach a dynamic equilibrium where the rate of both processes is equal. The pressure exerted by the vapor at equilibrium is called the vapor pressure.

• Vapor pressure increases with temperature and decreases with stronger intermolecular forces.

• At the boiling point, vapor pressure equals atmospheric pressure.

Heating Curves and Energetics of Phase Changes

During phase changes, temperature remains constant while the substance absorbs or releases heat. The heat of vaporization ($\Delta H_{vap}$) is the energy required to vaporize one mole of a liquid. The heat of fusion ($\Delta H_{fus}$) is the energy required to melt one mole of a solid.

• Evaporation and melting are endothermic (absorb heat).

• Condensation and freezing are exothermic (release heat).

Liquid	Chemical Formula	Normal Boiling Point (°C)	Heat of Vaporization at Boiling Point (kJ/mol)	Heat of Vaporization at 25°C (kJ/mol)
Water	H2O	100.0	40.7	44.0
Isopropyl alcohol	C3H8O	82.3	39.9	45.4
Acetone	C3H6O	56.1	29.1	31.3
Diethyl ether	C4H10O	34.5	25.3	27.1

Melting and Freezing

Melting occurs when a solid absorbs enough energy for its particles to overcome intermolecular forces and become liquid. Freezing is the reverse process. The temperature remains constant during the phase change.

Liquid	Chemical Formula	Melting Point (°C)	Heat of Fusion (kJ/mol)
Water	H2O	0.00	6.02
Isopropyl alcohol	C3H8O	-89.5	5.37
Acetone	C3H6O	-94.8	5.69
Diethyl ether	C4H10O	-116.3	7.27

Sublimation

Sublimation is the direct transition from solid to gas without passing through the liquid phase. Dry ice (solid CO2) is a common example, subliming at atmospheric pressure.

Types of Intermolecular Forces in Detail

Dispersion Forces (London Forces)

Dispersion forces arise from temporary shifts in electron density, creating instantaneous dipoles that induce dipoles in neighboring atoms or molecules. These forces are present in all substances and increase with molar mass and polarizability.

Dipole–Dipole Forces

Dipole–dipole forces occur between polar molecules, where the positive end of one molecule is attracted to the negative end of another. These forces raise melting and boiling points compared to nonpolar molecules of similar mass.

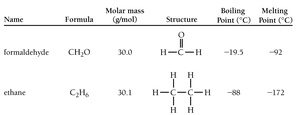

Name	Formula	Molar Mass (g/mol)	Structure	Boiling Point (°C)	Melting Point (°C)
Formaldehyde	CH2O	30.0	O=CH2	-19.5	-92
Ethane	C2H6	30.1	H3C–CH3	-88	-172

Polarity and Miscibility

Polar liquids mix with other polar liquids (miscible), but not with nonpolar liquids. For example, water (polar) does not mix with oil (nonpolar).

Determining Dipole–Dipole Forces

To determine if a molecule has dipole–dipole forces, check for polar bonds and whether the molecular geometry results in a net dipole moment.

Hydrogen Bonding

Hydrogen bonds are strong dipole–dipole interactions that occur when hydrogen is bonded to fluorine, oxygen, or nitrogen. These bonds are responsible for the high boiling point of water and play a crucial role in biological molecules like DNA.

Types of Crystalline Solids

Molecular Solids

Composed of molecules held together by intermolecular forces (dispersion, dipole–dipole, hydrogen bonds). Examples: ice (H2O), dry ice (CO2).

Ionic Solids

Composed of cations and anions held together by ionic bonds. These solids have high melting points. Example: NaCl.

Atomic Solids

Composed of individual atoms. Subdivided into:

• Covalent atomic solids: Atoms connected by covalent bonds (e.g., diamond).

• Nonbonding atomic solids: Atoms held by dispersion forces (e.g., solid xenon).

• Metallic atomic solids: Atoms held by metallic bonds (electron sea model).

Water: A Remarkable Molecule

Unique Properties of Water

Water's bent molecular geometry and strong hydrogen bonding give it a high boiling point, high polarity, and the ability to dissolve many substances. Water expands upon freezing, making ice less dense than liquid water, which is vital for aquatic life.

Summary Table: Types of Intermolecular Forces

Type of Force	Occurs Between	Relative Strength	Example
Dispersion	All molecules/atoms	Weakest	He, CO2
Dipole–Dipole	Polar molecules	Intermediate	CH2O
Hydrogen Bond	H bonded to F, O, or N	Strong	H2O, NH3
Ion–Dipole	Ions and polar molecules	Strongest	Na+ in H2O

Additional info: These notes are structured to provide a comprehensive overview of the key concepts in Chapter 12, suitable for introductory chemistry students preparing for exams or seeking a concise reference.
