Chapter 4: Forces and Newton’s Laws of Motion – Study Guide

Forces and Newton’s Laws of Motion

Introduction to Forces and Motion

Understanding the relationship between force and motion is fundamental in physics. Forces are responsible for changes in the motion of objects, and Newton’s laws provide a framework for analyzing these effects.

• Force: A push or pull acting on an object, capable of changing its velocity.

• Agent: The source of the force (e.g., a person, gravity).

• Object of Interest: The object experiencing the force.

What Causes Motion?

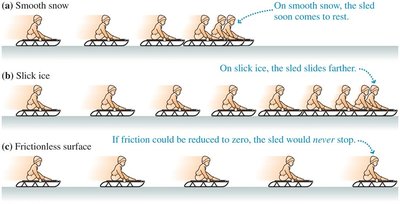

Motion is caused by forces. However, the persistence of motion depends on the presence or absence of forces such as friction.

• Friction: A force that opposes motion between surfaces in contact.

• Objects slow down at different rates depending on friction.

• In the absence of friction, objects continue moving indefinitely (e.g., space probes).

Newton’s First Law (Law of Inertia)

Newton’s first law states that an object at rest remains at rest, and an object in motion continues in motion with constant velocity unless acted upon by a net external force.

• Uniform motion: No net force implies constant velocity.

• Example: A car crash dummy continues moving forward when the car stops suddenly, illustrating inertia.

What is a Force?

Definition and Properties

A force is a vector quantity, meaning it has both magnitude and direction. Forces can be classified as contact or long-range (non-contact).

• Contact forces: Require physical contact (e.g., friction, tension).

• Long-range forces: Act without contact (e.g., gravity, electromagnetic).

• Every force has an agent and acts on an object.

Force as a Vector

Forces are represented by arrows in diagrams, with the tail at the object and the arrow pointing in the direction of the force. The length of the arrow is proportional to the magnitude.

• Notation: $\vec{F}$ for force vector, $F$ for magnitude.

Types of Forces

• Tension: Pulling force from a rope or string.

• Spring force: Push or pull from a compressed or stretched spring.

• Weight: Gravitational force exerted by Earth.

Combining Forces and Net Force

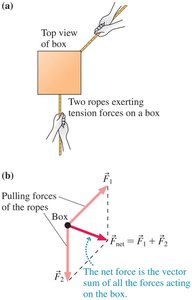

Vector Addition of Forces

When multiple forces act on an object, the net force is the vector sum of all individual forces. The net force determines the object's acceleration.

• Equation: $\vec{F}_{\text{net}} = \vec{F}_1 + \vec{F}_2 + \vec{F}_3 + \cdots$

• The net force is not a new force but the result of combining all acting forces.

Catalog of Common Forces

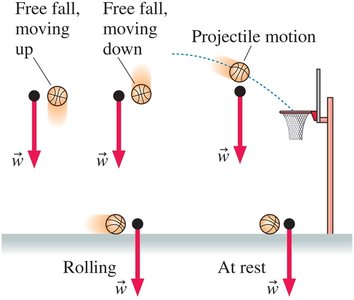

Weight (Gravitational Force)

The weight of an object is the gravitational pull exerted by Earth. It always acts vertically downward.

• Agent: Earth

• Direction: Downward

• Notation: $\vec{w}$

• Equation: $w = mg$

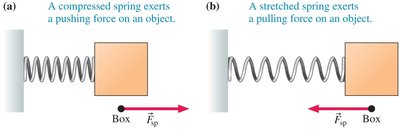

Spring Force

Springs exert forces when compressed or stretched. The force is proportional to the displacement from equilibrium.

• Equation: $F_{\text{sp}} = -k x$ (Hooke’s Law)

• Direction: Opposite to displacement

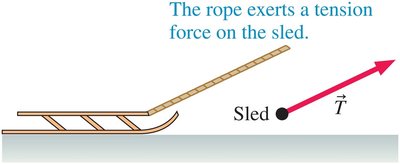

Tension Force

Tension is the pulling force exerted by a string, rope, or cable. It always acts along the direction of the string.

• Notation: $\vec{T}$

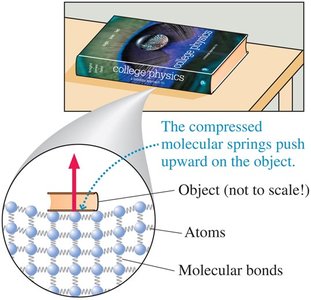

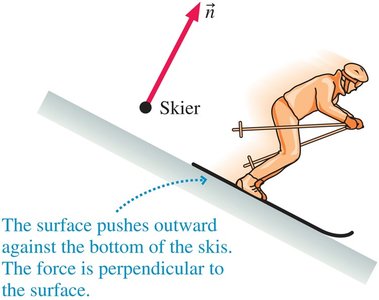

Normal Force

The normal force is exerted by a surface perpendicular to the object pressing against it. It is responsible for the "solidness" of solids.

• Notation: $\vec{n}$

• Direction: Perpendicular to the surface

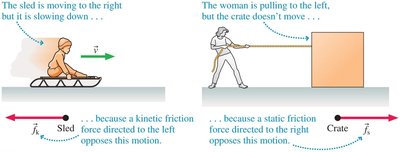

Friction

Friction is a force exerted by a surface, always parallel to the surface. It opposes motion or prevents it.

• Kinetic friction ($\vec{f}_k$): Acts when an object slides across a surface.

• Static friction ($\vec{f}_s$): Prevents motion when an object is at rest.

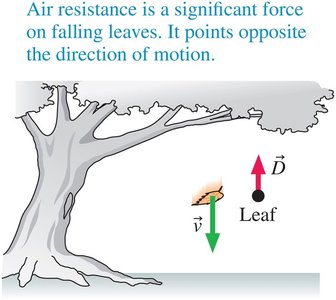

Drag

Drag is the resistive force of a fluid (air or water) on a moving object, acting opposite to the direction of motion.

• Notation: $\vec{D}$

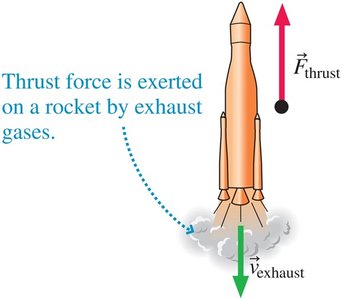

Thrust

Thrust is a force produced when a jet or rocket engine expels gas molecules at high speed, acting opposite to the direction of the expelled gas.

• Notation: $\vec{F}_{\text{thrust}}$

Identifying Forces and Free-Body Diagrams

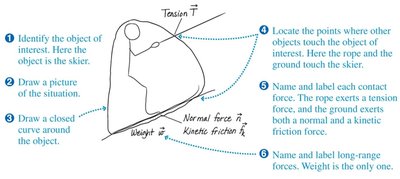

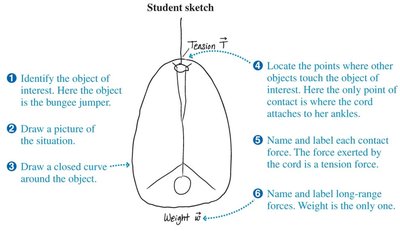

Steps to Identify Forces

To analyze a physical situation, follow these steps:

1. Identify the object of interest.

2. Draw a picture of the situation.

3. Draw a closed curve around the object.

4. Locate points of contact for contact forces.

5. Name and label each contact and long-range force.

Common Forces Table

The following table summarizes common forces and their notation:

Force	Notation
General force	$\vec{F}$
Weight	$\vec{w}$
Spring force	$\vec{F}_{\text{sp}}$
Tension	$\vec{T}$
Normal force	$\vec{n}$
Static friction	$\vec{f}_s$
Kinetic friction	$\vec{f}_k$
Drag	$\vec{D}$
Thrust	$\vec{F}_{\text{thrust}}$

What Do Forces Do? (Newton’s Second Law)

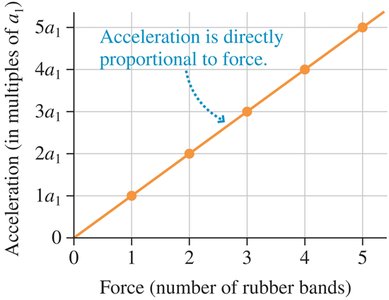

Force and Acceleration

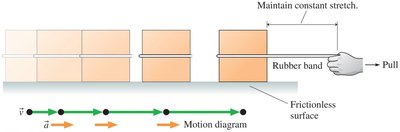

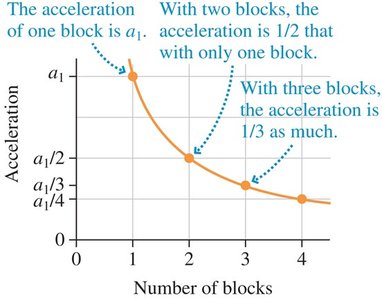

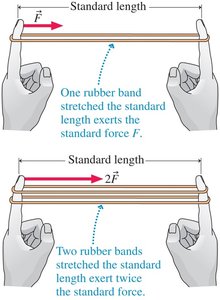

Experiments show that a constant force causes a constant acceleration. The acceleration is directly proportional to the force and inversely proportional to the mass.

• Equation: $a = \frac{F}{m}$

• Direction of acceleration is the same as the net force.

Newton’s Second Law

Newton’s second law states that the net force acting on an object is equal to the product of its mass and acceleration.

• Vector form: $\vec{F}_{\text{net}} = m \vec{a}$

• Scalar form: $F_{\text{net}} = m a$

Free-Body Diagrams

Drawing Free-Body Diagrams

Free-body diagrams are essential for solving dynamics problems. They show all forces acting on an object, represented as vectors from a dot (particle model).

1. Identify all forces.

2. Draw coordinate axes.

3. Represent the object as a dot.

4. Draw and label force vectors.

5. Draw the net force vector beside the diagram.

Newton’s Third Law

Action-Reaction Pairs

Newton’s third law states that every force occurs as one member of an action-reaction pair. The two forces are equal in magnitude, opposite in direction, and act on different objects.

• Example: When a hammer hits a nail, the nail pushes back on the hammer.

• Action-reaction pairs exist as pairs or not at all.

Units of Force

Newton

The SI unit of force is the newton (N). One newton is the force required to accelerate a 1 kg mass by 1 m/s2.

• 1 N = 1 kg·m/s2

• 1 lb = 4.45 N

Summary Table: Types of Forces

Type	Agent	Direction	Notation
Weight	Earth	Downward	$\vec{w}$
Tension	Rope/String	Along rope	$\vec{T}$
Normal	Surface	Perpendicular	$\vec{n}$
Friction	Surface	Parallel, opposes motion	$\vec{f}_k$, $\vec{f}_s$
Drag	Fluid	Opposite motion	$\vec{D}$
Thrust	Engine	Opposite exhaust	$\vec{F}_{\text{thrust}}$

Additional info: These notes expand on brief points from the original slides, providing definitions, examples, and equations for clarity and completeness. All images included are directly relevant to the adjacent explanations, visually reinforcing key concepts.
