Capacitors and Dielectrics: Step-by-Step Study Guidance

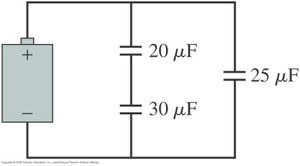

Q1. What is the equivalent capacitance of the three capacitors in the figure?

Background

Topic: Equivalent Capacitance in Series and Parallel Circuits

This question tests your understanding of how to combine capacitors in series and parallel to find the total (equivalent) capacitance of a network.

Key Terms and Formulas

• Parallel Combination: $C_{eq,parallel} = C_1 + C_2 + \ldots$

• Series Combination: $\frac{1}{C_{eq,series}} = \frac{1}{C_1} + \frac{1}{C_2} + \ldots$

Step-by-Step Guidance

1. Identify which capacitors are in parallel and which are in series. In the figure, the 20 μF and 30 μF capacitors are in parallel, and their combination is in series with the 25 μF capacitor.

2. Calculate the equivalent capacitance of the parallel section: $C_{parallel} = 20\ \mu F + 30\ \mu F$.

3. Now, combine this result in series with the 25 μF capacitor: $\frac{1}{C_{eq}} = \frac{1}{C_{parallel}} + \frac{1}{25\ \mu F}$.

4. Set up the equation for $C_{eq}$ but do not solve for the final value yet.

Try solving on your own before revealing the answer!
