Chapter 1: Representing Motion – Structured Study Notes

Chapter 1: Representing Motion

1.1 Motion: A First Look

Motion is a fundamental concept in physics, describing how objects change position over time. Understanding motion is essential for analyzing physical systems and predicting their behavior.

• Definition: Physics is the branch of science concerned with the nature and properties of matter and energy, including mechanics, heat, light, sound, electricity, magnetism, and atomic structure.

• Definition: Science is the systematic study of the world through observation and experimentation.

• Physical theories are mathematical models that describe how systems work and make predictions, which are tested by experiments.

• Every theory is subject to revision as new data and insights emerge.

1.2 Models and Modeling

Physics relies on models to simplify and understand complex systems. Models are representations that help predict and explain physical phenomena.

• Models are simplified descriptions of reality, often expressed mathematically.

• Experiments are used to test the predictions of models.

• Models evolve as new experimental evidence is gathered.

Systems of Measurement and Their Units

Measurement systems provide standardized units for quantifying physical quantities. The three main systems are SI, cgs, and US Customary.

System	Length	Mass	Time
SI	meter (m)	kilogram (kg)	second (s)
cgs	centimeter (cm)	gram (g)	second (s)
US Customary	foot (ft)	slug	second (s)

• The SI system (Système International) is the most widely used and is based on seven fundamental units.

• Mechanics uses three fundamental quantities: length, mass, and time.

• Measurement results must include both a number and a unit.

Standards of Length, Mass, and Time

• Length (meter): Defined as the distance light travels in vacuum in 1/299,792,458 seconds.

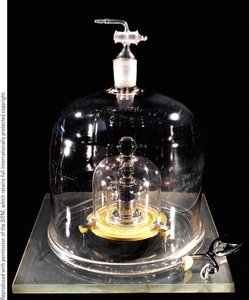

• Mass (kilogram): Defined by the mass of a specific platinum-iridium alloy cylinder kept at the International Bureau of Weights and Measures, France.

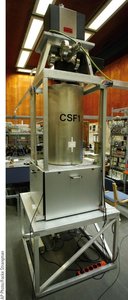

• Time (second): Defined as 9,192,632,700 periods of oscillation of radiation from the cesium atom.

1.3 Position and Time: Putting Numbers on Nature

To describe the position of objects, coordinate systems are used. These systems provide a reference for specifying locations in space.

• A coordinate system consists of an origin, axes, scales, and instructions for labeling points.

• Two common types: Cartesian (rectangular) and plane polar.

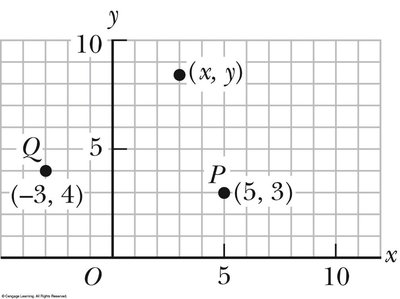

Cartesian Coordinate System

• Uses x- and y-axes; points are labeled (x, y).

• Positive x is to the right, positive y is upward from the origin.

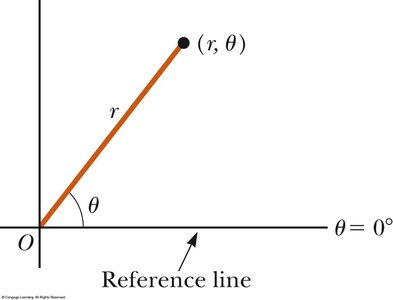

Plane Polar Coordinate System

• Uses an origin and a reference line.

• Points are labeled (r, θ), where r is the distance from the origin and θ is the angle from the reference line.

• Positive angles are measured counterclockwise from the reference line.

1.4 Velocity

Velocity is a measure of how quickly an object changes its position. It is a vector quantity, meaning it has both magnitude and direction.

• Velocity is often calculated as the change in position divided by the change in time.

• Units for velocity are typically meters per second (m/s) in SI.

1.5 A Sense of Scale: Significant Figures, Scientific Notation, and Units

Scientific notation and significant figures are used to express measurements clearly and accurately, especially when dealing with very large or small numbers.

• Scientific notation expresses numbers as a product of a coefficient and a power of ten, e.g., $1.215 \times 10^{10}$.

• Significant figures are the digits in a measurement that are reliably known.

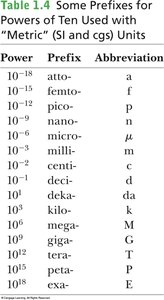

• Prefixes correspond to powers of ten and are used to simplify unit expressions.

Unit Conversions

• Units can be converted using conversion factors, which allow units to "cancel" algebraically.

• Example: Converting 90 km/h to m/s or MPH.

Dimensional Analysis

• Technique for checking the correctness of equations by ensuring both sides have the same dimensions.

• Dimensions can be added, subtracted, multiplied, or divided like algebraic quantities.

Expressing Numbers

• Numbers with more than three digits are grouped for clarity, e.g., 10 000 instead of 10,000.

Significant Figures and Operations

• Multiplication/division: Result has the same number of significant figures as the least accurate factor.

• Addition/subtraction: Result is rounded to the smallest number of decimal places in any term.

• Proper rounding is essential to avoid reporting more digits than are significant.

Uncertainty

• All measurements have uncertainty, which must be accounted for in calculations.

• Significant figures help approximate uncertainty in results.

Estimates and Order-of-Magnitude Calculations

• Order-of-magnitude calculations provide approximate answers based on assumptions.

• Order of magnitude refers to the power of ten that applies to a quantity.

1.6 Vectors and Motion: A First Look

Vectors are quantities that have both magnitude and direction, such as displacement, velocity, and acceleration. Understanding vectors is crucial for analyzing motion in physics.

• Vectors are represented graphically by arrows.

• Mathematical operations with vectors include addition, subtraction, and multiplication by scalars.

Trigonometry Review

Trigonometry is used to relate angles and sides in right triangles, which is essential for analyzing motion and vectors.

• Degrees and radians are units for measuring angles.

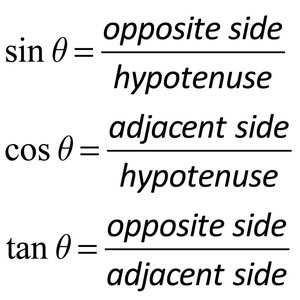

• Key trigonometric functions: sine, cosine, tangent.

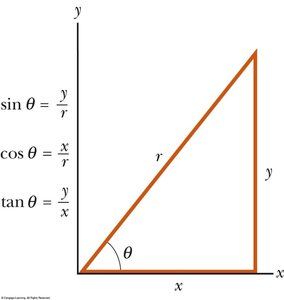

Rectangular and Polar Coordinates

• Rectangular to polar: $r = \sqrt{x^2 + y^2}$, $\theta = \tan^{-1}(y/x)$

• Polar to rectangular: $x = r \cos \theta$, $y = r \sin \theta$

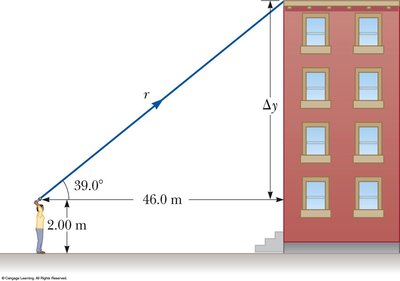

Example: Measuring the Height of a Building

This example demonstrates the application of trigonometry and coordinate systems to solve a real-world problem.

• A person measures the height of a building by walking 46.0 m from its base and shining a flashlight at a 39.0° angle.

• Height calculation: $\Delta y = \tan 39^ ext{o} \times 46.0 \text{ m} = 37.3 \text{ m}$

• Add the height of the flashlight: $h = \Delta y + 2.00 \text{ m} = 39.3 \text{ m}$

• Length of the light beam: $r = \sqrt{46.0^2 + 37.3^2} = 59.2 \text{ m}$

• Alternatively, $r = \frac{46.0 \text{ m}}{\cos 39.0^ ext{o}} = 59.2 \text{ m}$

1.7 Where Do We Go from Here?

This chapter provides the foundational concepts for representing motion, which are essential for further study in physics. Understanding measurement systems, coordinate systems, vectors, and trigonometry prepares students for analyzing more complex motion in subsequent chapters.
