DC Circuits, Batteries, and RC Circuits: Study Notes

DC Circuits and Circuit Elements

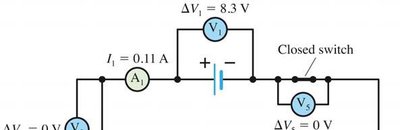

Basic Circuit Components

DC circuits are composed of batteries (voltage sources), resistors, switches, and measuring devices such as voltmeters and ammeters. Understanding how these elements interact is fundamental to circuit analysis.

• Batteries provide a constant electromotive force (emf) to drive current.

• Resistors impede the flow of current, converting electrical energy into heat.

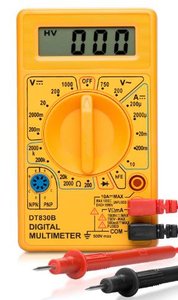

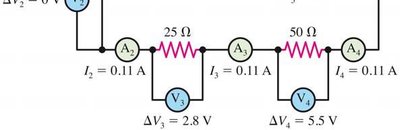

• Voltmeters measure potential difference and are connected in parallel.

• Ammeters measure current and are connected in series.

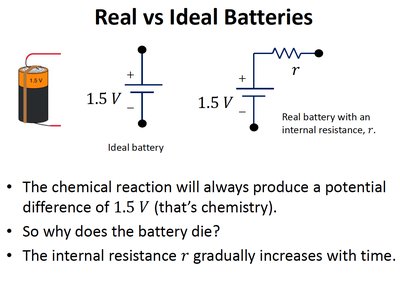

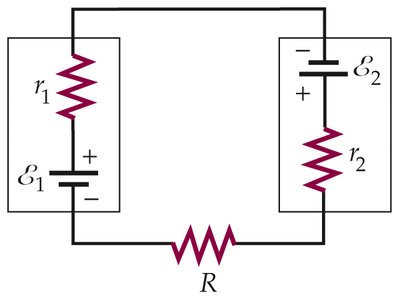

Real vs. Ideal Batteries

Batteries are modeled as ideal or real. An ideal battery maintains a constant voltage regardless of the current drawn, while a real battery has internal resistance that affects its performance over time.

• Ideal Battery: No internal resistance; voltage remains constant.

• Real Battery: Has internal resistance r that increases with time, causing voltage drop.

• Battery Death: Occurs as internal resistance increases, reducing the effective voltage.

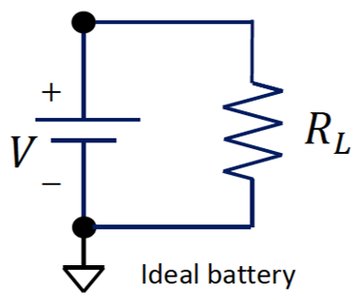

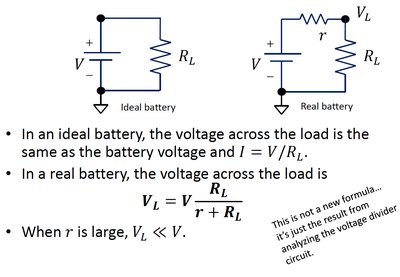

Voltage Across Load: Ideal vs. Real Battery

The voltage delivered to a load resistor R_L differs between ideal and real batteries due to internal resistance.

• For an ideal battery: $I = \frac{V}{R_L}$

• For a real battery: $V_L = V \frac{R_L}{r + R_L}$

• When r is large, $V_L \ll V$

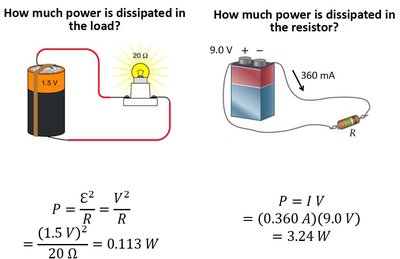

Power Dissipation in Circuits

Power dissipated in a resistor or load is calculated using the voltage and current. This is a key concept for understanding energy transfer in circuits.

• Power in a resistor: $P = \frac{V^2}{R}$ or $P = I V$

• Example: For a 1.5 V battery and 20 Ω resistor, $P = \frac{(1.5)^2}{20} = 0.113\ W$

• Example: For a 9.0 V battery and 360 mA current, $P = 0.360 \times 9.0 = 3.24\ W$

Voltage and Current Relationships

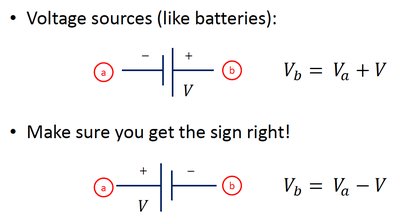

Voltage Sources

When analyzing circuits, it is important to correctly assign the sign and direction of voltage changes across batteries.

• Across a battery from - to +: $V_b = V_a + V$

• Across a battery from + to -: $V_b = V_a - V$

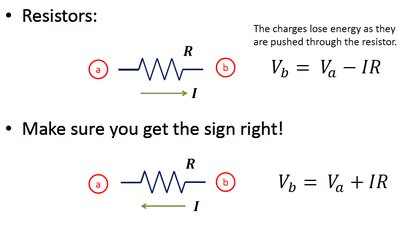

Resistors

Charges lose energy as they pass through a resistor. The voltage drop depends on the direction of current relative to the resistor.

• With current from a to b: $V_b = V_a - I R$

• With current from b to a: $V_b = V_a + I R$

Kirchhoff's Rules and Circuit Analysis

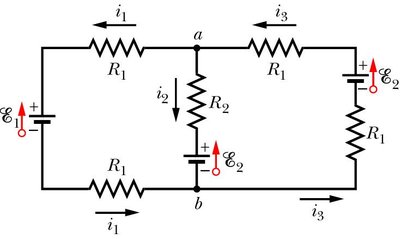

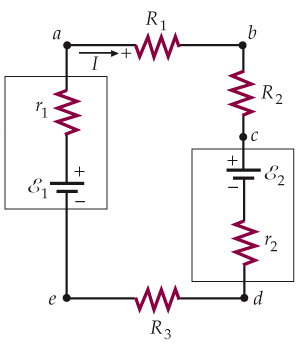

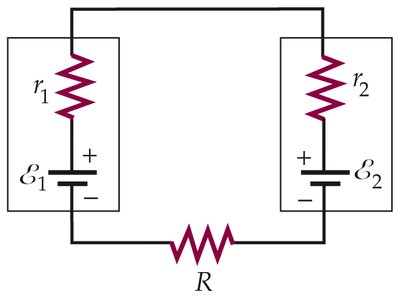

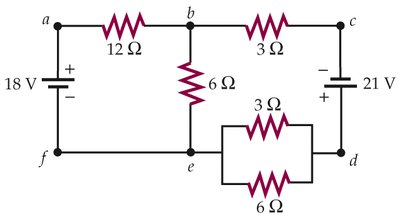

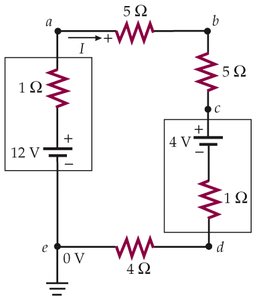

Multiple Loop Circuits

Kirchhoff's rules are essential for analyzing complex circuits with multiple loops and batteries. These rules are:

• Junction Rule: The sum of currents entering a junction equals the sum leaving it (conservation of charge).

• Loop Rule: The sum of potential differences around any closed loop is zero (conservation of energy).

RC Circuits: Charging and Discharging

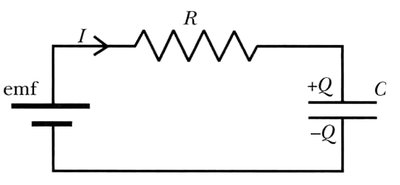

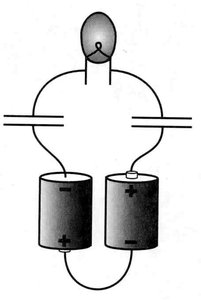

RC Circuit Structure

An RC circuit consists of a resistor (R) and a capacitor (C) connected in series with a voltage source. The behavior of current and charge over time is governed by exponential functions.

• When the circuit is closed, the capacitor charges up, and the current decreases exponentially.

• The time constant $\tau = RC$ determines how quickly the circuit reaches equilibrium.

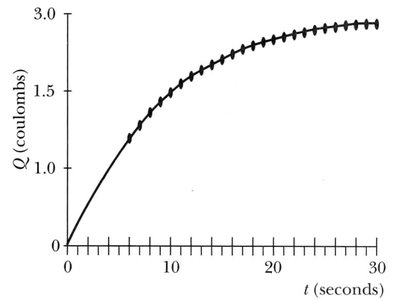

Current and Charge in an RC Circuit

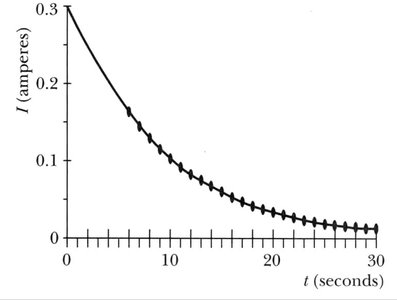

The current and charge in an RC circuit change over time as the capacitor charges or discharges.

• Current: $I(t) = I_0 e^{-t/RC}$, where $I_0 = \frac{\text{emf}}{R}$

• Charge: $Q(t) = C \cdot \text{emf} \left(1 - e^{-t/RC}\right)$

• Voltage across capacitor: $\Delta V = \text{emf} \left(1 - e^{-t/RC}\right)$

RC Time Constant

The time constant $RC$ is a measure of how quickly the circuit responds. After a time $t = RC$, the current drops to $1/e$ of its initial value, and the capacitor is nearly fully charged.

• At $t = RC$, $I = I_0 / e$

• At $t \rightarrow \infty$, $Q = C \cdot \text{emf}$

Component	Symbol	Function
Battery	V	Provides emf
Resistor	R	Limits current, dissipates energy
Capacitor	C	Stores charge
Voltmeter	V	Measures voltage
Ammeter	A	Measures current

Additional info: Academic context was added to clarify the role of each circuit element, the mathematical relationships, and the physical meaning of the RC time constant.
