Electric Charge, Charging Methods, and Coulomb’s Law

Electric Charge

Definition and Properties

Electric charge is a fundamental property of matter that determines its electromagnetic interactions. Objects can be electrically neutral (equal numbers of protons and electrons), negatively charged (excess electrons), or positively charged (deficiency of electrons).

• Unit of charge: Coulomb (C)

• Elementary charge: $|q_e| = 1.6 \times 10^{-19}\ \text{C}$

• Action-at-distance: Charged objects exert forces on each other without contact.

• Same charges: Repel each other

• Opposite charges: Attract each other

Methods of Charging

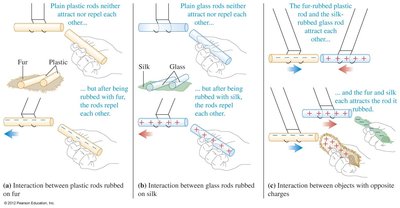

Charging by Friction (Triboelectric Effect)

When two different materials are rubbed together, electrons may transfer from one to the other, resulting in one object becoming positively charged and the other negatively charged. This process is called the triboelectric effect or contact electrification.

• Triboelectric Series: Materials are ranked by their tendency to lose or gain electrons. The material higher in the series loses electrons more easily and becomes positively charged.

Example: Rubbing a glass rod with silk transfers electrons from the glass to the silk, making the glass rod positively charged and the silk negatively charged.

Charging by Induction

Charging by induction allows one object to charge another without direct contact or loss of its own charge. This method relies on the movement of electrons in conductors.

• Conductors: Materials (e.g., metals) where electrons can move freely.

• Insulators (Dielectrics): Materials (e.g., glass, rubber) where electrons are not free to move.

Induction involves bringing a charged object near a conductor, causing electrons to redistribute. If the conductor is grounded, electrons can leave or enter, resulting in a net charge.

Polarization

Polarization occurs when a charged object is brought near an uncharged insulator, causing a slight shift in the positions of electrons and nuclei within the atoms or molecules. This creates a separation of charge (dipole), even though the object remains overall neutral.

• Unpolarized: Charges are symmetrically distributed.

• Polarized: Charges are shifted, creating a dipole effect.

Conductors vs. Insulators

Definitions and Examples

• Conductors: Allow free movement of electric charges (e.g., copper, gold).

• Insulators (Dielectrics): Restrict movement of electric charges (e.g., wood, glass, rubber).

Coulomb’s Law

Quantifying Electric Forces

Coulomb’s Law describes the force between two point charges. The force is proportional to the product of the charges and inversely proportional to the square of the distance between them.

• Formula:

$|\vec{F}_{12}| = k \frac{|q_1||q_2|}{r^2}$

$\vec{F} = \frac{1}{4\pi\epsilon_0} \frac{|q_1||q_2|}{r^2} \hat{r}$

• $q_1, q_2$ = charges (C)

• $r$ = distance between charges (m)

• $k = \frac{1}{4\pi\epsilon_0} \approx 9.0 \times 10^9\ \text{N m}^2/\text{C}^2$

• $\epsilon_0$ = permittivity of free space ($8.852 \times 10^{-12}\ \text{C}^2/\text{N m}^2$)

• Direction: Along the line joining the charges; repulsive for like charges, attractive for unlike charges.

Example: A proton ($q = +1.6 \times 10^{-19}$ C) at the origin and an electron at (2,2) m. Calculate the magnitude and direction of the electric force.

• Magnitude: Use Coulomb’s Law formula.

• Direction: Use unit vector from proton to electron.

Comparison Table: Conductors vs. Insulators

Property	Conductors	Insulators (Dielectrics)
Charge Mobility	High (free electrons)	Low (electrons bound)
Examples	Copper, Gold	Glass, Rubber, Wood
Charging by Induction	Possible	Not possible

Summary

This study guide covers the fundamental concepts of electric charge, methods of charging (friction, induction, polarization), properties of conductors and insulators, and Coulomb’s Law. Understanding these principles is essential for further study in electricity and magnetism.
