Electric Charge, Coulomb's Law, and Vector Quantities: Study Notes for College Physics

Four Fundamental Forces

Overview of Fundamental Forces

The universe is governed by four fundamental forces, each responsible for different interactions between particles and objects. Understanding these forces is essential for studying physics at the college level.

• Gravity: The force of attraction between masses.

• Electromagnetism: The force between charged particles.

• Strong Force: The force that holds atomic nuclei together.

• Weak Force: Responsible for radioactive decay and other subatomic processes.

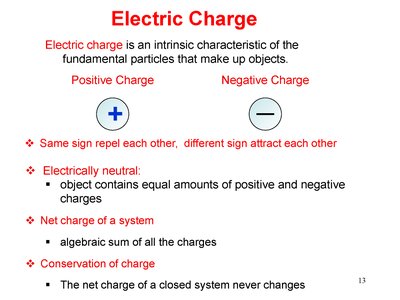

Electric Charge

Properties and Conservation of Electric Charge

Electric charge is a fundamental property of matter, intrinsic to particles such as electrons and protons. It determines how particles interact via electromagnetic forces.

• Positive and Negative Charges: Like charges repel, unlike charges attract.

• Electrically Neutral: Objects with equal amounts of positive and negative charge.

• Net Charge of a System: The algebraic sum of all charges in a system.

• Conservation of Charge: The net charge of a closed system remains constant.

Coulomb's Law

Definition and Experimental Basis

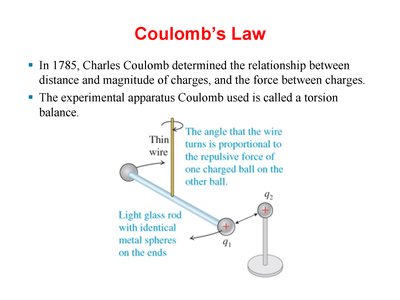

Coulomb's Law describes the force between two point charges. Charles Coulomb established this relationship in 1785 using a torsion balance.

• Force is proportional to the product of charges and inversely proportional to the square of the distance between them.

• Experimental Apparatus: Torsion balance measures the repulsive force between charged spheres.

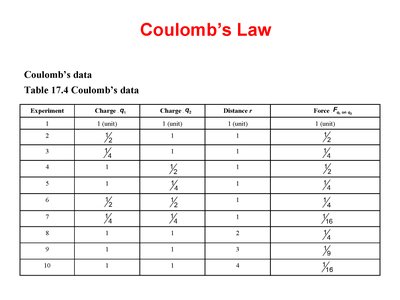

Coulomb's Law Data Table

The table below summarizes experimental data showing how force varies with charge and distance.

Experiment	Charge Q1	Charge Q2	Distance r	Force Fcoulomb
1	1	1	1	1
2	1/2	1	1	1/2
3	1/4	1	1	1/4
4	1	1/2	1	1/2
5	1	1/4	1	1/4
6	1	1	2	1/4
7	1	1	3	1/9
8	1	1	4	1/16
9	1	1	1	1
10	1	1	4	1/16

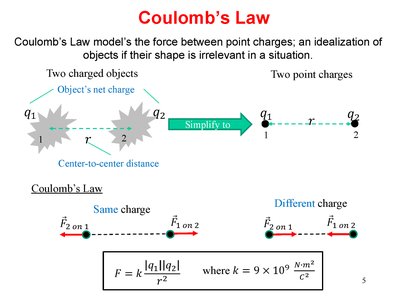

Mathematical Formulation

Coulomb's Law models the force between point charges as:

• Formula: $F = k \frac{|q_1||q_2|}{r^2}$, where $k = 9 \times 10^9 \ \mathrm{N \cdot m^2 / C^2}$

• Direction: The force acts along the line joining the charges.

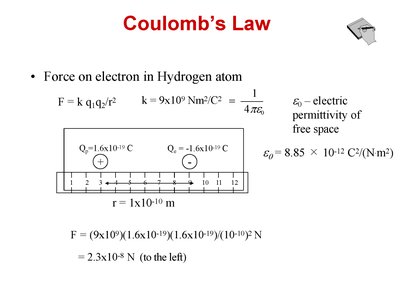

Application: Force on Electron in Hydrogen Atom

Coulomb's Law can be used to calculate the force between a proton and electron in a hydrogen atom:

• Formula: $F = k \frac{q_1 q_2}{r^2}$

• Permittivity of Free Space: $\varepsilon_0 = 8.85 \times 10^{-12} \ \mathrm{C^2/(N \cdot m^2)}$

• Example Calculation: $F = 2.3 \times 10^{-8} \ \mathrm{N}$ (to the left)

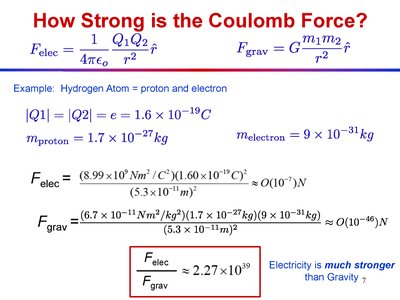

Comparison: Coulomb Force vs. Gravitational Force

The electrostatic force is much stronger than the gravitational force between subatomic particles.

• Electrostatic Force: $F_{elec} = \frac{1}{4\pi\varepsilon_0} \frac{Q_1 Q_2}{r^2}$

• Gravitational Force: $F_{grav} = G \frac{m_1 m_2}{r^2}$

• Ratio: $\frac{F_{elec}}{F_{grav}} \approx 2.27 \times 10^{39}$

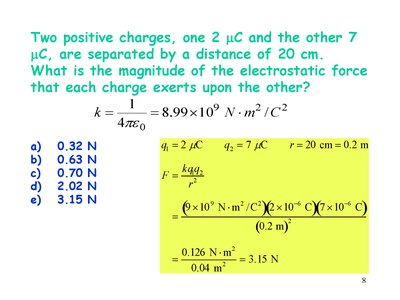

Example Problem: Electrostatic Force Calculation

Calculate the force between two positive charges, 2 μC and 7 μC, separated by 20 cm:

• Formula: $F = k \frac{q_1 q_2}{r^2}$

• Solution: $F = 3.15 \ \mathrm{N}$

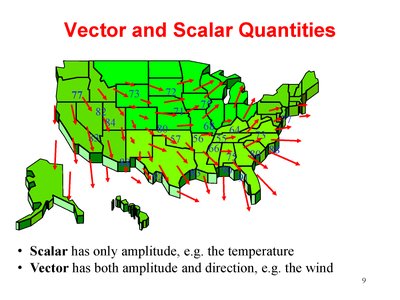

Vector and Scalar Quantities

Definitions and Examples

Physical quantities can be classified as scalars or vectors, which is crucial for problem-solving in physics.

• Scalar: Has magnitude only (e.g., temperature).

• Vector: Has both magnitude and direction (e.g., wind velocity).

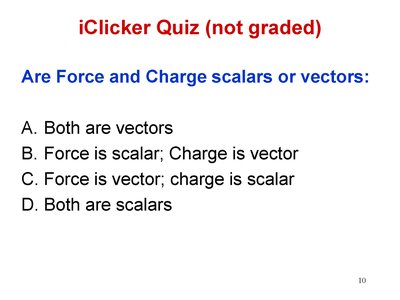

Quiz: Force and Charge Classification

Are force and charge scalars or vectors?

• Force: Vector (has direction and magnitude).

• Charge: Scalar (has magnitude only).

Vector Operations

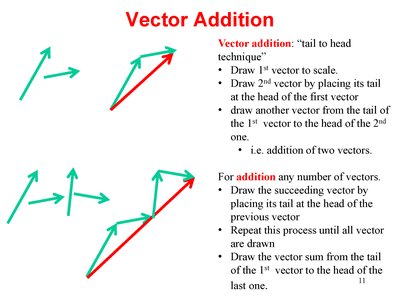

Vector Addition

Vectors are added using the tail-to-head technique, which is fundamental for combining forces and other vector quantities.

• Draw the first vector to scale.

• Place the tail of the second vector at the head of the first.

• Repeat for additional vectors.

• The resultant vector is drawn from the tail of the first to the head of the last.

Vector Subtraction

Vector subtraction uses the same technique as addition, but involves adding the negative of the vector.

• Formula: $\vec{A} - \vec{B} = \vec{A} + (-\vec{B}) = \vec{A} + \vec{C}$

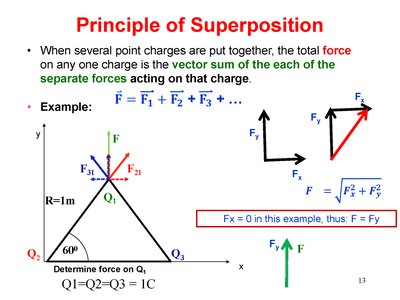

Principle of Superposition

Superposition of Forces

When multiple point charges are present, the total force on any one charge is the vector sum of the individual forces exerted by each charge.

• Formula: $\vec{F} = \vec{F}_1 + \vec{F}_2 + \vec{F}_3 + \ldots$

• Forces are added using vector addition techniques.

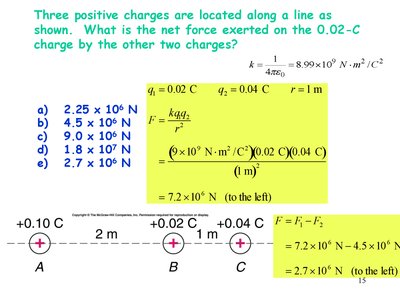

Example: Net Force on a Charge

Calculate the net force exerted on a charge by other charges using superposition and vector addition.

• Apply Coulomb's Law for each pair.

• Add forces as vectors.

Three Charges Triangle Arrangement

Calculating Forces in a Triangle Configuration

To find the force on a charge due to two other charges arranged in a triangle, calculate each force using Coulomb's Law and add them as vectors.

• Calculate force from each charge.

• Decompose forces into x and y components.

• Add components to find the resultant force.

Problem Solving Strategies

Approaches for Physics Problems

Effective problem solving in physics requires clear diagrams, consistent units, and attention to vector properties.

• Draw a clear force diagram.

• Use consistent units (meter, Coulomb, Newton).

• Remember that force is a vector.

• Look for symmetry in the arrangement of charges.

Summary Table: Key Concepts

Concept	Definition	Example
Scalar	Magnitude only	Temperature
Vector	Magnitude and direction	Force, velocity
Coulomb's Law	Force between charges	$F = k \frac{|q_1||q_2|}{r^2}$
Superposition	Vector sum of forces	$\vec{F} = \vec{F}_1 + \vec{F}_2$
