Electric Charges and Forces: Structured Study Notes

Electric Charges and Forces

Introduction to Electric Charge

Electric charge is a fundamental property of matter that gives rise to electric phenomena. Charges interact via long-range forces, similar to gravity, but are much stronger under typical conditions.

• Two Types of Charge: Positive and negative.

• Like Charges: Repel each other.

• Opposite Charges: Attract each other.

• Neutral Objects: Have no net charge.

• Charge Conservation: Charge cannot be created or destroyed.

• Charge Transfer: Charges can be transferred by contact.

Conductors and Insulators

Materials are classified based on their ability to allow charges to move.

• Conductors: Allow charges to move freely (e.g., metals, ionic solutions).

• Insulators: Charges are immobile (e.g., glass, plastic).

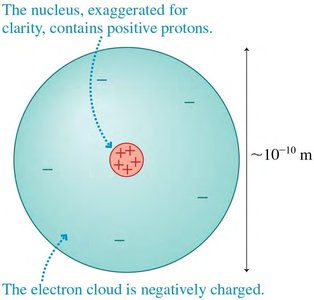

Atomic Structure and Charge

Atoms consist of a dense nucleus containing protons and neutrons, surrounded by a cloud of electrons. The nucleus is positively charged, while the electron cloud is negatively charged.

• Protons: Positive charge, mass ≈ $1.67 \times 10^{-27}$ kg, charge $+1.6 \times 10^{-19}$ C.

• Electrons: Negative charge, mass ≈ $9.11 \times 10^{-31}$ kg, charge $-1.6 \times 10^{-19}$ C.

• Fundamental Unit of Charge: $e = 1.6 \times 10^{-19}$ C.

Charge Quantization

Charge is always an integer multiple of the fundamental unit $e$. The net charge of an object is:

• Formula: $q = (N_p - N_e) e$

• Neutral Objects: $N_p = N_e$, so $q = 0$.

• Charged Objects: $N_p \neq N_e$.

Polarization and Dipoles

When a charge is brought near an atom, the electron cloud shifts, causing polarization. A separation of equal positive and negative charges forms a dipole.

• Polarization: Separation of charge within an atom or molecule.

• Dipole: Equal and opposite charges separated by a distance.

• Induced Dipole: Created by external electric fields.

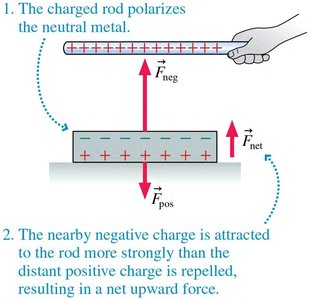

Polarization in Conductors

In conductors, charges shift to the surface, creating a net attractive force toward the external charge.

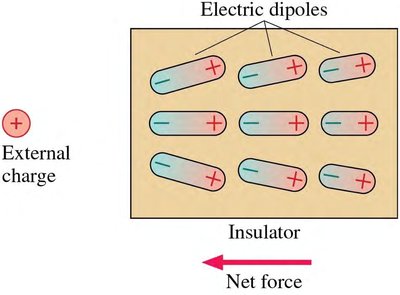

Polarization in Insulators

In insulators, individual atoms become polarized, resulting in a weaker net force toward the external charge.

Charging by Induction

Charging by induction involves bringing a charged object near a conductor, causing charge separation, and then separating the conductors to obtain net charge.

• Steps: Bring charged rod near, separate conductors, remove rod.

• Result: Net charge on each conductor.

Units of Charge

Charge is measured in Coulombs (C). The fundamental charge $e$ is $1.6 \times 10^{-19}$ C. Typical charges encountered are in nanocoulombs (nC) or microcoulombs (μC).

Coulomb’s Law

Coulomb’s law describes the force between two point charges:

• Formula: $F = K \frac{|q_1||q_2|}{r^2}$

• Electrostatic Constant: $K = 8.99 \times 10^9$ N·m2/C2

• Direction: Along the line joining the charges; repulsive for like charges, attractive for opposite charges.

Coulomb’s Law in Terms of Permittivity

The constant $K$ is related to the permittivity of free space $\epsilon_0$:

• Relationship: $K = \frac{1}{4\pi\epsilon_0}$, $\epsilon_0 = 8.85 \times 10^{-12}$ C2/N·m2

• Alternate Formula: $F = \frac{1}{4\pi\epsilon_0} \frac{|q_1||q_2|}{r^2}$

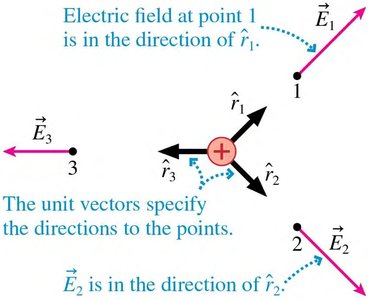

Coulomb’s Law in Vector Form

The force can be written as a vector:

• Formula: $\vec{F} = K \frac{q_1 q_2}{r^2} \hat{r}$

• Unit Vector: $\hat{r} = \frac{\vec{r}}{|r|}$ specifies direction.

Vector Addition in Electrostatics

Electric and magnetic forces are vectors and must be added using vector addition. Components are used to simplify calculations.

• Vector Components: $\vec{A} = A_x \hat{i} + A_y \hat{j}$

• Magnitude: $A = \sqrt{A_x^2 + A_y^2}$

• Direction: $\tan \phi = \frac{A_y}{A_x}$

• Net Force: $\vec{F}_{net} = \vec{F}_1 + \vec{F}_2 + \vec{F}_3$

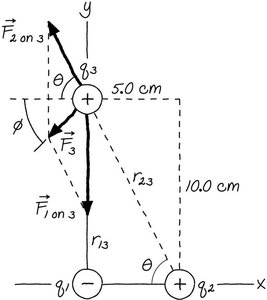

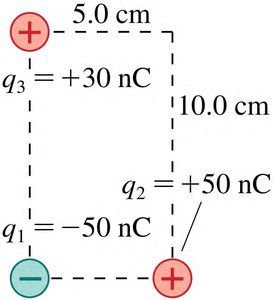

Example: Three Charges

Three point charges are placed at the corners of a rectangle. The net force and electric field at one charge can be calculated using Coulomb’s law and vector addition.

• Force Calculation: $\vec{F}_3 = \vec{F}_{1\ on\ 3} + \vec{F}_{2\ on\ 3}$

• Component Form: $\vec{F}_3 = -4.83 \hat{i} - 3.84 \hat{j} \times 10^{-4}$ N

• Magnitude: $F_3 = 6.2 \times 10^{-4}$ N

• Direction: $\tan \phi = \frac{F_{3y}}{F_{3x}}$

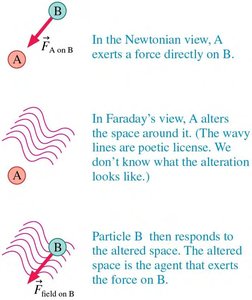

The Field Model

Fields assign a vector to every point in space, representing the influence of charges or masses. The electric field is the alteration of space around a charge.

• Electric Field: $\vec{E} = \frac{\vec{F}}{q}$

• Units: N/C

• Field Strength: Magnitude of $\vec{E}$

The Electric Field of a Point Charge

The electric field at a distance $r$ from a point charge $q$ is:

• Formula: $E = K \frac{q}{r^2}$

• Direction: Away from positive charge, toward negative charge.

• Vector Form: $\vec{E} = K \frac{q}{r^2} \hat{r}$

Example: Electric Field at a Point

To find the electric field at the location of a charge due to other charges, sum the fields from each charge using vector addition.

• Component Form: $E_{at\ 3} = -1.64 \hat{i} - 1.28 \hat{j} \times 10^4$ N/C

Everyday Applications: Water Molecule

Water is a polar molecule with a dipole moment, making it a good solvent and responsible for properties like surface tension and high heat capacity.

• Dipole Moment: $p = 6.17 \times 10^{-30}$ C·m

Summary Table: Properties of Protons and Electrons

Particle	Mass (kg)	Charge	Charge (C)
Proton	1.67 × 10−27	+e	+1.6 × 10−19
Electron	9.11 × 10−31	−e	−1.6 × 10−19

Additional info: Table values inferred and corrected for clarity.
