Fluid Mechanics: Density, Pressure, and Buoyancy

Fluid Mechanics

Introduction to Fluids

Fluids are materials that can flow, encompassing both liquids and gases. Unlike solids, fluids do not have a fixed shape and can adapt to the shape of their container. The study of fluid mechanics begins with fluids at rest (fluid statics) and extends to fluids in motion (fluid dynamics).

Density

Definition and Properties

Density is a fundamental property of matter, defined as mass per unit volume. It is a measure of how much matter is packed into a given space. For a homogeneous material, the density is uniform throughout.

• Formula: $\rho = \frac{m}{V}$, where $\rho$ is density, $m$ is mass, and $V$ is volume.

• SI Unit: kilogram per cubic meter (kg/m3).

• Density varies with temperature and pressure, especially for gases.

Example: Water has a density of approximately 1000 kg/m3, while air at room temperature has a density of about 1.2 kg/m3.

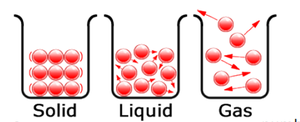

Additional info: The image above illustrates the arrangement of particles in solids, liquids, and gases, explaining why gases have much lower densities than solids and liquids.

Pressure in Fluids

Definition of Pressure

Pressure is defined as the force acting perpendicularly per unit area. It is a scalar quantity, meaning it has magnitude but no direction.

• Formula: $p = \frac{F}{A}$, where $p$ is pressure, $F$ is the perpendicular force, and $A$ is the area.

• SI Unit: Pascal (Pa), where 1 Pa = 1 N/m2.

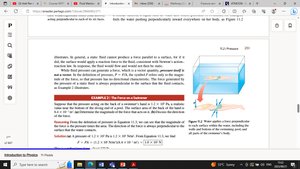

• Pressure increases with depth in a fluid due to the weight of the fluid above.

Pressure and Depth

The pressure at a certain depth in a static fluid is determined by the weight of the fluid above that point. The deeper you go, the greater the pressure.

• Formula: $p = p_0 + \rho g h$, where $p_0$ is the pressure at the surface, $\rho$ is the fluid density, $g$ is the acceleration due to gravity, and $h$ is the depth below the surface.

• This relationship explains why divers experience greater pressure as they descend in water.

Absolute, Gauge, and Atmospheric Pressure

There are different ways to measure pressure:

• Absolute Pressure: The total pressure at a point, including atmospheric pressure.

• Gauge Pressure: The pressure relative to atmospheric pressure (i.e., the difference between the measured pressure and atmospheric pressure).

• Atmospheric Pressure: The pressure exerted by the Earth's atmosphere at sea level, approximately $1.01 \times 10^5$ Pa.

Pressure Gauges

Pressure can be measured using devices such as mercury barometers and open-tube manometers.

• Mercury Barometer: Measures atmospheric pressure by balancing the weight of mercury in a column against atmospheric pressure.

• Open-Tube Manometer: Measures the pressure of a gas in a container relative to atmospheric pressure.

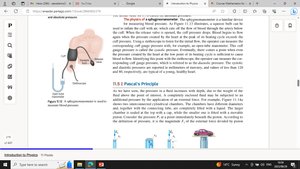

Blood Pressure

Blood pressure is a practical application of gauge pressure, typically measured in millimeters of mercury (mm Hg or torr). It varies with vertical position in the body and is usually referenced at the upper arm, level with the heart.

Pascal’s Principle

Statement and Applications

Pascal’s Principle states that a change in pressure applied to an enclosed fluid is transmitted undiminished to every portion of the fluid and the walls of its container. This principle is the basis for hydraulic systems.

• Formula: $\frac{F_1}{A_1} = \frac{F_2}{A_2}$, where $F_1$ and $F_2$ are forces applied to areas $A_1$ and $A_2$ respectively.

• Hydraulic lifts and brakes operate based on Pascal’s principle.

Archimedes’ Principle

Buoyant Force and Floating

Archimedes’ Principle states that any object wholly or partially submerged in a fluid experiences an upward buoyant force equal to the weight of the fluid displaced by the object.

• Formula for Buoyant Force: $F_b = \rho_{fluid} V_{displaced} g$

• If the buoyant force equals the object's weight, the object floats; if less, it sinks.

Example: A block of wood floats in water because the buoyant force matches its weight, while a rock sinks because its weight exceeds the buoyant force.

Summary Table: Key Properties in Fluid Mechanics

Quantity	Symbol	SI Unit	Formula
Density	$\rho$	kg/m3	$\rho = \frac{m}{V}$
Pressure	$p$	Pa (N/m2)	$p = \frac{F}{A}$
Buoyant Force	$F_b$	N	$F_b = \rho_{fluid} V_{displaced} g$

Additional info: This summary table consolidates the main formulas and units relevant to fluid mechanics, aiding quick revision for exams.
