Mechanical Waves and Standing Waves on Strings

Mechanical Waves

Wave Functions and Parameters

Mechanical waves are disturbances that travel through a medium, transferring energy without transporting matter. The mathematical description of a sinusoidal wave is essential for understanding its behavior and properties.

• Wave Function: The displacement of a point on the medium as a function of position and time is given by the wave function.

• General Form: For a wave propagating in the +x direction, the wave function is: $y(x, t) = A \cos(kx - \omega t)$ where:

  • A = amplitude (maximum displacement)

  • k = wave number ($k = 2\pi/\lambda$)

  • \omega = angular frequency ($\omega = 2\pi f$)

  • \lambda = wavelength

  • f = frequency

Wave Speed

The speed of a wave is determined by the properties of the medium and is related to its wavelength and frequency.

• Wave Speed Equation: $v = \lambda f$

• Transverse Waves on a String: The speed depends on the tension (F) and the mass per unit length (μ) of the string: $v = \sqrt{\frac{F}{\mu}}$

Boundary Conditions and Wave Reflection

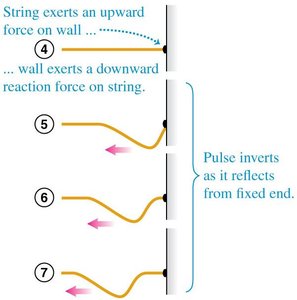

Reflection at a Fixed End

When a wave pulse reaches a fixed end, it is reflected and inverted due to the reaction force exerted by the boundary.

• Pulse Inversion: The reflected pulse is inverted relative to the incident pulse.

• Physical Reason: The fixed end cannot move, so it exerts an equal and opposite force on the string.

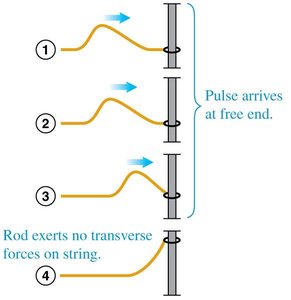

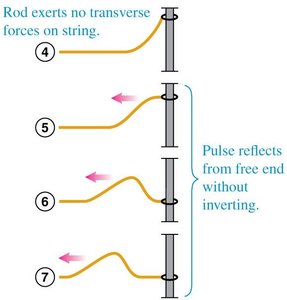

Reflection at a Free End

When a wave pulse reaches a free end, it is reflected without inversion because the end is free to move vertically.

• No Inversion: The reflected pulse maintains the same orientation as the incident pulse.

• Physical Reason: The free end does not exert a restoring force, so the pulse is reflected upright.

Interference and Superposition

Principle of Superposition

When two or more waves overlap in space, the resulting displacement at any point is the algebraic sum of the displacements due to each wave.

• Constructive Interference: Occurs when waves add to produce a larger amplitude.

• Destructive Interference: Occurs when waves add to produce a smaller (or zero) amplitude.

Standing Waves on a String

Formation of Standing Waves

Standing waves are formed by the superposition of two waves of the same frequency and amplitude traveling in opposite directions. This results in a pattern of nodes (points of no motion) and antinodes (points of maximum motion).

• Wave Function for Standing Wave (fixed end at x = 0): $y(x, t) = (A_{sw} \sin kx) \sin \omega t$

• Nodes: Points where the string does not move ($y = 0$ at all times).

• Antinodes: Points where the amplitude is maximum.

Conditions for Nodes and Antinodes

The positions of nodes and antinodes are determined by the wavelength and the boundary conditions of the string.

• Nodes: Occur at positions where $\sin kx = 0$ (i.e., $kx = n\pi$, $n = 0, 1, 2, ...$).

• Antinodes: Occur at positions where $\sin kx = \pm 1$ (i.e., $kx = (n + 1/2)\pi$).

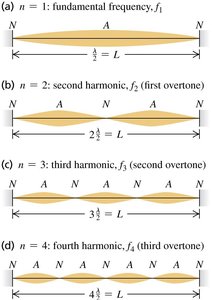

Normal Modes of a String Fixed at Both Ends

When both ends of a string are fixed, only certain wavelengths and frequencies are allowed, corresponding to the normal modes of vibration.

• Allowed Wavelengths: $\lambda_n = \frac{2L}{n}$, where $n = 1, 2, 3, ...$

• Allowed Frequencies: $f_n = \frac{nv}{2L}$

• Fundamental Frequency (First Harmonic): $f_1 = \frac{1}{2L} \sqrt{\frac{F}{\mu}}$

• Higher Harmonics: $f_n = n f_1$

Application: String Instruments

String instruments produce sound by creating standing waves on strings. The frequency of the sound depends on the length, tension, and mass per unit length of the string.

• Increasing Tension: Raises the frequency (and pitch) of the sound produced.

• Changing Length: Shortening the vibrating length increases the frequency.

• Example: The E string of a violin with a fundamental frequency of 659 Hz and a wavelength of 660 mm has a vibrating length $L = 0.33$ m and wave speed $v = 435$ m/s.

Summary Table: Standing Waves on a String Fixed at Both Ends

Harmonic (n)	Wavelength ($\lambda_n$)	Frequency ($f_n$)	Number of Nodes	Number of Antinodes
1 (Fundamental)	$2L$	$\frac{v}{2L}$	2	1
2 (First Overtone)	$L$	$\frac{v}{L}$	3	2
3 (Second Overtone)	$\frac{2L}{3}$	$\frac{3v}{2L}$	4	3
n	$\frac{2L}{n}$	$\frac{nv}{2L}$	n+1	n

Additional info: The above notes include expanded academic context on wave functions, boundary conditions, and the physical meaning of nodes and antinodes, as well as practical applications to musical instruments.
