Newton’s Laws of Motion: Structured Study Notes

Newton’s Laws of Motion

Introduction to Dynamics

Dynamics is the branch of physics that studies the relationship between motion and the forces that cause it. Newton’s laws of motion, formulated by Sir Isaac Newton, provide the foundational principles for understanding how and why objects move.

Properties and Types of Forces

Definition and Nature of Force

A force is a push or a pull, representing an interaction between two objects or between an object and its environment. Forces are vector quantities, meaning they have both magnitude and direction.

• Force as a Vector: The direction and magnitude of a force are crucial in determining its effect on an object.

• Interaction: Forces arise from interactions, such as contact or long-range effects.

Common Types of Forces

• Normal Force (\(\vec{n}\)): The force exerted by a surface perpendicular to the object resting or pushing on it.

• Friction Force (\(\vec{f}\)): The force exerted parallel to the surface, opposing motion.

• Tension: The force transmitted through a string, rope, or cable when it is pulled tight by forces acting from opposite ends.

• Weight (\(\vec{w}\)): The gravitational force exerted by the Earth on an object, acting downward.

Magnitude and Units of Force

The SI unit of force is the newton (N). Typical force magnitudes encountered in everyday situations range from a few newtons to hundreds of newtons.

Force Vectors and Their Representation

Drawing Force Vectors

Force vectors are drawn with arrows, where the length represents the magnitude and the direction shows the line of action. This visual representation helps in analyzing the effects of forces.

Superposition and Vector Addition of Forces

When multiple forces act on a point, their combined effect is equivalent to the vector sum of all individual forces. This principle is known as the superposition of forces.

Decomposing Forces into Components

Forces can be decomposed into perpendicular components, typically along the x- and y-axes. Trigonometric relationships are used to find these components, which simplifies analysis in two or three dimensions.

• \(F_x = F \cos \theta\)

• \(F_y = F \sin \theta\)

Notation for Vector Sum

The vector sum of all forces acting on an object is called the resultant or net force:

• \(\vec{R} = \sum \vec{F}\)

Newton’s First Law of Motion

Statement and Equilibrium

Newton’s first law states that an object at rest or moving with constant velocity remains in that state unless acted upon by a net external force. This condition is known as equilibrium.

• \(\sum \vec{F} = 0\) → Equilibrium

Net Force and Acceleration

If a net force acts on an object, it will accelerate in the direction of the net force. The absence of net force means no acceleration.

Examples of Equilibrium

In practical situations, such as sledding, forces like gravity, normal force, friction, and applied force can balance each other, resulting in constant velocity.

Inertial Frames of Reference

Newton’s first law is valid only in inertial frames of reference, which are frames not accelerating relative to the Earth. Non-inertial frames (e.g., accelerating vehicles) may appear to violate the law due to fictitious forces.

Application: Crash Test Dummies

When a car stops suddenly, crash test dummies continue moving forward due to inertia, illustrating Newton’s first law.

Uniform Circular Motion

An object in uniform circular motion experiences a net force directed toward the center of the circle, causing centripetal acceleration.

Newton’s Second Law of Motion

Force and Acceleration Relationship

Newton’s second law quantifies the relationship between force, mass, and acceleration. The acceleration of an object is directly proportional to the net external force and inversely proportional to its mass:

• \(\sum \vec{F} = m \vec{a}\)

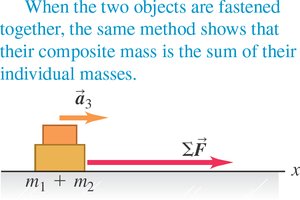

Mass and Acceleration

For a fixed net force, increasing the mass decreases the acceleration, and vice versa.

Systems of Units

Force is measured in newtons (N) in the SI system, pounds (lb) in the British system, and dynes in the cgs system. Mass and distance units also vary by system.

Mass and Weight

Relationship Between Mass and Weight

The weight of an object is the gravitational force exerted by the Earth. It is calculated as:

• \(w = m g\)

Where \(g\) is the acceleration due to gravity, which varies with altitude and planetary body.

Newton’s Third Law of Motion

Action-Reaction Principle

Newton’s third law states that for every action, there is an equal and opposite reaction. If object A exerts a force on object B, then object B exerts an equal and opposite force on object A:

• \(\vec{F}_{A \text{ on } B} = -\vec{F}_{B \text{ on } A}\)

Examples and Applications

Walking, pushing, and pulling all depend on Newton’s third law. The ground pushes back with equal force when you push against it, enabling movement.

Free-Body Diagrams

Purpose and Construction

A free-body diagram is a graphical representation used to visualize all the forces acting on a single object. It is essential for solving problems involving forces and motion.

• Identify the object of interest.

• Draw all external forces acting on the object.

• Label each force clearly.

Summary Table: Types of Forces

Type of Force	Nature	Direction	Example
Normal	Contact	Perpendicular to surface	Box on table
Friction	Contact	Parallel to surface	Sliding box
Tension	Contact	Along string/rope	Hanging weight
Weight	Long-range	Downward (gravity)	Object falling

Additional info: Academic context and examples were expanded for clarity and completeness. All images included are directly relevant to the adjacent explanations.
