Reflection, Refraction, and Wave Properties of Light: Study Notes

Reflection, Refraction, and Wave Properties of Light

Reflection of Light

Reflection is the process by which light bounces back into the original medium after striking a surface. This phenomenon is fundamental to the formation of images in mirrors and is governed by specific physical laws.

• Law of Reflection: The angle of incidence equals the angle of reflection. Both angles are measured from the normal (a line perpendicular to the surface at the point of incidence).

• Types of Reflection:

  • Specular Reflection: Occurs on smooth surfaces, producing clear images (e.g., mirrors).

  • Diffuse Reflection: Occurs on rough surfaces, scattering light in many directions and not forming clear images (e.g., paper, wet roads).

• Virtual Images: Plane mirrors produce virtual images that are the same size and distance from the mirror as the object.

• Curved Mirrors:

  • Convex Mirrors: Produce smaller, closer virtual images.

  • Concave Mirrors: Produce larger, farther virtual images.

Principle of Least Time (Fermat's Principle)

Fermat's Principle states that light travels between two points along the path that requires the least time. This principle explains both reflection and refraction phenomena.

• Application to Reflection: The path taken by reflected light is the one that minimizes travel time, which coincides with the law of reflection.

• Application to Refraction: Light bends at the interface between two media to minimize travel time, leading to the law of refraction.

Specular vs. Diffuse Reflection

The nature of the reflecting surface determines the type of reflection observed.

• Specular Reflection: Occurs on smooth surfaces, where reflected rays remain parallel, producing clear images.

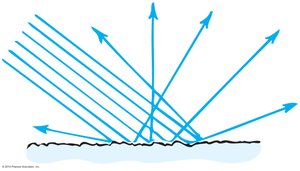

• Diffuse Reflection: Occurs on rough or irregular surfaces, scattering light in many directions and preventing image formation.

• Surface Roughness: The type of reflection depends on the size of surface irregularities relative to the wavelength of light.

Refraction of Light

Refraction is the bending of light as it passes from one transparent medium to another with a different optical density. This bending occurs because light changes speed in different media.

• Law of Refraction (Snell's Law): The relationship between the angles and the indices of refraction of the two media is given by: $n_1 \sin \theta_1 = n_2 \sin \theta_2$

• Index of Refraction (n): Defined as the ratio of the speed of light in vacuum to the speed of light in the medium: $n = \frac{c}{v}$ where $c$ is the speed of light in vacuum and $v$ is the speed in the medium.

• Bending Direction: Light bends toward the normal when entering a medium with a higher refractive index (slower speed), and away from the normal when entering a lower refractive index (faster speed).

Refractive Illusions

Refraction can cause optical illusions, such as objects appearing displaced or closer to the surface in water, and atmospheric refraction shifting the apparent position of celestial objects.

• Example: A fish in water appears closer to the surface than it actually is due to the bending of light at the water-air interface.

• Atmospheric Refraction: The Sun appears slightly above its actual position at sunrise and sunset due to the bending of light in the Earth's atmosphere.

Dispersion and Rainbows

Dispersion is the separation of light into its component colors due to different degrees of refraction for different wavelengths. This phenomenon is responsible for the formation of rainbows.

• Prism Effect: When white light passes through a prism, shorter wavelengths (blue/violet) are bent more than longer wavelengths (red).

• Rainbows: Formed by dispersion, reflection, and refraction of sunlight in water droplets, with each color emerging at a slightly different angle.

Total Internal Reflection

Total internal reflection (TIR) occurs when light attempts to move from a medium with a higher refractive index to one with a lower refractive index at an angle greater than the critical angle, causing all the light to reflect back into the original medium.

• Critical Angle: The minimum angle of incidence for which total internal reflection occurs.

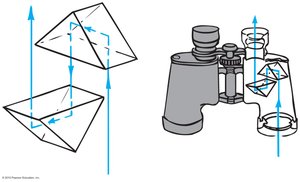

• Applications: Used in optical fibers, prisms in binoculars, and other optical instruments to efficiently guide light.

Diffraction of Light

Diffraction is the bending and spreading of waves when they encounter an obstacle or pass through a narrow opening. The amount of diffraction increases as the size of the opening approaches the wavelength of the light.

• Key Factors: The degree of diffraction depends on the ratio of the wavelength to the size of the opening or obstacle.

• Real-World Examples: Radio waves diffract around buildings, while visible light does not due to its much shorter wavelength.

Huygens' Principle

Huygens' Principle states that every point on a wavefront acts as a source of secondary spherical wavelets. The new wavefront is the envelope of these secondary wavelets. This principle explains reflection, refraction, and diffraction of light.

• Wavefront Construction: The superposition of wavelets forms the advancing wavefront.

• Explains: Reflection, refraction, and diffraction phenomena in terms of wave behavior.

Young’s Double-Slit Experiment

Young’s double-slit experiment demonstrated the wave nature of light by producing an interference pattern of bright and dark fringes on a screen. This pattern results from constructive and destructive interference of light waves passing through two slits.

• Interference: When two waves overlap, their amplitudes add (constructive) or subtract (destructive), creating a pattern of alternating bright and dark bands.

• Significance: Provided strong evidence for the wave theory of light, challenging the particle theory.

• Equation for Fringe Spacing: $d \sin \theta = m \lambda$ where $d$ is the slit separation, $\theta$ is the angle to the m-th bright fringe, $m$ is the order number, and $\lambda$ is the wavelength.

Diffraction Grating

A diffraction grating is an optical device with many parallel slits that separates light into its component wavelengths, producing a spectrum. The resulting pattern is sharper and more detailed than that from a double slit.

• Application: Used in spectrometers to analyze the spectral composition of light.

Summary Table: Reflection, Refraction, and Diffraction

Phenomenon	Description	Key Law/Principle	Example/Application
Reflection	Bouncing of light from a surface	Law of Reflection	Plane mirror, lake reflection
Refraction	Bending of light at a boundary between media	Snell's Law	Prism, straw in water
Dispersion	Separation of light into colors by wavelength	Wavelength-dependent refraction	Rainbow, prism spectrum
Total Internal Reflection	Complete reflection within a medium	Critical Angle	Optical fibers, binoculars
Diffraction	Bending of waves around obstacles/openings	Huygens' Principle	Radio waves around buildings, double-slit experiment

Key Equations

• Law of Reflection: $\theta_i = \theta_r$

• Snell's Law (Refraction): $n_1 \sin \theta_1 = n_2 \sin \theta_2$

• Index of Refraction: $n = \frac{c}{v}$

• Double-Slit Interference: $d \sin \theta = m \lambda$

Additional info: These notes integrate and expand upon the provided lecture content, ensuring a comprehensive and academically rigorous overview suitable for college-level physics students.
