Rotational Motion

Introduction to Rotational Motion

Rotational motion describes the movement of objects around a fixed axis. This topic is fundamental in physics, as it extends the concepts of linear motion to systems that rotate, such as wheels, gears, and planets.

Angular position (\!): The orientation of a line with another reference line, measured in radians (rad).
Angular displacement (\Delta\!): The change in angular position, measured in radians.
Angular velocity (\omega): The rate of change of angular position, measured in rad/s.
Angular acceleration (\alpha): The rate of change of angular velocity, measured in rad/s2.

Equations of Rotational Motion with Constant Angular Acceleration

The equations for rotational motion closely parallel those for linear motion, with angular quantities replacing linear ones.

\( \omega = \omega_0 + \alpha t \)
\( \theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2 \)
\( \omega^2 = \omega_0^2 + 2\alpha (\theta - \theta_0) \)
\( \theta - \theta_0 = \frac{1}{2}(\omega + \omega_0)t \)

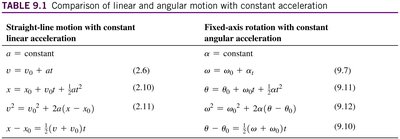

Table comparing linear and angular motion equations

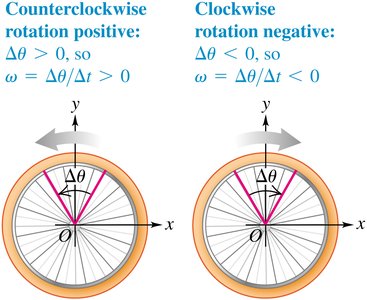

Sign Convention for Angular Velocity

The direction of rotation determines the sign of angular velocity and displacement.

Counterclockwise rotation: \( \Delta\theta > 0 \), \( \omega > 0 \)
Clockwise rotation: \( \Delta\theta < 0 \), \( \omega < 0 \)

Sign convention for angular velocity

Period of Rotational Motion

The period (T) is the time required for one complete revolution.

For one revolution, \( \Delta\theta = 2\pi \) radians.
\( T = \frac{2\pi}{\omega} \)
\( \omega = \frac{2\pi}{T} \)

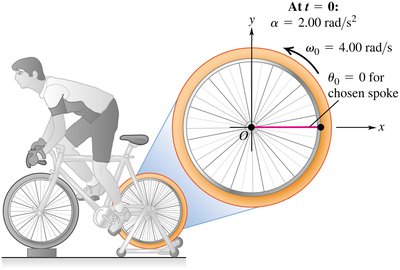

Example: Rotation of a Bicycle Wheel

A stationary exercise bike's rear wheel starts with \( \omega_0 = 4.00 \) rad/s and angular acceleration \( \alpha = 2.00 \) rad/s2. To find the angle a spoke makes with the axis after 3.00 s:

\( \theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2 \)
\( \omega = \omega_0 + \alpha t \)

Bicycle wheel rotation example

Linear and Angular Velocity

Relationship Between Linear and Angular Velocity

For a point at a distance r from the axis of rotation:

\( v = r\omega \)
\( s = r\theta \) (arc length)

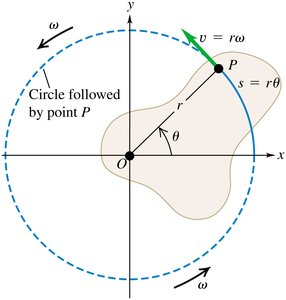

Relation between linear and angular velocity

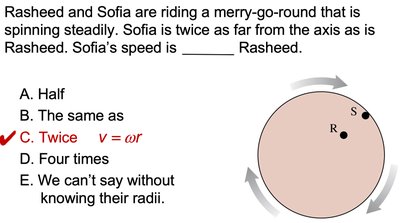

Example: Merry-Go-Round

If Sofia is twice as far from the axis as Rasheed, her speed is twice Rasheed's because \( v = r\omega \). Merry-go-round speed comparison

Linear and Angular Acceleration

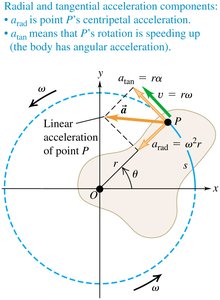

Relationship Between Linear and Angular Acceleration

Tangential acceleration: \( a_{tan} = r\alpha \)
Radial (centripetal) acceleration: \( a_{rad} = \frac{v^2}{r} = r\omega^2 \)
Total acceleration: \( \vec{a} = \sqrt{a_{tan}^2 + a_{rad}^2} \)

Radial and tangential acceleration components

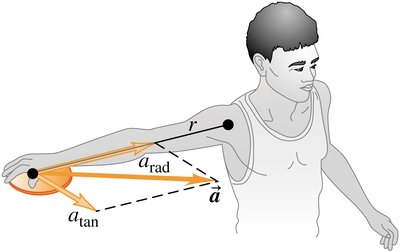

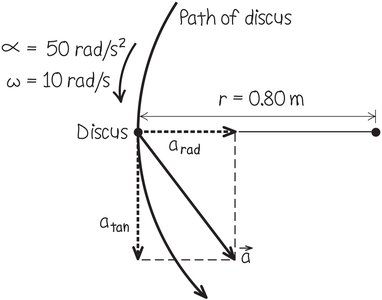

Example: Throwing a Discus

A discus thrower turns with \( \alpha = 50 \) rad/s2 and \( \omega = 10 \) rad/s at a radius of 0.80 m. Find the radial and tangential components of acceleration:

\( a_{tan} = r\alpha = 0.80 \times 50 = 40 \) m/s2
\( a_{rad} = r\omega^2 = 0.80 \times 10^2 = 80 \) m/s2
\( a = \sqrt{a_{tan}^2 + a_{rad}^2} \)

Discus thrower acceleration components

Rotational Motion in Compound Systems

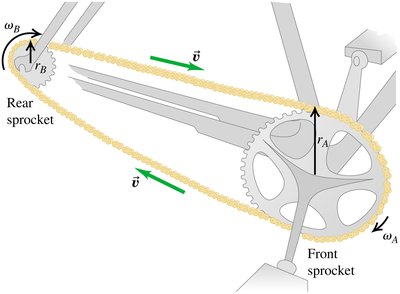

Example: Bicycle Gears

When two sprockets are connected by a chain, their angular speeds are related by the radii (or number of teeth):

\( \omega_A r_A = \omega_B r_B \)
\( \frac{\omega_A}{\omega_B} = \frac{r_B}{r_A} \)

Bicycle gears and angular speed relation

Example: Designing a Propeller

To ensure the propeller tip speed does not exceed a set value:

\( v_{tip} = r\omega \leq 300 \) m/s
Given \( \omega = 2\pi f \), where f is in revolutions per second.
Solve for maximum radius \( r_{max} = \frac{v_{tip}}{\omega} \)

Propeller tip speed and design

Kinetic Energy of Rotation

Rotational Kinetic Energy

A rotating rigid body has kinetic energy due to its motion:

\( K = \frac{1}{2} I \omega^2 \)
Where I is the moment of inertia, and \( \omega \) is the angular velocity.

Rotational kinetic energy formula

Moment of Inertia

Definition and Calculation

The moment of inertia (I) quantifies how mass is distributed relative to the axis of rotation. It depends on both the mass and its distribution.

\( I = \sum m_i r_i^2 \) for discrete masses
\( I = \int r^2 dm \) for continuous bodies

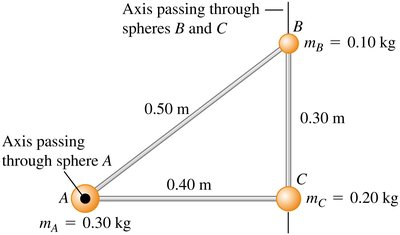

Moment of inertia for point masses

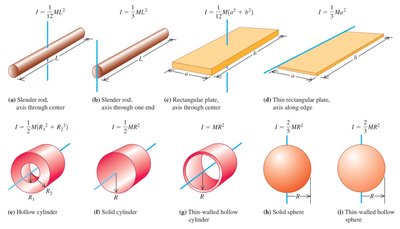

Moment of Inertia for Common Shapes

Shape	Moment of Inertia (I)
Solid sphere	\( \frac{2}{5}MR^2 \)
Solid cylinder	\( \frac{1}{2}MR^2 \)
Thin rod (center)	\( \frac{1}{12}ML^2 \)
Thin rod (end)	\( \frac{1}{3}ML^2 \)

Moments of inertia for various shapes

Example: Comparing Sphere and Cylinder

Given equal mass and radius, a cylinder has a larger moment of inertia than a sphere:

Sphere: \( I = \frac{2}{5}MR^2 \)
Cylinder: \( I = \frac{1}{2}MR^2 \)

Moment of inertia for a sphere Moment of inertia for a cylinder

Summary Table: Linear vs. Angular Motion

Straight-line motion with constant linear acceleration	Fixed-axis rotation with constant angular acceleration
\( a = \text{constant} \)	\( \alpha = \text{constant} \)
\( v = v_0 + at \)	\( \omega = \omega_0 + \alpha t \)
\( x = x_0 + v_0 t + \frac{1}{2} a t^2 \)	\( \theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2 \)
\( v^2 = v_0^2 + 2a(x - x_0) \)	\( \omega^2 = \omega_0^2 + 2\alpha (\theta - \theta_0) \)
\( x - x_0 = \frac{1}{2}(v + v_0)t \)	\( \theta - \theta_0 = \frac{1}{2}(\omega + \omega_0)t \)
