Rotational Motion: Concepts, Equations, and Applications

Rotational Motion

Angular Position, Displacement, Velocity, and Acceleration

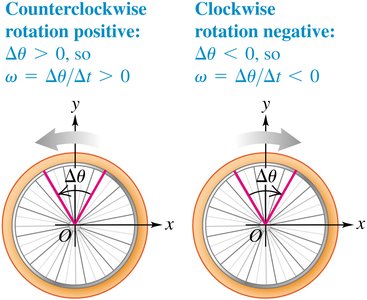

Rotational motion describes the movement of objects around a fixed axis. The fundamental quantities are angular position, angular displacement, angular velocity, and angular acceleration. - Angular position (\theta): The orientation of a line with respect to a reference axis, measured in radians. - Angular displacement (\Delta\theta): The change in angular position. 1 revolution = 360° = $2\pi$ radians. - Angular velocity (\omega): The rate of change of angular position, $\omega = \frac{\Delta\theta}{\Delta t}$ (unit: rad/s). - Angular acceleration (\alpha): The rate of change of angular velocity, $\alpha = \frac{\Delta\omega}{\Delta t}$ (unit: rad/s2).

Equations of Rotational Motion with Constant Angular Acceleration

For constant angular acceleration, the following equations are analogous to linear kinematics:

• $\omega = \omega_0 + \alpha t$

• $\theta = \theta_0 + \omega_0 t + \frac{1}{2}\alpha t^2$

• $\omega^2 = \omega_0^2 + 2\alpha (\theta - \theta_0)$

• $\theta - \theta_0 = \frac{1}{2}(\omega_0 + \omega)t$

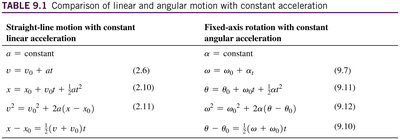

Straight-line motion with constant linear acceleration	Fixed-axis rotation with constant angular acceleration
$a = \text{constant}$	$\alpha = \text{constant}$
$v = v_0 + at$	$\omega = \omega_0 + \alpha t$
$x = x_0 + v_0 t + \frac{1}{2} a t^2$	$\theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2$
$v^2 = v_0^2 + 2a(x - x_0)$	$\omega^2 = \omega_0^2 + 2\alpha(\theta - \theta_0)$
$x - x_0 = \frac{1}{2}(v_0 + v)t$	$\theta - \theta_0 = \frac{1}{2}(\omega_0 + \omega)t$

Period of Rotational Motion

The period ($T$) is the time for one complete revolution. For constant angular velocity: - $\Delta\theta_{\text{rev}} = 2\pi$ radians - $T = \frac{2\pi}{\omega}$ - $\omega = \frac{2\pi}{T}$

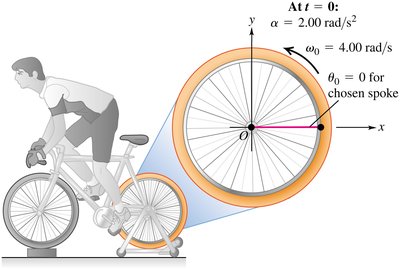

Example: Rotation of a Bicycle Wheel

Consider a bicycle wheel with initial angular velocity $\omega_0 = 4.00$ rad/s and angular acceleration $\alpha = 2.00$ rad/s2. To find the angle and angular velocity at $t = 3.00$ s: - $\theta = \theta_0 + \omega_0 t + \frac{1}{2}\alpha t^2$ - $\omega = \omega_0 + \alpha t$

Linear and Angular Velocity

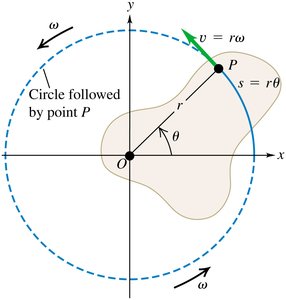

Relation Between Linear and Angular Velocity

For a point at distance $r$ from the axis of rotation: - Linear velocity: $v = r\omega$ - Angular velocity: $\omega$ (rad/s)

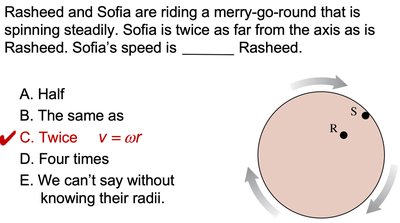

Example: Merry-Go-Round

If Sofia is twice as far from the axis as Rasheed, her speed is twice Rasheed's speed, since $v = r\omega$.

Linear and Angular Acceleration

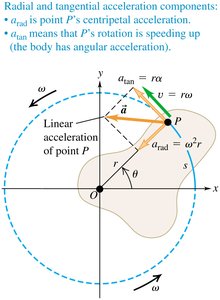

Relation Between Linear and Angular Acceleration

- Tangential acceleration: $a_{\text{tan}} = r\alpha$ - Radial (centripetal) acceleration: $a_{\text{rad}} = \frac{v^2}{r} = r\omega^2$ - Total acceleration: $\vec{a} = a_{\text{tan}} + a_{\text{rad}}$

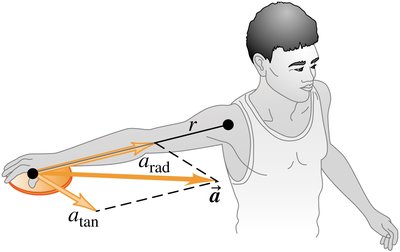

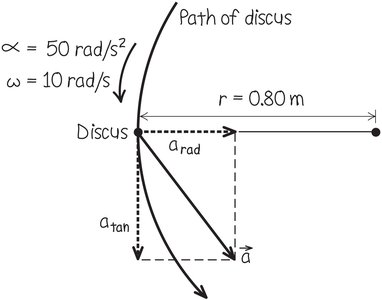

Example: Throwing a Discus

For a discus with $\alpha = 50$ rad/s2, $\omega = 10$ rad/s, and $r = 0.80$ m: - $a_{\text{tan}} = r\alpha = 0.80 \times 50 = 40$ m/s2 - $a_{\text{rad}} = r\omega^2 = 0.80 \times 100 = 80$ m/s2 - $a = \sqrt{a_{\text{tan}}^2 + a_{\text{rad}}^2}$

Rotational Motion in Systems

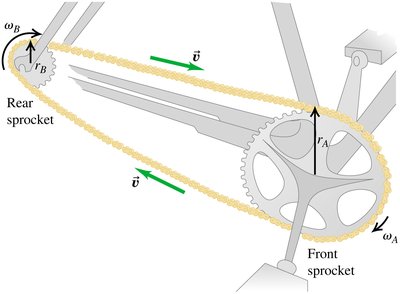

Bicycle Gears

When two sprockets are connected by a chain, their angular speeds are related to their radii and number of teeth: - $\omega_A r_A = \omega_B r_B$ - If the number of teeth is $N_A$ and $N_B$, then $\omega_A N_A = \omega_B N_B$

Example: Propeller Design

To limit the tip speed of a propeller, use $v_{\text{tip}} = r\omega$. For a maximum tip speed and given angular velocity, solve for $r$: - $r = \frac{v_{\text{tip}}}{\omega}$

Kinetic Energy of Rotation

Rotational Kinetic Energy

The kinetic energy of a rotating rigid body is: - $K = \frac{1}{2} I \omega^2$ where $I$ is the moment of inertia. For discrete masses: $K = \frac{1}{2} m_A r_A^2 \omega^2 + \frac{1}{2} m_B r_B^2 \omega^2 + \cdots$

Moment of Inertia

Definition and Calculation

The moment of inertia ($I$) quantifies how mass is distributed relative to the axis of rotation. - $I = \sum m_i r_i^2$ for point masses - $I = \int r^2 dm$ for continuous bodies

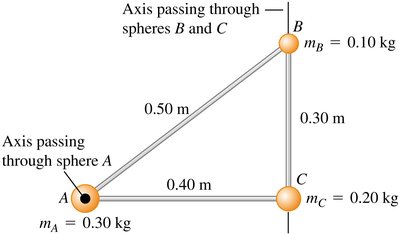

Example: Rotational Kinetic Energy of a Sculpture

For three point masses connected by rods, calculate $I$ for different axes and use $K = \frac{1}{2} I \omega^2$.

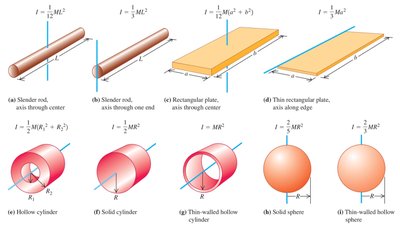

Moment of Inertia for Common Shapes

Shape	Moment of Inertia
Solid sphere	$I = \frac{2}{5}MR^2$
Solid cylinder	$I = \frac{1}{2}MR^2$
Thin rod (center)	$I = \frac{1}{12}ML^2$
Thin rod (end)	$I = \frac{1}{3}ML^2$
Rectangular plate (center)	$I = \frac{1}{12}M(a^2 + b^2)$

Example: Sphere vs Cylinder

For a sphere and cylinder of mass $m$ and radius $R$: - Sphere: $I = \frac{2}{5}mR^2$ - Cylinder: $I = \frac{1}{2}mR^2$ The cylinder has a larger moment of inertia for the same mass and radius.

Summary Table: Linear vs Angular Motion

Linear Motion	Angular Motion
Displacement: $x$	Angular displacement: $\theta$
Velocity: $v$	Angular velocity: $\omega$
Acceleration: $a$	Angular acceleration: $\alpha$
Kinetic energy: $K = \frac{1}{2}mv^2$	Rotational kinetic energy: $K = \frac{1}{2}I\omega^2$

Key Concepts and Applications

- Rotational motion is governed by angular quantities analogous to linear motion. - The moment of inertia depends on mass distribution and axis of rotation. - Rotational kinetic energy is proportional to both moment of inertia and angular velocity squared. - Real-world applications include bicycle gears, propeller design, and sports (e.g., discus throwing). Additional info: Academic context and formulas were expanded for completeness and clarity.
