Rotational Motion: Concepts, Equations, and Applications

Rotational Motion

Introduction to Rotational Motion

Rotational motion describes the movement of objects around a fixed axis. This topic is fundamental in physics as it extends the concepts of linear motion to rotational analogs, introducing new quantities such as angular displacement, angular velocity, and angular acceleration.

Angular Position, Displacement, Velocity, and Acceleration

• Angular Position (\(\theta\)): The orientation of a line with another reference line, measured in radians (rad).

• Angular Displacement (\(\Delta \theta\)): The change in angular position, measured in radians.

• Angular Velocity (\(\omega\)): The rate of change of angular position with respect to time. $\omega = \frac{d\theta}{dt}$ (unit: rad/s)

• Angular Acceleration (\(\alpha\)): The rate of change of angular velocity with respect to time. $\alpha = \frac{d\omega}{dt}$ (unit: rad/s2)

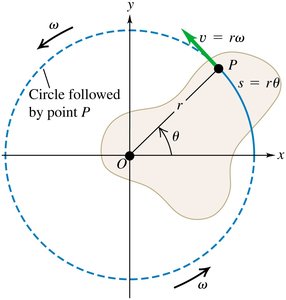

• Relationship between Linear and Angular Quantities: For a point at a distance \(r\) from the axis, linear velocity \(v = r\omega\) and linear acceleration \(a = r\alpha\).

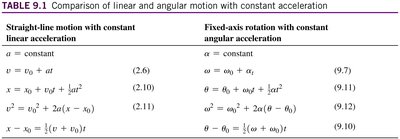

Equations of Rotational Motion with Constant Angular Acceleration

These equations are analogous to those for linear motion with constant acceleration:

Straight-line motion with constant linear acceleration	Fixed-axis rotation with constant angular acceleration
$a = \text{constant}$	$\alpha = \text{constant}$
$v = v_0 + at$	$\omega = \omega_0 + \alpha t$
$x = x_0 + v_0 t + \frac{1}{2} a t^2$	$\theta = \theta_0 + \omega_0 t + \frac{1}{2} \alpha t^2$
$v^2 = v_0^2 + 2a(x - x_0)$	$\omega^2 = \omega_0^2 + 2\alpha (\theta - \theta_0)$
$x - x_0 = \frac{1}{2}(v_0 + v)t$	$\theta - \theta_0 = \frac{1}{2}(\omega_0 + \omega)t$

Moment of Inertia

The moment of inertia (\(I\)) quantifies how mass is distributed relative to the axis of rotation and determines the resistance of an object to changes in its rotational motion. It is the rotational analog of mass in linear motion.

• Definition: $I = \sum m_i r_i^2$ for discrete masses, or $I = \int r^2 dm$ for continuous bodies.

• Units: kg·m2

• Dependence: The value of \(I\) depends on both the mass and its distribution relative to the axis of rotation.

Kinetic Energy of Rotation

The kinetic energy of a rotating rigid body is given by:

• Rotational Kinetic Energy: $K = \frac{1}{2} I \omega^2$

• Total Kinetic Energy (for moving and rotating objects): $K_{\text{total}} = \frac{1}{2} M v_{\text{CM}}^2 + \frac{1}{2} I_{\text{CM}} \omega^2$

Work-Energy Theorem for Rotation

The work done by torques on a rotating object results in a change in its rotational kinetic energy, analogous to the work-energy theorem for linear motion.

• Work-Energy Theorem (Rotational): $W = \Delta K = \frac{1}{2} I \omega^2 - \frac{1}{2} I \omega_0^2$

Rotation About a Moving Axis

When the axis of rotation itself moves, the motion of a rigid body can be described as a combination of translation of the center of mass and rotation about the center of mass.

• Total Kinetic Energy: $K_{\text{total}} = \frac{1}{2} M v_{\text{CM}}^2 + \frac{1}{2} I_{\text{CM}} \omega^2$

• This decomposition is essential for analyzing rolling motion and other complex rigid-body dynamics.

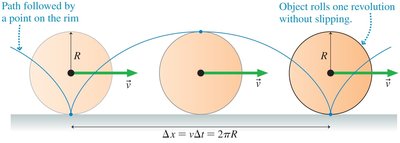

Rolling Motion Without Slipping

Rolling motion occurs when an object rotates as it moves along a surface, with the condition that the point of contact does not slip. This leads to a relationship between translational and rotational motion:

• Condition for Rolling Without Slipping: $v_{\text{CM}} = \omega R$

• Distance Traveled in One Revolution: $\Delta x = 2\pi R$

Examples and Applications

Example 1: Work-Energy Theorem for Rotation (Winch Drum)

A cable is wrapped around a winch drum (solid cylinder, mass 50 kg, diameter 0.12 m). A force of 9.0 N is applied for 2.0 m. Find the final angular velocity and speed of the cable.

• Moment of Inertia for Solid Cylinder: $I = \frac{1}{2} M R^2$

• Work Done: $W = F \cdot d$

• Apply Work-Energy Theorem: $W = \frac{1}{2} I \omega^2$ (since initial \(\omega_0 = 0\))

Example 2: Rolling Down an Incline

Calculate the velocity of various objects (solid cylinder, hollow cylinder, sphere, etc.) when they reach the bottom of a slope, assuming they roll without slipping.

• Energy Conservation: $mgh = \frac{1}{2} M v_{\text{CM}}^2 + \frac{1}{2} I \omega^2$

• For rolling without slipping: $v_{\text{CM}} = \omega R$

• Objects with smaller moment of inertia reach the bottom first.

Example 3: Yo-Yo Dropping Down

A yo-yo (solid disk, mass \(M\), radius \(R\)) is released from rest and unwinds as it drops a distance \(h\). Find the speed of the center of mass after dropping.

• Apply Energy Conservation: $Mgh = \frac{1}{2} M v_{\text{CM}}^2 + \frac{1}{2} I \omega^2$

• For a solid disk: $I = \frac{1}{2} M R^2$

• Relate $v_{\text{CM}}$ and $\omega$: $v_{\text{CM}} = \omega R$

Quick Check: Solid vs Hollow Cylinder

When a solid cylinder and a hollow cylinder of equal mass and radius roll down an incline, the solid cylinder reaches the bottom first. This is because the solid cylinder has a smaller moment of inertia, so more of its potential energy is converted into translational kinetic energy.

• Solid Cylinder: $I = \frac{1}{2} M R^2$

• Hollow Cylinder: $I = M R^2$

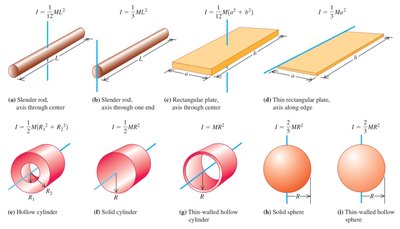

Summary Table: Moments of Inertia for Common Shapes

Shape	Moment of Inertia (I)
Solid Cylinder	$\frac{1}{2} M R^2$
Hollow Cylinder	$M R^2$
Solid Sphere	$\frac{2}{5} M R^2$
Thin Spherical Shell	$\frac{2}{3} M R^2$

Additional info: The above notes include expanded academic context and examples to ensure completeness and clarity for exam preparation.
