Study Notes: Newton's Laws of Motion and Types of Forces

Newton's Laws of Motion

Introduction to Forces

Forces are fundamental to understanding motion and interactions in physics. A force is a push or pull resulting from the interaction between two objects. Forces are vector quantities, meaning they have both magnitude and direction.

• Definition: A force is an interaction that changes the motion of an object.

• Units: The SI unit of force is the Newton (N).

• Types of Forces: Contact forces (e.g., friction, tension) and non-contact forces (e.g., gravity).

Common Forces in Physics

Several types of forces frequently appear in physics problems. Understanding their characteristics is essential for solving motion and equilibrium questions.

• Normal Force: The support force exerted by a surface perpendicular to the object.

• Friction Force: The force that opposes motion between two surfaces in contact.

• Tension Force: The force transmitted through a string, rope, or cable when it is pulled tight.

• Weight: The force due to gravity acting on an object's mass. $F_w = mg$

Friction Forces

Friction is a resistive force that acts opposite to the direction of motion. It is classified as static or kinetic friction.

• Static Friction: Prevents motion between two surfaces. $f_s \leq \mu_s N$

• Kinetic Friction: Acts when surfaces are sliding. $f_k = \mu_k N$

• Coefficients: $\mu_s$ (static) and $\mu_k$ (kinetic) are dimensionless constants.

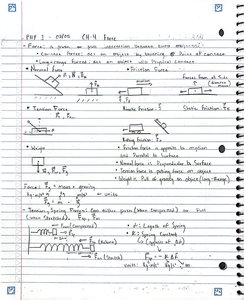

Example: A block on an inclined plane experiences both normal and friction forces.

Force Diagrams and Equilibrium

Force diagrams (free-body diagrams) are essential tools for visualizing all forces acting on an object. In equilibrium, the sum of all forces is zero.

• Equilibrium Condition: $\sum \vec{F} = 0$

• Resolving Forces: Forces can be resolved into components along axes (e.g., x and y directions).

Types of Forces

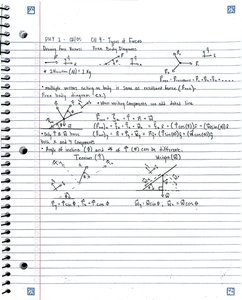

Drawing Force Vectors

Force vectors are drawn from the point of application, showing both direction and magnitude. Multiple forces acting on a body can be combined using vector addition.

• Vector Addition: $\vec{F}_{\text{net}} = \vec{F}_1 + \vec{F}_2 + \ldots$

• Components: $F_x = F \cos \theta$, $F_y = F \sin \theta$

Specific Forces

Several forces are commonly encountered in physics problems:

• Tension: Acts along the length of a rope or cable.

• Weight: Always acts vertically downward.

• Normal Force: Acts perpendicular to the surface.

• Friction: Acts parallel to the surface, opposing motion.

Inclined Plane Analysis

When analyzing forces on an inclined plane, it is important to resolve the weight into components parallel and perpendicular to the surface.

• Parallel Component: $F_{w,\parallel} = mg \sin \theta$

• Perpendicular Component: $F_{w,\perp} = mg \cos \theta$

• Normal Force: $N = mg \cos \theta$

• Friction Force: $f = \mu N$

Example: Calculating the net force on a block sliding down an inclined plane.

Summary Table: Types of Forces

Force Type	Direction	Formula	Example
Weight	Downward (toward Earth)	$F_w = mg$	Object falling
Normal	Perpendicular to surface	$N = mg \cos \theta$	Block on table
Friction	Parallel to surface, opposes motion	$f_k = \mu_k N$	Sliding block
Tension	Along rope/cable	Depends on system	Hanging mass

Additional info: These notes cover the essential concepts of forces and their applications in Newtonian mechanics, focusing on equilibrium, friction, and inclined plane analysis.
