Chapter 5: Chemical Bonding I – Lewis Structures, Molecular Shapes, and Bond Properties

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

Chemical Bonding I: Lewis Structures and Molecular Shapes

Introduction to Chemical Bonding

Chemical bonding is fundamental to understanding how atoms combine to form molecules and compounds. The shape and structure of molecules influence their physical and chemical properties, including reactivity, polarity, and biological activity.

Bonding Theories and Molecular Structure

Lewis Dot Model and Lewis Structural Model

The Lewis dot model is a simple representation of atoms and their valence electrons. It helps predict how atoms bond and the resulting molecular shapes. The Lewis structural model expands on this by showing bonds and lone pairs explicitly.

Valence Shell Electron Pair Repulsion (VSEPR) Theory: Predicts the 3D shape of molecules based on repulsion between electron groups.
Bonding Theories: Explain why certain combinations of atoms are stable and others are not.
Applications: Used to predict molecular shapes, chemical properties, and physical properties.

Example: Lewis Dot Diagram for HF

Hydrogen fluoride (HF) is a diatomic molecule, meaning it consists of two atoms. The Lewis dot diagram shows the shared pair of electrons between H and F.

Lewis Dot Diagram for HF

Electronegativity and Bond Polarity

Definition and Trends

Electronegativity is the ability of an atom to attract bonding electrons to itself. It increases across a period (left to right) and decreases down a group (top to bottom) in the periodic table. Fluorine is the most electronegative element, while francium is the least.

Periodic Table showing Electronegativity Trends

Bond Polarity and Electronegativity Difference

The difference in electronegativity between two bonded atoms determines the bond type:

Pure Covalent (Nonpolar): Electrons are shared equally (ΔEN = 0).
Polar Covalent: Electrons are shared unequally (ΔEN = 0.1–1.9).
Ionic: Electrons are transferred (ΔEN ≥ 2.0).

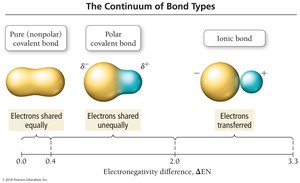

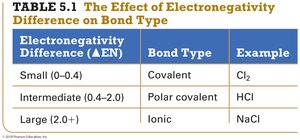

Table: Effect of Electronegativity Difference on Bond Type Continuum of Bond Types

Bond Dipole Moments

A dipole moment (μ) measures bond polarity and is calculated as:

where q is the magnitude of the partial charges and r is the distance between them. Dipole moments are measured in Debyes (D).

Table: Dipole Moments of Several Molecules

Writing Lewis Structures for Molecular Compounds

Steps for Drawing Lewis Structures

Lewis structures are drawn by following these steps:

Write the correct skeletal structure: The less electronegative atom is usually the central atom; hydrogen is always terminal.
Calculate the total number of valence electrons: Sum the valence electrons from each atom and account for any charges.
Distribute electrons: Place bonding pairs first, then lone pairs to complete octets (or duets for hydrogen).
Form double or triple bonds: If any atom lacks an octet, create multiple bonds as needed.
Check: Ensure the total number of electrons matches the calculated sum.

Example: Lewis Structure for CO2

Step 1: Carbon is the central atom. Step 2: Calculate total valence electrons.

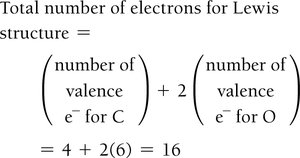

Calculation of Valence Electrons for CO2

Step 3: Distribute electrons and form double bonds to satisfy octets.

Lewis Structure for CO2

Example: Lewis Structure for NH3

Step 1: Nitrogen is the central atom. Step 2: Calculate total valence electrons.

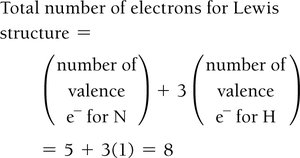

Calculation of Valence Electrons for NH3

Step 3: Distribute electrons; all atoms have octets or duets.

Lewis Structure for NH3

Resonance and Formal Charge

Resonance Structures

Resonance occurs when two or more valid Lewis structures can be drawn for the same compound, differing only in electron positions. The most stable resonance contributor has the maximum number of atoms with full octets and minimal charge separation.

Resonance Structures Example

Formal Charge

Formal charge is an electron bookkeeping system used to evaluate alternative Lewis structures. The formula is:

Structures with fewer and smaller formal charges are preferred, and negative formal charges should reside on the more electronegative atom.

Formal Charge Calculation Example

Exceptions to the Octet Rule

Odd-Electron Species, Incomplete Octets, and Expanded Octets

Odd-electron species: Molecules with an odd number of electrons (free radicals).
Incomplete octets: Atoms like hydrogen and boron may have fewer than eight electrons.
Expanded octets: Atoms in the third period or below can have more than eight electrons when they are the central atom.

Bond Energies and Bond Lengths

Bond Energies

The bond energy is the energy required to break one mole of a bond in the gaseous state. In general, the more electrons two atoms share, the stronger and shorter the bond.

Table: Average Bond Energies

Bond Lengths

Bond length is the distance between the nuclei of bonded atoms. It decreases as the number of shared electrons increases and varies with atomic size.

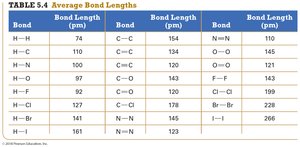

Table: Average Bond Lengths

VSEPR Theory and Molecular Geometry

VSEPR Theory

VSEPR theory states that electron groups around a central atom will be most stable when they are as far apart as possible, determining the geometric arrangement and bond angles.

VSEPR Theory: Electron Groups and Repulsions

Electron Group Arrangements

Linear: 2 electron groups, bond angle 180°
Trigonal planar: 3 electron groups, bond angle 120°
Tetrahedral: 4 electron groups, bond angle 109.5°
Trigonal bipyramidal: 5 electron groups, bond angles 90° and 120°
Octahedral: 6 electron groups, bond angle 90°

Linear Geometry Example Linear Geometry Example (CO2) Trigonal Planar Geometry Example Tetrahedral Geometry Example (CH4) Trigonal Bipyramidal Geometry Example (PCl5) Octahedral Geometry Example (SF6)

Effect of Lone Pairs on Molecular Structure

Lone pairs occupy more space on the central atom than bonding pairs, causing bond angles to decrease. The repulsive force interactions are ranked as:

Lone pair–Lone pair > Lone pair–Bonding pair > Bonding pair–Bonding pair

Bonding Electron Pair vs Lone Pair

Molecular Shape and Polarity

Polarity and Dipole Moments

A molecule is polar if it contains polar bonds (due to electronegativity differences) and has an unsymmetrical shape so that dipole moments do not cancel out. Polarity affects intermolecular forces, boiling points, and solubility.

Examples of Molecular Polarity

HCl: Polar molecule due to bond dipole moment.
CO2: Nonpolar molecule; dipole moments cancel due to linear geometry.
H2O: Polar molecule; dipole moments do not cancel due to bent geometry.

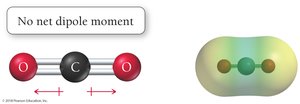

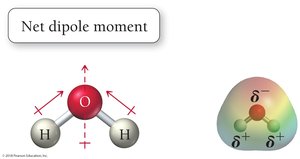

Net Dipole Moment in HCl No Net Dipole Moment in CO2 Net Dipole Moment in H2O

Summary Table: Electronegativity Difference and Bond Type

Electronegativity Difference (ΔEN)	Bond Type	Example
Small (0–0.4)	Covalent	Cl2
Intermediate (0.4–2.0)	Polar covalent	HCl
Large (2.0+)	Ionic	NaCl

Summary Table: Dipole Moments of Molecules

Molecule	ΔEN	Dipole Moment (D)
Cl2	0	0
ClF	1.0	0.88
HF	1.9	1.82
LiF	3.0	6.33

Summary Table: Average Bond Energies

Bond	Bond Energy (kJ/mol)
H–H	436
C–C	347
C≡C	837
H–O	464
H–Cl	431
Br–Br	193
N≡N	946

Summary Table: Average Bond Lengths

Bond	Bond Length (pm)
H–H	74
C–C	154
C≡C	120
H–O	97
H–Cl	127
Br–Br	228
N≡N	110

Additional info: These notes cover the essential concepts of chemical bonding, Lewis structures, molecular geometry, bond energies, and polarity, as outlined in Chapter 5 of a general chemistry course.
