Chemical Equilibrium: Concepts, Calculations, and Applications

Chemical Equilibrium

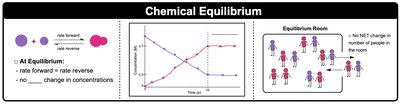

Introduction to Chemical Equilibrium

Chemical equilibrium is a fundamental concept in chemistry describing the state in which the rates of the forward and reverse reactions are equal, resulting in no net change in the concentrations of reactants and products. This dynamic process is central to understanding how reactions behave under various conditions.

• Dynamic Process: At equilibrium, reactions continue in both directions, but the overall concentrations remain constant.

• Reversible Reactions: These reactions are indicated by a double arrow (⇌) and can proceed in both directions.

• Homogeneous Equilibrium: All reactants and products are in the same phase.

• Heterogeneous Equilibrium: Reactants and products are in different phases.

• Example: When equilibrium is reached, reactants form products as fast as products form reactants.

Equilibrium Constant (K)

Definition and Expression

The equilibrium constant (K) quantifies the ratio of product to reactant concentrations at equilibrium. It is a central parameter for predicting the direction and extent of chemical reactions.

• K: Indicates the favored direction of a reaction at equilibrium.

• k: Refers to the rate constant, which deals with the speed of the reaction.

• Equilibrium Constant Expression: For a general reaction: aA + bB ⇌ cC + dD, the equilibrium constant is given by:

$K = \frac{[C]^c [D]^d}{[A]^a [B]^b}$

• Temperature Dependence: The value of K changes with temperature.

• Exclusion of Solids and Pure Liquids: Solids and pure liquids are omitted from K expressions because their concentrations do not change.

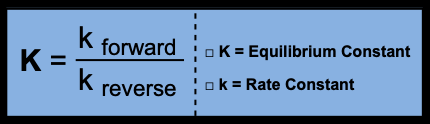

Relationship Between K and Rate Constants

The equilibrium constant can also be expressed in terms of the rate constants for the forward and reverse reactions:

$K = \frac{k_{\text{forward}}}{k_{\text{reverse}}}$

• K: Equilibrium constant

• k: Rate constant

Magnitude of Equilibrium Constant

Interpretation of K Values

The magnitude of K indicates the position of equilibrium:

• K > 1: Products and forward reaction are favored.

• K < 1: Reactants and reverse reaction are favored.

• K = 1: Neither direction is favored; significant amounts of both reactants and products are present.

Kp and Kc: Equilibrium Constants for Gases and Solutions

Relationship and Calculation

Equilibrium constants can be expressed in terms of partial pressures (Kp) for gases or concentrations (Kc) for solutions. The relationship between Kp and Kc is given by:

$K_p = K_c (RT)^{\Delta n}$

• Kp: Used for gaseous reactions (units: atm)

• Kc: Used for reactions in solution (units: mol/L)

• Δn: Change in moles of gas, calculated as $\Delta n = n_{\text{products}} - n_{\text{reactants}}$

Manipulating Equilibrium Constants

Effect of Reaction Rearrangement

The equilibrium constant changes when the chemical equation is manipulated:

• Multiplication: If the equation is multiplied by n, $K_{\text{new}} = K^n$

• Reverse: If the equation is reversed, $K_{\text{new}} = \frac{1}{K}$

• Division: If the equation is divided by n, $K_{\text{new}} = K^{1/n}$

Le Chatelier’s Principle

Response to Disturbances

Le Chatelier’s Principle states that if a system at equilibrium is disturbed, it will shift in a direction that minimizes the disturbance and re-establishes equilibrium. Common disturbances include changes in concentration, pressure, and temperature.

• Adding/Removing Reactants or Products: The system shifts to counteract the change.

• Changing Pressure: For gaseous reactions, increasing pressure favors the side with fewer moles of gas.

• Adding a Catalyst: Does not shift equilibrium, only speeds up attainment of equilibrium.

Temperature Changes

Changing the temperature affects the equilibrium position depending on the reaction’s enthalpy:

• Exothermic Reaction: Increasing temperature shifts equilibrium to the left (reactants).

• Endothermic Reaction: Increasing temperature shifts equilibrium to the right (products).

ICE Charts (Initial, Change, Equilibrium)

Calculating Equilibrium Amounts

ICE charts are used to organize and solve equilibrium problems, especially when some equilibrium concentrations are unknown. The chart tracks the initial concentrations, changes during the reaction, and final equilibrium concentrations.

• Units: Use atm for Kp and mol/L for Kc.

• Shortcuts: When both numerator and denominator are squared, use the root method. If the ratio of K to initial concentration is very small, use the approximation method.

• Quadratic Formula: Used when the equilibrium expression leads to a quadratic equation.

Reaction Quotient (Q)

Comparing Q to K

The reaction quotient (Q) is calculated the same way as K but uses concentrations at any point in time, not necessarily at equilibrium. Comparing Q to K predicts the direction the reaction will shift:

• Q < K: Reaction shifts right (towards products).

• Q > K: Reaction shifts left (towards reactants).

• Q = K: System is at equilibrium; no shift occurs.

Example: For the reaction N2 (g) + 3 H2 (g) ⇌ 2 NH3 (g), if Q < K, more NH3 will form until equilibrium is reached.

Summary Table: Disturbances and Equilibrium Shifts

Disturbance	Shift Direction	Explanation
Add reactant	Right	System forms more product to reduce added reactant.
Remove product	Right	System forms more product to replace what was removed.
Increase pressure (gases)	Side with fewer moles of gas	Reduces pressure by favoring fewer gas molecules.
Increase temperature (exothermic)	Left	System absorbs added heat by favoring reactants.
Increase temperature (endothermic)	Right	System absorbs heat by favoring products.
Add catalyst	No shift	Speeds up attainment of equilibrium, does not affect position.

Additional info: These notes provide a comprehensive overview of chemical equilibrium, including key concepts, formulas, and practical calculation methods, suitable for college-level general chemistry students.
