Essentials: Units, Measurement, and Problem Solving – Mini-Textbook Study Notes

Essentials: Units, Measurement, and Problem Solving

Measurement Types: Qualitative and Quantitative

Measurements in chemistry are fundamental for describing and analyzing substances and reactions. They are categorized as qualitative or quantitative:

• Qualitative observations: Descriptive, noting changes in color, physical state, or other properties without numerical values.

• Quantitative observations: Numerical measurements obtained from instruments or glassware, with varying precision and accuracy.

• Counted values: Exact numbers, such as the number of objects (e.g., cats per household).

• The type of measurement determines the statistical methods used in data analysis.

What Are Measurements?

All measurements consist of two essential parts:

• Number: Indicates the precision of the instrument used (e.g., 25.0 cm, 1.00 ft).

• Unit: Specifies the scale (e.g., meters, kilograms), often from the International System of Units (SI) or the English system.

Standard Units of Measure (SI)

The SI system is the standard for scientific measurements:

• Length: meter (m)

• Mass: kilogram (kg)

• Time: second (s)

• Temperature: kelvin (K)

• Amount of substance: mole (mol)

• Electric current: ampere (A)

• Luminous intensity: candela (cd)

Metric System: Prefix Multipliers

Prefix multipliers are used to express multiples or fractions of base units. For example, kilo (k) means 1000 times the base unit, milli (m) means 1/1000 of the base unit.

Temperature Scales: Comparison

Temperature is measured using three main scales: Fahrenheit, Celsius, and Kelvin. Each scale has different reference points for freezing and boiling of water, and only Kelvin has no negative values.

• Fahrenheit: Water freezes at 32°F, boils at 212°F.

• Celsius: Water freezes at 0°C, boils at 100°C.

• Kelvin: Water freezes at 273 K, boils at 373 K; absolute zero is 0 K.

Temperature Calculations

Conversions between temperature scales use specific equations:

• To convert Celsius to Kelvin: $K = \text{Celsius} + 273.15$

• To convert Celsius to Fahrenheit: $F = (\text{Celsius} \times \frac{9}{5}) + 32$

• To convert Fahrenheit to Celsius: $C = (\text{Fahrenheit} - 32) \times \frac{5}{9}$

Significant Figures and Measurements

Significant figures reflect the precision of a measurement. Conversion factors are treated as exact values and have infinite significant figures.

• Exact values: Defined quantities (e.g., 1 inch = 2.54 cm, 100 pennies = $1).

Significant Figure Rules

Rules for determining significant figures:

• All nonzero digits are significant (e.g., 536 has three significant figures).

• Zeroes between nonzero digits are significant (e.g., 6703 has four significant figures).

• Leading zeroes are not significant (e.g., 0.0043 has two significant figures).

• Trailing zeroes after a decimal point are significant (e.g., 45.00 has four significant figures).

• Trailing zeroes before an implied decimal point are ambiguous; scientific notation clarifies significance.

Precision of Laboratory Glassware

When measuring liquids, the last digit is estimated between marked divisions. The meniscus should be read at eye level for accuracy.

Significant Figures in Calculations

Mathematical operations affect the reporting of significant figures:

• Multiplication and division: The answer has the same number of significant figures as the least precise value.

• Addition and subtraction: The answer is reported to the smallest decimal place present in the input values.

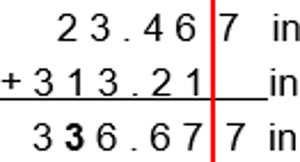

Addition Example

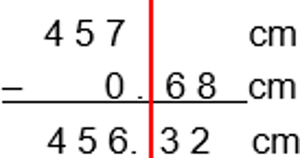

Subtraction Example

Complex Calculation Example

Reliability of Measurements: Precision, Accuracy, and Uncertainty

Measurement reliability is described by:

• Precision: Closeness of repeated measurements.

• Accuracy: Closeness to the true value.

• Uncertainty: The estimated range within which the true value lies.

Quantitative Measurement Errors

• Systematic (Determinate) Error: Consistent deviation in one direction.

• Random (Indeterminate) Error: Unpredictable variation, equally likely to be high or low.

Density: An Intensive Physical Property

Density is defined as mass per unit volume and is an intensive property, independent of the amount of substance.

• Formula: $\text{Density} = \frac{\text{Mass}}{\text{Volume}}$

• Mass and volume are extensive properties, dependent on the amount.

• Density of liquids and gases changes with temperature.

Introduction to Energy and Its Units

Energy is the capacity to do work, and is involved in all physical and chemical changes.

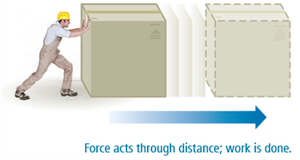

• Work: Action of a force applied through a distance.

• Electrostatic force: Push or pull on charged objects.

Energy Overview

Energy is classified as:

• Kinetic energy: Energy of motion.

• Potential energy: Energy due to position or composition.

• Energy can be converted between forms (e.g., chemical to mechanical).

Energy Units and Conversion Factors

• Calorie (cal): Heat needed to raise 1 g of water by 1°C. $1\,\text{cal} = 4.184\,\text{J}$

• Kilocalorie (kcal): $1\,\text{kcal} = 1000\,\text{cal} = 4184\,\text{J}$

• Joule (J): SI unit of energy. $1\,\text{kJ} = 1000\,\text{J}$

• Calorie (Cal): Food calorie, $1\,\text{Cal} = 1\,\text{kcal}$

• Kilowatt-hour (kWh): Used for electrical energy.

Energy Terminology

The First Law of Thermodynamics states that energy is conserved in the universe.

• System: The part under study (e.g., reaction or phase change).

• Surroundings: Everything outside the system.

• Universe: System + surroundings.

Exothermic vs. Endothermic Processes

• Exothermic: System loses heat; energy decreases in the system, increases in surroundings. Heat is negative.

• Endothermic: System gains heat; energy increases in the system, decreases in surroundings. Heat is positive.

Dimensional Analysis: Strategy for Solving Problems

Dimensional analysis is a method for converting units using conversion factors:

• Arrange conversion factors so units cancel appropriately.

• Conversion factor: Fraction with units to convert from on the bottom, units to convert to on top.

• String multiple conversion factors as needed.

Practice Problem: Unit Conversion Example

Convert 1.76 yards to centimeters using dimensional analysis:

• Sort information: Given (1.76 yards), Find (centimeters).

• Strategize: Use conversion factors for yards to meters, meters to centimeters.

Practice Problem: Unit Conversion with Powers

Calculate the displacement (volume) of a 5.70-L engine in cubic inches. For cubic units, cube the conversion factors.

Practice Problem: Density as a Conversion Factor

Find the mass of jet fuel given its volume and density. Use density to convert between volume and mass, then convert grams to kilograms.

Strategy for Solving Chemistry Problems

Follow these steps for problem solving:

1. Sort: Identify given and find quantities.

2. Strategize: Devise a plan using conversion factors or equations.

3. Solve: Perform calculations, paying attention to significant figures and unit cancellation.

4. Check: Ensure units and magnitude are reasonable.

Summary Table: SI Base Units

Quantity	SI Unit	Symbol
Length	meter	m
Mass	kilogram	kg
Time	second	s
Temperature	kelvin	K
Amount of substance	mole	mol
Electric current	ampere	A
Luminous intensity	candela	cd

Summary Table: Common Metric Prefixes

Prefix	Symbol	Multiplier
kilo	k	103
centi	c	10-2
milli	m	10-3
micro	μ	10-6
nano	n	10-9
mega	M	106

Summary Table: Energy Units and Equivalents

Unit	Equivalent
1 cal	4.184 J
1 kcal	1000 cal = 4184 J
1 kJ	1000 J
1 Cal (food)	1 kcal = 4184 J

Additional info: Tables and conversion factors are inferred from standard chemistry references and the context of the lecture notes.
