Formal Charge Assignment and Resonance Structure Plausibility for HCNO

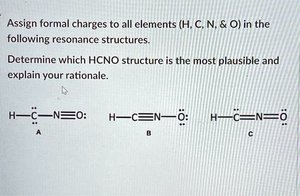

Q8. Assign formal charges to all elements (H, C, N, O) in the following resonance structures of HCNO. Determine which structure is most plausible and explain your rationale.

Background

Topic: Resonance Structures and Formal Charge

This question tests your understanding of how to assign formal charges to atoms in different resonance structures and how to evaluate which resonance form is most plausible based on formal charge distribution and chemical reasoning.

Key Terms and Formulas

• Formal Charge: The charge assigned to an atom in a molecule, calculated as:

$\text{Formal charge} = (\text{Valence electrons}) - (\text{Nonbonding electrons}) - \frac{1}{2}(\text{Bonding electrons})$

• Resonance Structure: Different possible Lewis structures for a molecule that differ only in the arrangement of electrons.

• Plausibility: Resonance forms are more plausible when formal charges are minimized and placed on atoms that can best accommodate them (e.g., negative charge on more electronegative atoms).

Step-by-Step Guidance

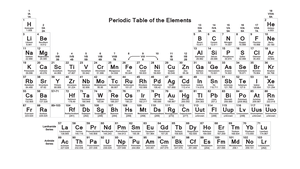

1. For each resonance structure (A, B, C), identify the number of valence electrons for H, C, N, and O using the periodic table. For example, H = 1, C = 4, N = 5, O = 6.



2. Count the number of nonbonding (lone pair) electrons and bonding electrons for each atom in each structure. Bonding electrons are shared in bonds; nonbonding electrons are lone pairs.

3. Apply the formal charge formula for each atom in each structure. For example, for carbon in structure A: $\text{Formal charge}_\text{C} = 4 - (\text{nonbonding electrons}) - \frac{1}{2}(\text{bonding electrons})$

4. Repeat the calculation for all atoms (H, C, N, O) in each resonance structure (A, B, C). Write down the formal charges next to each atom.

5. Compare the formal charge distributions for each structure. Consider which structure has the lowest formal charges and places negative charges on the most electronegative atoms (like O).

Try solving on your own before revealing the answer!
