Intermolecular Forces and Their Role in Solids, Liquids, Gases, and Solutions

Study Guide - Smart Notes

Tailored notes based on your materials, expanded with key definitions, examples, and context.

Structure Determines Properties

Phases of Matter and Intermolecular Forces

The physical state of a substance—solid, liquid, or gas—is determined by the magnitude of intermolecular forces (IMFs) and the available thermal energy. IMFs are the attractions and repulsions between atoms and molecules, and their strength dictates whether a substance exists as a solid, liquid, or gas under given conditions.

Gas: Particles have complete freedom of motion, are far apart, and IMFs are very weak. Gases are compressible and expand to fill their container.
Liquid: Particles are closely packed but can move around. IMFs are stronger than in gases, making liquids incompressible and able to flow.
Solid: Particles are packed closely together in fixed positions. IMFs are strongest, making solids incompressible and often crystalline.

Example: Water exists as ice (solid), liquid water, or steam (gas) depending on temperature and IMFs.

Water molecules in liquid state Water molecules in solid state (ice)

Intermolecular Forces (IMFs)

IMFs vs. Chemical Bonds

IMFs are much weaker than the covalent or ionic bonds that hold atoms together within molecules. However, they are crucial for determining melting points, boiling points, solubility, and the structure of biological molecules.

Covalent bonds: Strong, hold atoms together within molecules.
IMFs: Weak, hold molecules together in condensed phases.

Covalent bond vs. intermolecular attraction in HCl IMF energy scale: 20 to 30 kJ/mol

Types of Intermolecular Forces

Classification and Properties

The type and strength of IMFs depend on three main properties:

Presence of charge (ion-dipole)
Polarity (dipole-dipole, hydrogen bonding)
Molar mass (London dispersion)

Ion-Dipole Forces

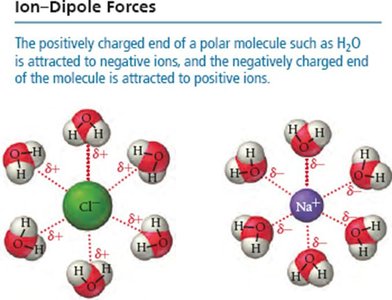

Ion-dipole forces occur between ions and polar molecules. They are especially important in determining the solubility of ionic compounds in water.

Example: Na+ and Cl- ions surrounded by water molecules.

Ion-dipole interactions between water and ions

Dipole-Dipole Forces

Dipole-dipole forces occur between polar molecules with permanent dipoles. The strength of these forces increases with the polarity of the molecules.

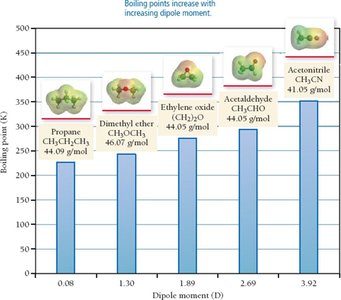

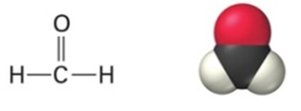

Example: Formaldehyde (CH2O) vs. Ethane (C2H6)—formaldehyde has higher boiling and melting points due to dipole-dipole interactions.

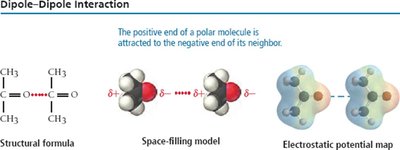

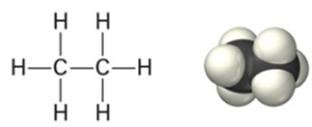

Dipole-dipole interaction diagram Formaldehyde structure and model Ethane structure and model Dipole-dipole interaction raising boiling and melting points

Hydrogen Bonding

Hydrogen bonding is a particularly strong type of dipole-dipole interaction, occurring when hydrogen is bonded to N, O, or F. It significantly affects the properties of water, DNA, and other molecules.

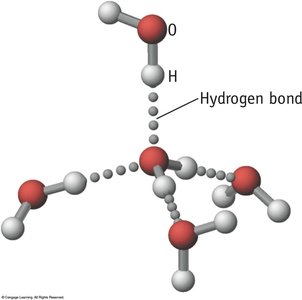

Example: Water forms a network of hydrogen bonds, leading to high surface tension, capillary action, and the flotation of ice.

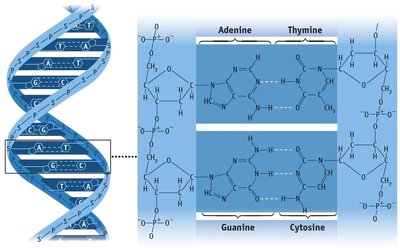

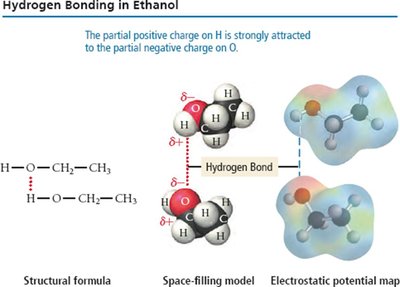

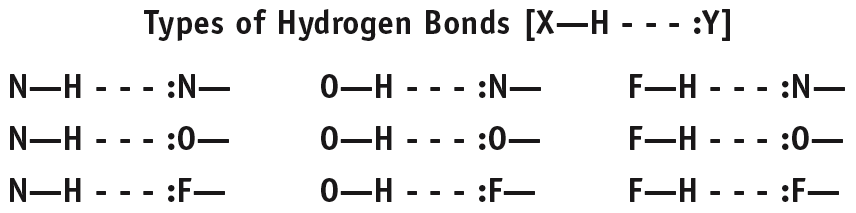

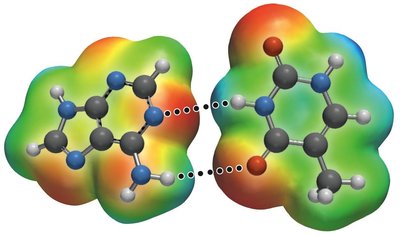

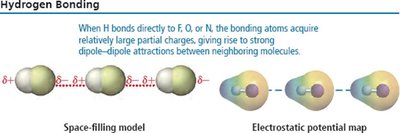

Hydrogen bonding diagram Types of hydrogen bonds Hydrogen bonding in water (ice lattice) Hydrogen bonding in water (density graph) Hydrogen bonding in ice (open lattice) Hydrogen bonding in ethanol Ethanol space-filling model Dimethyl ether space-filling model Hydrogen bonding in DNA (A&T pairs) Hydrogen bonding in DNA (G&C pairs)

London Dispersion Forces

London dispersion forces (also called van der Waals forces) are present in all molecules and atoms, arising from temporary fluctuations in electron distribution. They are the only IMFs in nonpolar molecules.

Strength increases with molar mass and polarizability.

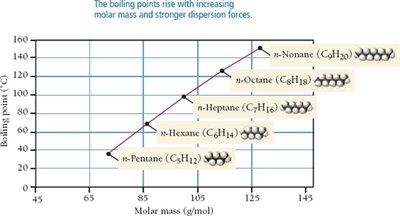

Example: Noble gases and hydrocarbons show increasing boiling points with increasing molar mass.

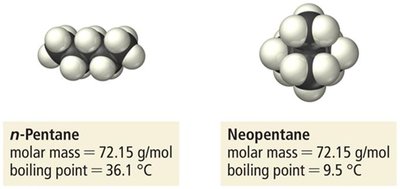

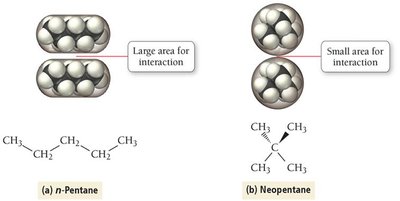

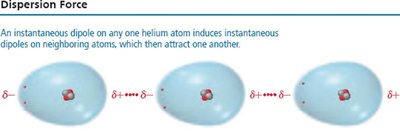

Dispersion force diagram n-Pentane vs. Neopentane boiling points Surface area for interaction in n-pentane vs. neopentane Boiling points vs. molar mass for hydrocarbons

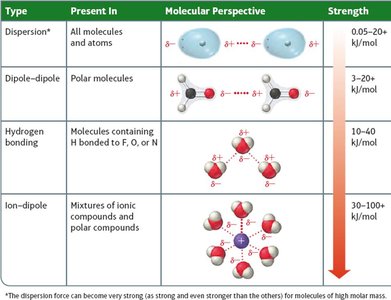

Summary Table: Types of Intermolecular Forces

Type	Present In	Molecular Perspective	Strength
Dispersion	All molecules and atoms	Temporary dipoles	0.05–20 kJ/mol
Dipole–Dipole	Polar molecules	Permanent dipoles	3–20 kJ/mol
Hydrogen Bonding	Molecules with H bonded to F, O, or N	Strong dipole–dipole	10–40 kJ/mol
Ion–Dipole	Mixtures of ions and polar compounds	Ion and dipole interaction	30–100+ kJ/mol

Summary table of intermolecular forces

IMFs and Solubility

Solubility and Miscibility

Solubility depends on the compatibility of IMFs between solute and solvent. "Like dissolves like"—polar substances dissolve in polar solvents, nonpolar substances in nonpolar solvents. Miscible liquids mix without separating; immiscible liquids do not mix.

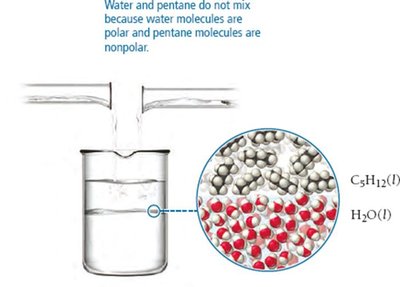

Example: Water (polar) and pentane (nonpolar) are immiscible due to differing IMFs.

Water and pentane immiscibility

Induced Dipole Forces

Polar molecules can induce temporary dipoles in nonpolar molecules, allowing some mixing (e.g., O2 in water, I2 in ethanol).

Example: Water's dipole induces a dipole in O2, enabling O2 to dissolve in water.
Example: Ethanol induces a dipole in I2, allowing I2 to dissolve in ethanol.

Dipole-induced dipole interaction: water and O2 Ethanol induces dipole in I2

Properties Associated with the Liquid State

Viscosity, Surface Tension, and Capillary Action

IMFs influence several properties of liquids:

Viscosity: Resistance to flow; increases with stronger IMFs and higher molar mass, decreases with temperature.
Surface Tension: Tendency to minimize surface area; stronger IMFs lead to higher surface tension.
Capillary Action: Movement of liquid up a thin tube due to adhesive and cohesive forces.

Viscosity and IMFs Surface tension: molecules at surface

Summary

Intermolecular forces are fundamental to understanding the properties of solids, liquids, gases, and solutions. They determine phase behavior, solubility, boiling and melting points, and many other physical properties. Mastery of IMFs is essential for predicting and explaining chemical phenomena in general chemistry.
